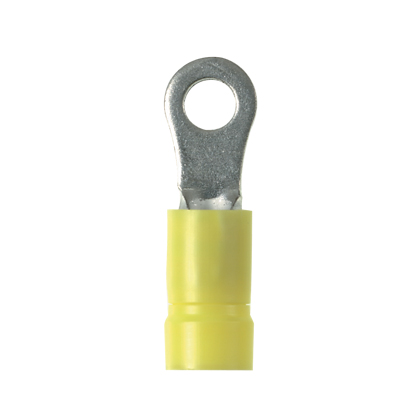

Panduit® PV12-10HDR-L PV-HDR Heavy Duty Insulated Ring Terminal, 16 to 12 AWG Conductor, 1.08 in L, Copper, Yellow
Ring Lugs
415710
MFG #: PV12-10HDR-L
Panduit®
141.28000
/ ea
Panduit® Pan-Term® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - C-TMPV12-6HDR-A41281--ENG.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet 1 URL - Panduit_PV12_10HDR_L_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Tech Drawing 1 URL - Panduit_PV12_10HDR_D_Technical_Drawing.pdf(Tech Drawing 1 URL)
- Tech Drawing URL - 10965_5L1IK6ERNHJUWSBQ.pdf(Tech Drawing URL)
- Tech Drawing URL - 98421329.pdf(Tech Drawing URL)
- Features
| Vinyl insulated |
| Funnel entry barrel configuration |
| Ring tongue design assures a secure connection in high vibration applications |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Insulation support helps to prevent wire damage in bending applications |
| Manufactured from stock 56 percent thicker than a standard NO 16 - 14 AWG terminal for use in heavy-duty application |
| Insulation housing is marked with "HDR" to signify heavy-duty ring |
| Crimp termination |
| Free hanging (in-line) mounting |
| Suitable for use with CT-600-A, CT-1550, CT-1551, CT-2500 |
| 50 Pieces/Bottle, Standard package |
