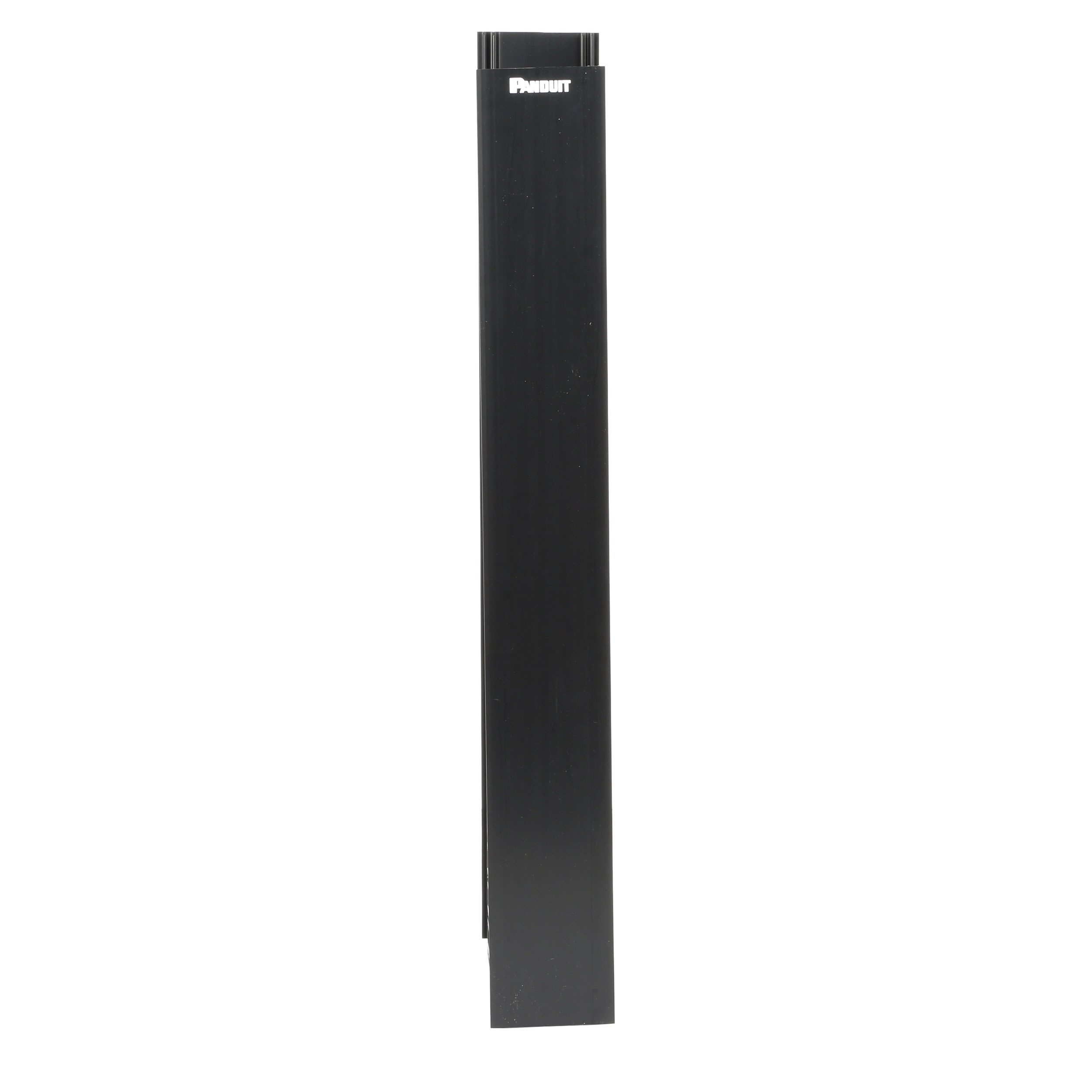

Panduit® NetRunner™ WMPV45E Vertical Cable Manager With Hinged Cover, Rack Mount, ABS/Polycarbonate/PVC, Black
Rack/Cabinet Cable Organizers
336741
MFG #: WMPV45E
Panduit®
388.88000
/ ea
The vertical cable manager shall be capable of mounting to EIA racks to manage cables on the front and rear of the rack. The manager shall be molded out of plastic and possess cable management fingers and pass through holes. The fingers shall provide integral bend radius control and be spaced so that the gaps between the fingers align with EIA rack spaces. The pass through holes shall provide bend radius control and slots that can be used for securing of cable straps. The vertical manager shall have a dual hinged cover that can be opened to the left or right 110 degrees. The manager shall be able to accept wire retainers that can be snapped on to the cable management fingers.
- Full Eng Drawing URL - WMPV45ERTW(10409-03-00).pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_OXBMVNALTI8G91FU.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - C-RKWMPV45E--ENG.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-RKCM308--RevF--ENG.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10965_M2DGK34L0TYB79O6.pdf(Spec Sheet URL)
- Spec Sheet URL - 10965_U2CT45PRLJQY091D.pdf(Spec Sheet URL)
- Spec Sheet URL - 10965_V6SPKNIFDCTUE50B.pdf(Spec Sheet URL)
- Spec Sheet URL - D-RKSP145--WW-ENG-2PostRackVertMgr-W.pdf(Spec Sheet URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/9/99/999/9999/111279999.mp4(Video)
- Tech Drawing URL - 10965_AIYVOBT7MCJQKGD6.pdf(Tech Drawing URL)
- Tech Drawing URL - 10965_ZYEL1TVX9WI3N48D.pdf(Tech Drawing URL)
- Tech Drawing URL - 10965_FRYEJMXT6AIP7D14.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/YhNvWiaslcs(Video)
- Features
Bend radius fingers align with rack spaces to support cables as they transition to the vertical pathway, pass through holes maintain cable bend radius ensuring network performance and reliability |
Large finger opening each accommodates up to 54 Cat 6 cables eliminating the need to remove fingers for cable routing speeding installation and maintenance |
Dual hinged cover can be opened 110 degrees to the left or right to provide complete access to the cables inside the vertical pathway |
Integral cable retainers on the end of each finger to help contain cables within each rack unit to simplify installation and maintenance |
Provide a cost effective solution that organize, manage, and protect network cabling in telecommunication rooms and data centers |
Cable management fingers simplify cable routing during installation and maintenance |
19 in, 23 in rack system width |
45 rack spaces, front and rear |
4.9 in W x 83 in H x 12 in D |
(2) 22.5RU sections |
4 in wide |
