Panduit® CT-1123 Controlled Cycle Ferrule End Sleeve Crimping Tool, 26 to 8 AWG, 22 to 12 AWG
Cable & Wire Crimpers
422667
MFG #: CT-1123
Panduit®
410.18000
/ ea

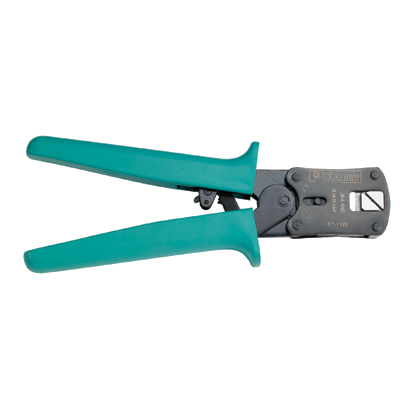

Panduit® Crimping Tool, Controlled Cycle Ferrule End Sleeve, 26 to 8 AWG, 22 to 12 AWG, 7.67 in Overall Length, Comfort Grip/Ergonomic Handle, Steel Body, 2.47 in W x 0.89 in D
- Full Eng Drawing URL - C-TMCT-1525--ENG.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_3SOF4UVKCWN5BT6Y.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_XOIRFPWKAQ14603L.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - C-TMCT-1123--ENG.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-TMCT-1123-CT-1104-PA25121A01--REV02--ENG.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - C-TMCT-1123--ENG.pdf(Spec Sheet URL)
- Tech Bulletin URL - 10965_HUZ548R6WOSCLAX3.pdf(Tech Bulletin URL)
- Tech Bulletin URL - Panduit_CD_525_Technical_Bulletin.pdf(Tech Bulletin URL)
- Tech Drawing URL - 10965_7C4S3O5KYRHG6TX2.pdf(Tech Drawing URL)
- Video - http://www.panduit.com/heiler/Videos/M-TMBS10-D-SDOC--169-ENG.mp4(Video)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/8/08/608/4608/110114608.mp4(Video)
- Applications
- Features
| Pan-Term Ferrules |
| Provides a wider inside diameter to allow ferrules to fit easily over THK insulated wire, ideal for use in the U.S and for use with flexible wire |
| Controlled cycle mechanism assures high quality, consistent terminations |
| Ergonomic tool design assures operator comfort, safety and performance |
| Multi-position locator facilitates a high quality repeatable crimp |
| The controlled cycle crimp tool has a square profile and is designed for strength and durability |
| It is intended for 26 to 8 AWG (0.14 to 10 sq-mm) insulated and non-insulated single wire ferrules and 22 to 12 AWG (0.5 to 4 sq-mm) insulated twin wire ferrules |
| The crimp tool is 7.67 in L and 2.78 in W with a closed handle |
| The crimp tool weighs 10.6 oz and has an ergonomic design that assures operator comfort, safety and performance |
| Manual release lever for opening jaws before full crimp cycle when necessary |
