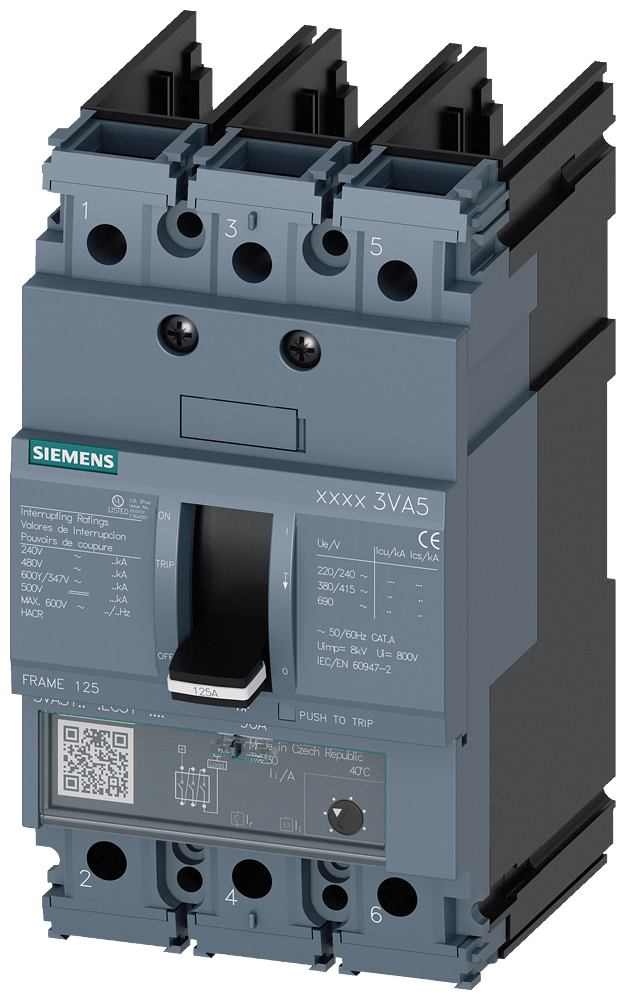

Murray 3VA5110-4EC31-0AA0 3VA5 Molded Case Circuit Breaker, 690 VAC/500 VDC, 125 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
1002844
MFG #: 3VA5110-4EC31-0AA0
Siemens
447.39000
/ ea
Murray Molded Case Circuit Breaker, Series: 3VA5, 690 VAC/500 VDC, 125 A, 50/60 Hz, 25 kA Interrupt, Thermal Magnetic Trip, 3 Poles, IP40, Fixed Mount, -25 to 70 deg C, 5.51 in H x 3 in W x 3.68 in D
- 3D Rendering URL - 3D_G_I202_XX_35048V.stp(3D Rendering URL)
- Brochure URL - SIE_PC_3VACatalog.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 2D_G_I202_XX_35049V.dxf(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(WEB SELLER HOME PAGE URL)
- Owners Manual URL - SIE_OM_3VA_A5E03456789060-05.pdf(Owners Manual URL)
- User Manual URL - SIE_IS_3VACircuitBreaker_109740259_A5E03456789060.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/2BlqUSedOt8(Video)
- Video - https://www.youtube.com/embed/J_LVTjU58ek(Video)
- WEB CATALOG URL - Siemens_3VA5110_1BB31_0AA0_Catalog.pdf(WEB CATALOG URL)
- Wiring Diagram URL - G_I202_XX_42238V.dxf(Wiring Diagram URL)
- WEB SPEC SHEET URL - 3VA51104EC310AA0_en.pdf(WEB SPEC SHEET URL)
- Features
| The new 3VA5 molded case circuit breakers reliably perform all the tasks required for circuit protection |
| Compact design |
| Modular and easy to fit internal accessories with diverse functions |
| When it comes to operation, functionality and installation, the new 3VA UL series of molded case circuit breakers is a fully integrated system |
| Without connection |
