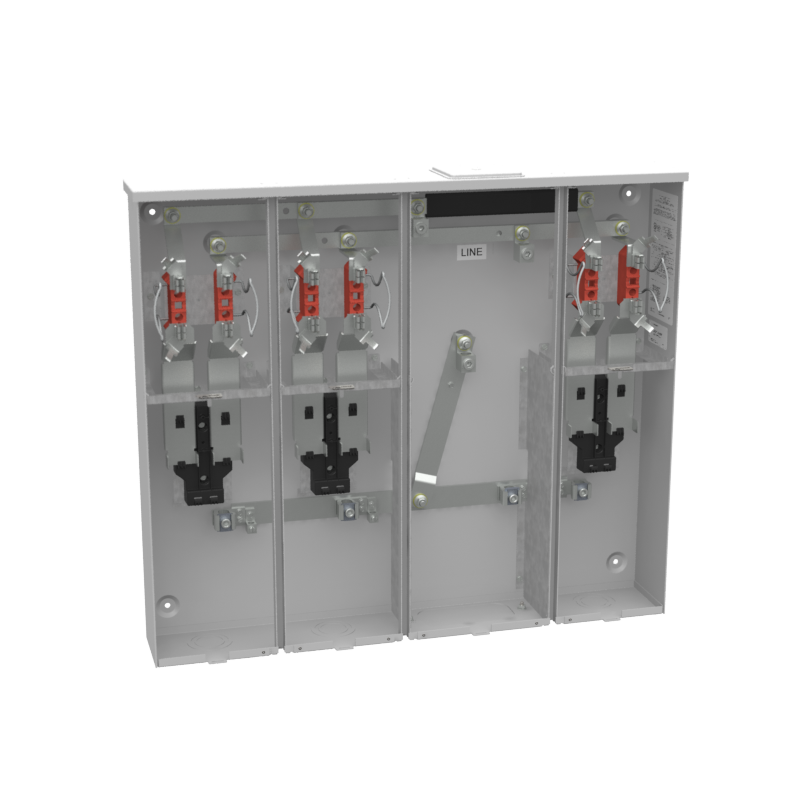

Milbank® U5903-X-KK-K1-PED Ringless Multi-Position Meter Socket, 240 VAC, 125 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
825590
MFG #: U5903-X-KK-K1-PED
Milbank®
896.18000
/ ea
Milbank® Multi-Position Meter Socket, Ringless, 240 VAC, 125 A, 1 Phase, 60 Hz, Overhead/Underground Feed, 4 Jaws, 1/0 AWG to 350 kcmil Wire, Plate, Large Hub, Surface Mount, NEMA 3R, 30 in H x 34-5/9 in W x 5-1/8 in D
- Catalog URL - Milbank_U1748_O_5T9_WI_Catalog.pdf(Catalog URL)
- https://milbankworks.com/(Seller Home Page URL)
- Install Instructions 1 URL - Important_Notice.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11028_ID-SPE-v1-784572631670_SS.pdf(Spec Sheet URL)
- Warranty URL - 11028_64327H0AWL8U59BY.pdf(Warranty URL)
- Warranty URL - Milbank_Warranty.pdf(Warranty URL)
- Applications
- Features
| Meter Socket With Main |
| G90 galvanized steel with powder coat enclosure finish |
| Single mechanical line side and single mechanical load side |
| 3 positions |
| Horn Bypass |
| 22 KA short circuit current rating |
| Pedestal mounting provision |
| CU/AL connector |
| 1/0 - 350 kcmil (line)/6 AWG - 350 kcmil (load) |
| Horizontal position |
| Closing plate hub |
