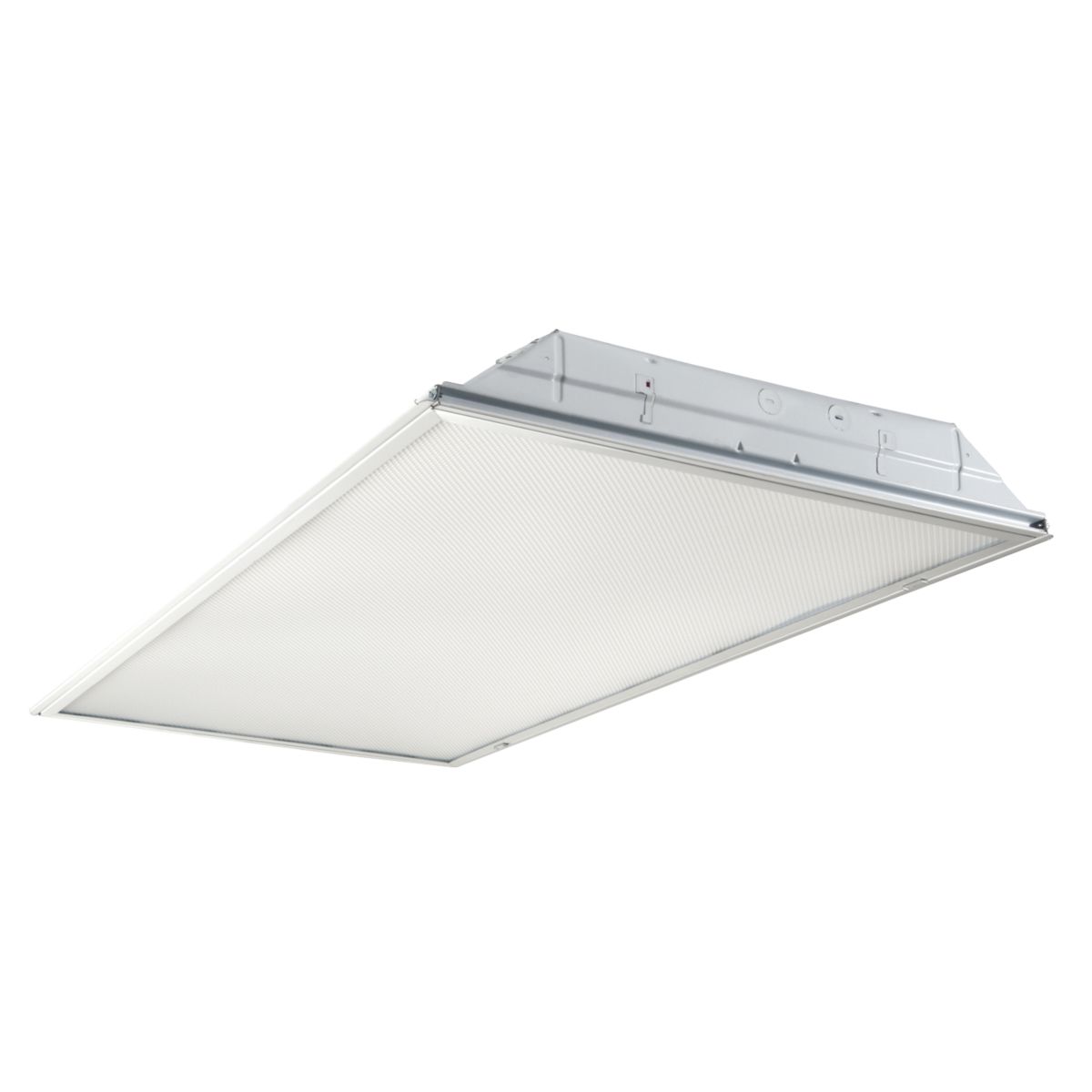

Metalux 24GR-LD5-85-F1-UNV-L835-CD1-U GRLED General Purpose Standard Static Commercial Recessed Troffer, LED 5.0 Lamp, 66 W Fixture, 120 t
Metalux 24GR-LD5-85-F1-UNV-L835-CD1-U GRLED General Purpose Standard Static Commercial Recessed Troffer, LED 5.0 Lamp, 66 W Fixture, 120 t
SKUPDW~12836776
MFGR #24GR-LD5-85-F1-UNV-L835-CD1-U
Price Not Available
Metalux Commercial Recessed Troffer, General Purpose Standard Static, Series: GRLED, 120 to 277 VAC, 66 W Fixture, 0.237 A, LED 5.0 Lamp, 122 Lumens/W Light Output, Grid/Lay-In Recessed Trim, 60000 hr Average Life, 3500 K Color Temperature, 80 CRI, 0 to 10 VDC Dimmable Ballast, Prismatic Frosted Acrylic Lens, 8500 Lumens, Ceiling Mounting, Cold Rolled Steel Housing Material, 4 ft L x 2 ft W x 3-1/2 in H Dimensions
Metalux Commercial Recessed Troffer, General Purpose Standard Static, Series: GRLED, 120 to 277 VAC, 66 W Fixture, 0.237 A, LED 5.0 Lamp, 122 Lumens/W Light Output, Grid/Lay-In Recessed Trim, 60000 hr Average Life, 3500 K Color Temperature, 80 CRI, 0 to 10 VDC Dimmable Ballast, Prismatic Frosted Acrylic Lens, 8500 Lumens, Ceiling Mounting, Cold Rolled Steel Housing Material, 4 ft L x 2 ft W x 3-1/2 in H Dimensions
Amperage Rating 0.237 (at 277V) Application Commercial Offices, Schools, Hospitals, Retail Merchandising, Many Other, General Purpose Light ARRA Compliant C Buy American Compliant C Catalog Number 24GR-LD5-85-F1-UNV-L835-CD1-U Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 20.0000 lb Gross Weight per Pack Metric 9.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9405116020 Height 48.94 in Height [Metric] 124.3025 cm Length 24.31 in Length [Metric] 61.7550 cm Material Steel Mounting Recessed Number Of Lamps 1 Style (blank) Sub Brand GRLED Series Type Recessed Static UNSPSC 39111534 UPC 11 08008384897 UPC 12 080083848973 Width 3.62 in Width [Metric] 9.2075 cm Brand Metalux® Manufacturer Cooper Lighting Solutions Lamp Type LED Voltage Rating 120 to 277 V Commercial Offices, Schools, Hospitals, Retail Merchandising, Many Other, General Purpose Light Available in 2' x 4', 2' x 2' and 1' x 4' Up to 140 Lumens/W for maximum energy savings versus fluorescent troffers Class 2, constant driver with standard 0 to 10 VDC dimming Lumen maintenance TM21 rated up to L89 at 60000 hr 0.237 A at 277 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 0.237 (at 277V) |
| Application | Commercial Offices, Schools, Hospitals, Retail Merchandising, Many Other, General Purpose Light |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 24GR-LD5-85-F1-UNV-L835-CD1-U |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 20.0000 lb |
| Gross Weight per Pack Metric | 9.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9405116020 |
| Height | 48.94 in |
| Height [Metric] | 124.3025 cm |
| Length | 24.31 in |
| Length [Metric] | 61.7550 cm |
| Material | Steel |
| Mounting | Recessed |
| Number Of Lamps | 1 |
| Style | (blank) |
| Sub Brand | GRLED Series |
| Type | Recessed Static |
| UNSPSC | 39111534 |
| UPC 11 | 08008384897 |
| UPC 12 | 080083848973 |
| Width | 3.62 in |
| Width [Metric] | 9.2075 cm |
| Brand | Metalux® |
| Manufacturer | Cooper Lighting Solutions |
| Lamp Type | LED |
| Voltage Rating | 120 to 277 V |
| Commercial Offices, Schools, Hospitals, Retail Merchandising, Many Other, General Purpose Light |
| Available in 2' x 4', 2' x 2' and 1' x 4' |
| Up to 140 Lumens/W for maximum energy savings versus fluorescent troffers |
| Class 2, constant driver with standard 0 to 10 VDC dimming |
| Lumen maintenance TM21 rated up to L89 at 60000 hr |
| 0.237 A at 277 VAC |
