T&B® (Thomas & Betts)
Marrette® 330-BP XTP High Quality Twist-On Wire Connector, Non-Winged Shell, Live Action Spring, 22 to 14 AWG

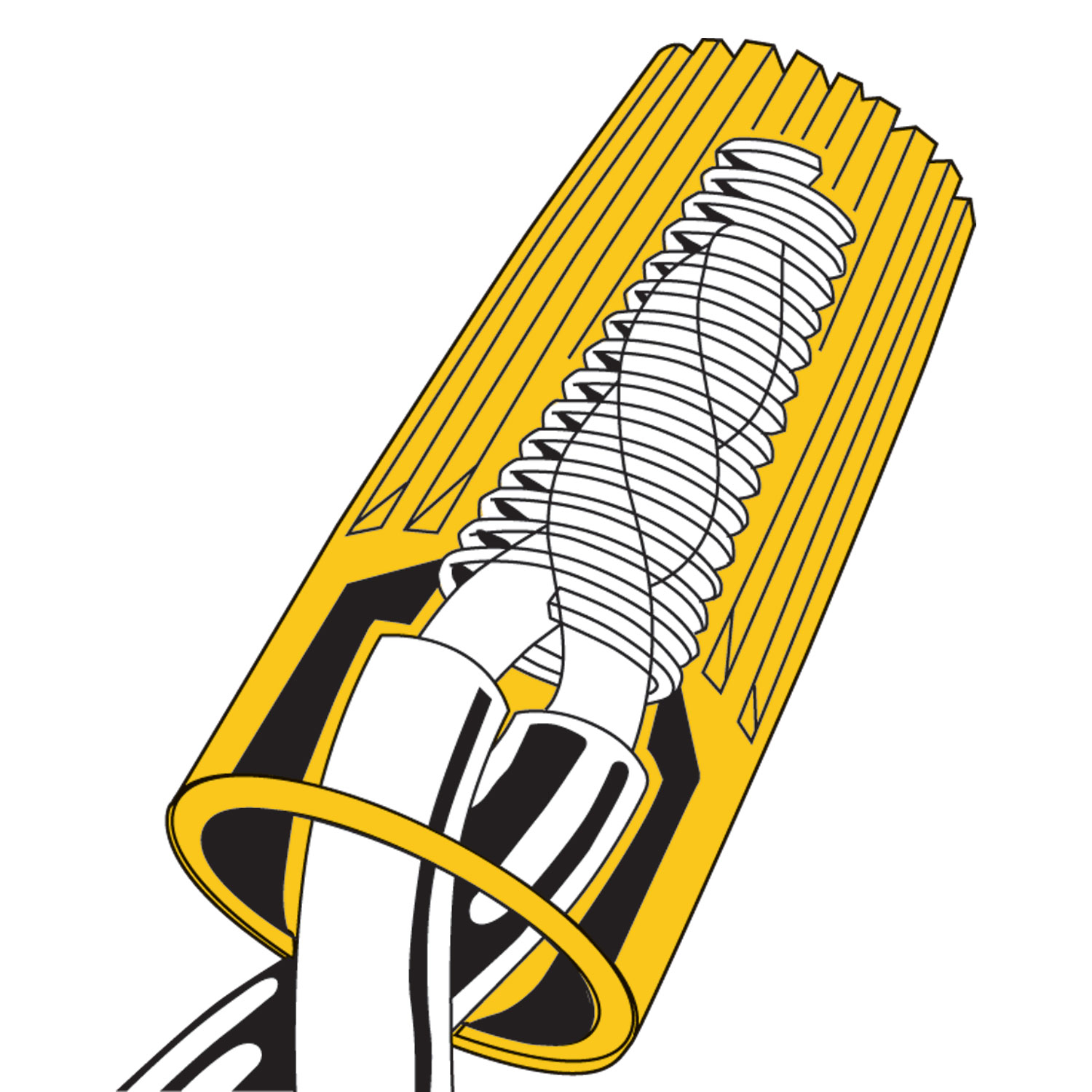

Custom_Product_Images_Illustration
T&B® (Thomas & Betts)
Marrette® 330-BP XTP High Quality Twist-On Wire Connector, Non-Winged Shell, Live Action Spring, 22 to 14 AWG
SKU69735
MFGR #330-BP
Your Cost: $0.10/ea($100.04 / m)
Marrette® invented the pressure wire connector in 1914 and remains the class of the field and the standard by which all pressure wire connectors are judged.
Marrette® invented the pressure wire connector in 1914 and remains the class of the field and the standard by which all pressure wire connectors are judged.
Alternate Catalog Number 7TBA008930R0010 ARRA Compliant C Brand T&B® (Thomas & Betts) Buy American Compliant C Catalog Number 330-BP Color Blue Country of Origin CA Currency USD EU RoHS Indicator C Finish Matte Gross Weight Per Pack 1.8800 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 0.01 in Height [Metric] 0.0254 cm Item Group 19 Item Group 2 19F Length 0.01 in Length [Metric] 0.0254 cm Manufacturer Thomas & Betts Material Polypropylene Returnable A Shell Style Non-Winged Size Min 1 #22 + 1 #20, Max 3 #16 Spring Type Live Action Standard UL E9809 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA Certified Stock Status NONSTOCK Sub Brand Marrette® Temperature Rating 105 °C Type High Quality UNSPSC 39121445 UPC 11 06739600870 UPC 12 067396008706 Voltage Rating 300 VAC Width 0.01 in Width [Metric] 0.0254 cm Wire Size 22 to 14 AWG Wire Type Solid Copper/Stranded The only wire connector to offer a non-winged, variable-volume live-action spring in the connector. Wire connector to offer a non-winged, variable-volume live-action spring in the connector Deep, wide throat ensures full insulation coverage Threaded entry helps guide large wire bundles into the spring chamber Exclusive live action variable volume spring expands to accommodate more wires with less twisting effort, compared to other connectors with a fixed spring design Handles broader range of wire connection combinations Connectors finger friendly design offers a truer grip for less hand fatigue during repeated use High grade tough, durable polypropylene outer shell prevents blooming or blossoming of the connector sidewall and unique copper-coated spring helps resist corrosion Outer shell maintains a constant moisture level, reducing the likelihood of the connector becoming dry, brittle and subsequently cracked due to extreme heat or cold Coated with 100% pure copper, which reduces the corrosion common to tin- and zinc-coated products Posi-Grip® surface combines a matte finish with closely spaced, deep grooves for superior twisting power, even when hands are greasy or damp Color coded for quick and easy size selection Round wire spring construction that gives a positive conductor bite (1) 22 AWG, (1) 20 AWG, (3) 16 AWG wire combinations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 7TBA008930R0010 |
| ARRA Compliant | C |
| Brand | T&B® (Thomas & Betts) |
| Buy American Compliant | C |
| Catalog Number | 330-BP |
| Color | Blue |
| Country of Origin | CA |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Matte |
| Gross Weight Per Pack | 1.8800 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 0.01 in |
| Height [Metric] | 0.0254 cm |
| Item Group | 19 |
| Item Group 2 | 19F |
| Length | 0.01 in |
| Length [Metric] | 0.0254 cm |
| Manufacturer | Thomas & Betts |
| Material | Polypropylene |
| Returnable | A |
| Shell Style | Non-Winged |
| Size | Min 1 #22 + 1 #20, Max 3 #16 |
| Spring Type | Live Action |
| Standard | UL E9809 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA Certified |
| Stock Status | NONSTOCK |
| Sub Brand | Marrette® |
| Temperature Rating | 105 °C |
| Type | High Quality |
| UNSPSC | 39121445 |
| UPC 11 | 06739600870 |
| UPC 12 | 067396008706 |
| Voltage Rating | 300 VAC |
| Width | 0.01 in |
| Width [Metric] | 0.0254 cm |
| Wire Size | 22 to 14 AWG |
| Wire Type | Solid Copper/Stranded |
| The only wire connector to offer a non-winged, variable-volume live-action spring in the connector. |
| Wire connector to offer a non-winged, variable-volume live-action spring in the connector |
| Deep, wide throat ensures full insulation coverage |
| Threaded entry helps guide large wire bundles into the spring chamber |
| Exclusive live action variable volume spring expands to accommodate more wires with less twisting effort, compared to other connectors with a fixed spring design |
| Handles broader range of wire connection combinations |
| Connectors finger friendly design offers a truer grip for less hand fatigue during repeated use |
| High grade tough, durable polypropylene outer shell prevents blooming or blossoming of the connector sidewall and unique copper-coated spring helps resist corrosion |
| Outer shell maintains a constant moisture level, reducing the likelihood of the connector becoming dry, brittle and subsequently cracked due to extreme heat or cold |
| Coated with 100% pure copper, which reduces the corrosion common to tin- and zinc-coated products |
| Posi-Grip® surface combines a matte finish with closely spaced, deep grooves for superior twisting power, even when hands are greasy or damp |
| Color coded for quick and easy size selection |
| Round wire spring construction that gives a positive conductor bite |
| (1) 22 AWG, (1) 20 AWG, (3) 16 AWG wire combinations |
