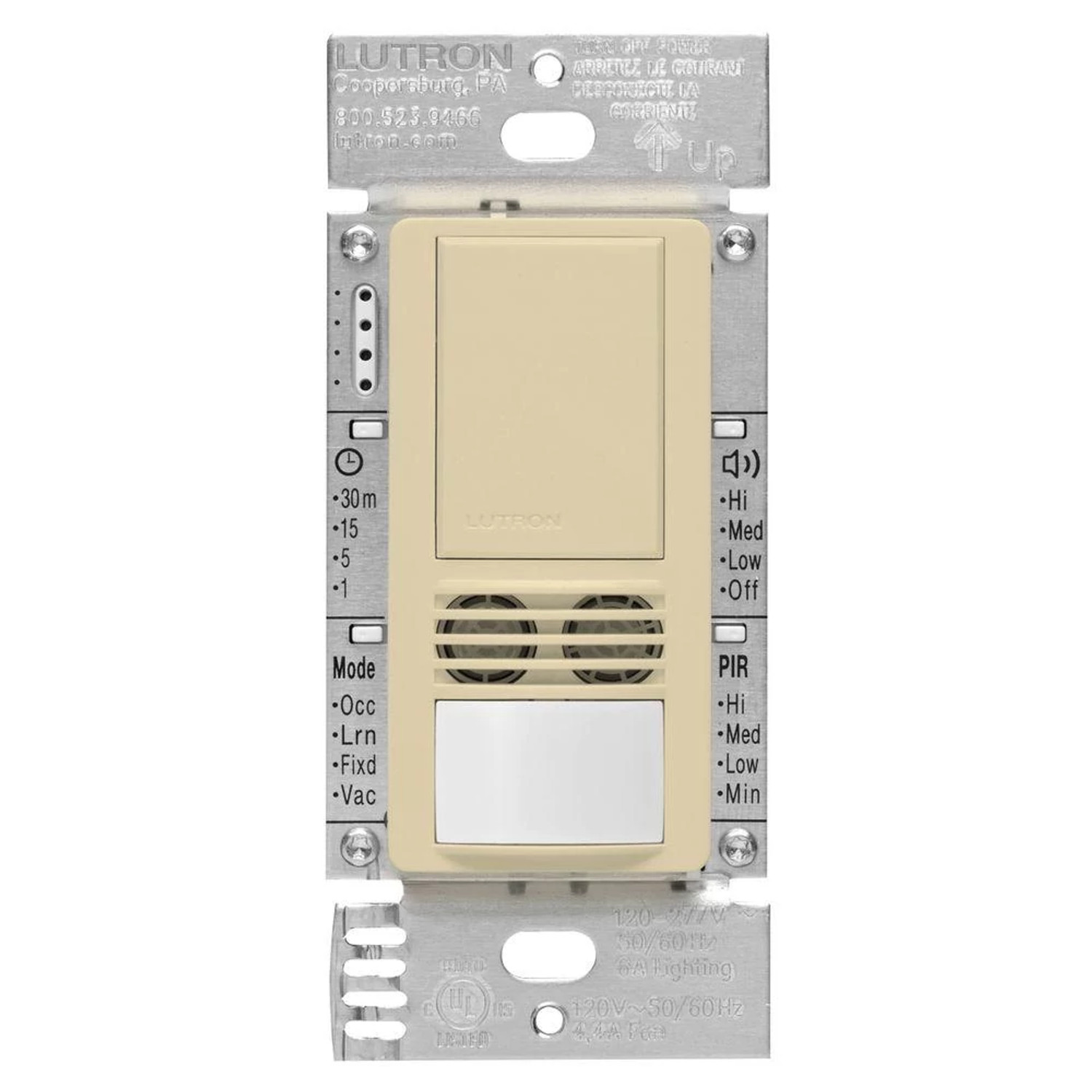

Maestro® MS-A102-IV Single-Circuit Dual Technology Sensor Switch, 120 to 277 VAC, Occupancy Sensor, 400 to 900 sq-ft Coverage, 180 deg, Wallbox Mount
Wall Mount Occupancy Sensors
1029435
MFG #: MS-A102-IV
Lutron®
103.00000
/ ea
The Maestro Dual Technology (Dual Tech) Occupancy Sensor Switch applies our exclusive XCTT Technology to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing. This product also includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings. The Maestro Dual Tech Occupancy Sensor Switch is available in single-circuit and dual-circuit versions.
- Catalog 1 URL - Lutron_MIR-600THW-WH_Catalog.pdf(Catalog 1 URL)
- Data Sheet 1 URL - Lutron_MSA102IV_Data_Sheet.pdf(Data Sheet 1 URL)
- http://www.lutron.com(Seller Home Page URL)
- Install Instructions 1 URL - 10977_SP1LVJ30KW9XCE5D.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 10977_VCH5SINQD6EM3PKY.pdf(Spec Sheet URL)
- Tech Drawing URL - 10977_FCO6QZSJWP4B1HEM.pdf(Tech Drawing URL)
- Video - https://lutron.widen.net/content/ljl01nfr11/mp4/In-wall-sensors_2021.mp4?w=2048(Video)
- Warranty URL - 10977_P2YDMHFGQEUK34RS.pdf(Warranty URL)
- Applications
- Features
| Lighting Control |
| Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing. Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings. XCT technology for major, minor, fine, and very fine motion detection. 180 degree field-of-view. Tamper-resistant PIR lens. Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage. Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm. Sensor learns user's preferred light level over time. Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min. Can be set to auto-on/auto-off or manual-on/auto-off per circuit. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent. Switches fan loads at 120 V. Does not require neutral wiring. |
| The single-circuit versions can be used to meet many of the title 20/24, ASHRAE 90.1 and IECC code requirements such as inautomatic shutoff in |
| XCT™ technology for major, minor, fine, and very fine motion detection |
| Tamper-resistant PIR lens |
| Up to 900 sq-ft major and 400 sq-ft minor motion coverage |
| Occupancy models can be set to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF per circuit |
| 6 A of lighting load per circuit at 120 to 277 VAC, 4.4 A (1/6 HP) of fan load per circuit at 120 VAC |
| Sensitivity adjustment: PIR (Hi, Med, Low, Min), Ultrasonic (Hi, Med, Low, Off) |
| Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent |
| Smart Ambient Light Detection (ALD) and Fixed Ambient Light Detection |
| Adaptive zero-cross switching algorithm for extended relay life |
| Product ground current does not exceed 0.5 mA |
| 0 to 90% humidity, non-condensing, indoor use only |
| Single pole only |
