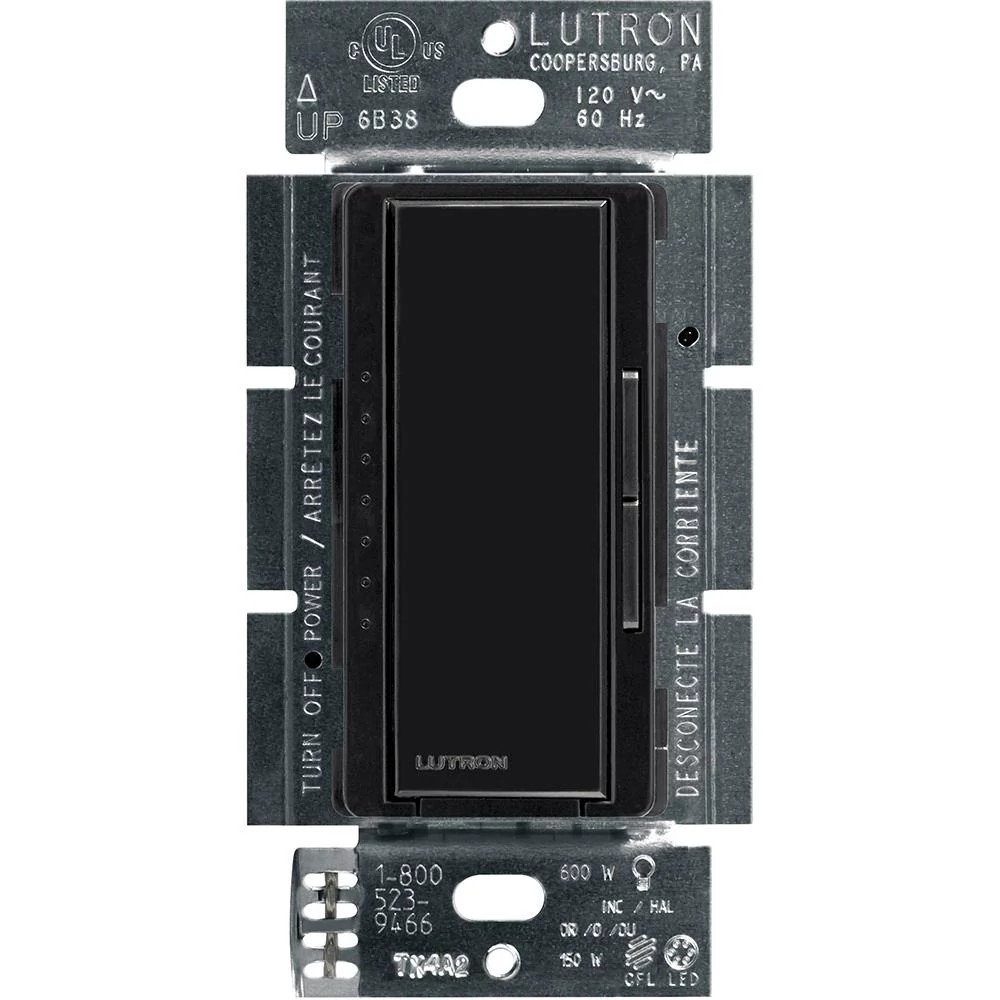

Maestro® C.L® MACL-153M-BL 3-Way Multi-Location Dimmer Switch, 120 VAC, 1 Pole, Black
Custom_Product_Images_Illustration
Maestro® C.L® MACL-153M-BL 3-Way Multi-Location Dimmer Switch, 120 VAC, 1 Pole, Black
SKU682218
MFGR #MACL-153M-BL
Your Cost: $42.75/ea
C.L dimmers are UL listed for controlling a broad range of dimmable CFLs and LEDs. They offer more reliable dimming performance over standard dimmers when dimming CFLs and LEDs, and also provide full range dimming for incandescent and halogen bulbs. C.L dimmers enable you to future-proof your lighting control for new bulbs.
C.L dimmers are UL listed for controlling a broad range of dimmable CFLs and LEDs. They offer more reliable dimming performance over standard dimmers when dimming CFLs and LEDs, and also provide full range dimming for incandescent and halogen bulbs. C.L dimmers enable you to future-proof your lighting control for new bulbs.
Actuator Tapswitch Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number MACL-153M-BL Connection Screw Terminal Connection Type Screw Terminal Control Tap On/Off Country of Origin CN Currency USD Dimensions 4-11/16 in H x 2-15/16 in W x 5/16 in D Enclosure Plastic Enclosure Type NEMA SSL-7A Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only. EU RoHS Indicator N Face Material Metal;Plastic Frequency Rating 50-60 Hz Gross Volume Per Pack 0.04 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Height 4.50 in Height [Metric] 11.4300 cm Insulation Plastic Lamp Type CFL/LED Length 2.30 in Length [Metric] 5.8420 cm Material Metal/Plastic Mounting Wallbox Mounting Type Surface Number Of Poles 1 Operating Temperature 32 to 104 °F Power Rating 150 W Series MACL-153M Size 4.69 x 2.94 in Standard UL, CSA, NOM Standards UL 1472, CSA C22.2 184.1, NOM Certified Sub Brand Maestro Switch Type Tapswitch Temperature Rating 0 to 40 °C Type Digital fade dimmer, multi-location/3-way/single-pole UNSPSC 39122206 UPC 11 78427601069 UPC 12 784276010696 Wattage 600 W Width 2.30 in Width [Metric] 5.8420 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Amperage Rating 1.25 Color Black Operation Mode ON/OFF Voltage Rating 120 VAC Lighting Control Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents. Large tapswitch with a rocker-style dimmer for a standard designer wallplate opening Advanced dimming technology designed for compatibility with a broader range of high effiecacy bulbs Low-end adjustment to accommodate a wide range of bulbs No neutral required for retrofit applications Tapswitch returns load to previous level Can be used in single-pole, multi-location (using MA-R), or 3-way mechanical switch1 applications Coordinating Claro® and Stainless Steel wallplates available separately 100% factory tested Gloss finish Wall Box mounting Programming allows customized functions Adjustable low end trim
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Tapswitch |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | MACL-153M-BL |
| Connection | Screw Terminal |
| Connection Type | Screw Terminal |
| Control | Tap On/Off |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4-11/16 in H x 2-15/16 in W x 5/16 in D |
| Enclosure | Plastic |
| Enclosure Type | NEMA SSL-7A |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| EU RoHS Indicator | N |
| Face Material | Metal;Plastic |
| Frequency Rating | 50-60 Hz |
| Gross Volume Per Pack | 0.04 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Height | 4.50 in |
| Height [Metric] | 11.4300 cm |
| Insulation | Plastic |
| Lamp Type | CFL/LED |
| Length | 2.30 in |
| Length [Metric] | 5.8420 cm |
| Material | Metal/Plastic |
| Mounting | Wallbox |
| Mounting Type | Surface |
| Number Of Poles | 1 |
| Operating Temperature | 32 to 104 °F |
| Power Rating | 150 W |
| Series | MACL-153M |
| Size | 4.69 x 2.94 in |
| Standard | UL, CSA, NOM |
| Standards | UL 1472, CSA C22.2 184.1, NOM Certified |
| Sub Brand | Maestro |
| Switch Type | Tapswitch |
| Temperature Rating | 0 to 40 °C |
| Type | Digital fade dimmer, multi-location/3-way/single-pole |
| UNSPSC | 39122206 |
| UPC 11 | 78427601069 |
| UPC 12 | 784276010696 |
| Wattage | 600 W |
| Width | 2.30 in |
| Width [Metric] | 5.8420 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Amperage Rating | 1.25 |
| Color | Black |
| Operation Mode | ON/OFF |
| Voltage Rating | 120 VAC |
| Lighting Control |
| Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents. |
| Large tapswitch with a rocker-style dimmer for a standard designer wallplate opening |
| Advanced dimming technology designed for compatibility with a broader range of high effiecacy bulbs |
| Low-end adjustment to accommodate a wide range of bulbs |
| No neutral required for retrofit applications |
| Tapswitch returns load to previous level |
| Can be used in single-pole, multi-location (using MA-R), or 3-way mechanical switch1 applications |
| Coordinating Claro® and Stainless Steel wallplates available separately |
| 100% factory tested |
| Gloss finish |
| Wall Box mounting |
| Programming allows customized functions |
| Adjustable low end trim |
