MOLD,CABLE TO GRD ROD,VERT ELL HORZ CABLE

Weld Metal Molds
1110426 MFG #: GRT161H
nVent ERICO
153.65000 / ea
ERICO CADWELD exothermically welded connections are engineered to provide a permanent, molecular bond that will not loosen or corrode. The connections are designed to maintain for the life of the conductor and/or installation. The ERICO CADWELD connection has a current carrying capacity equal to or greater than that of the conductor and will withstand repeated fault currents without failing during operation. Once completed, installers can clearly ensure quality assurance by visual inspection of the new connection. With reliable connections that consistently exceeded IEEE® 837 2014 EMF test requirements as certified by an independent lab, ERICO CADWELD is the ultimate welded connection.
QTY
  • Features
ERICO CADWELD standard graphite molds are designed and engineered for thousands of connection styles
Forms a permanent, low resistance connection
Provides a molecular bond
ERICO CADWELD exothermic connections are rated with the same current capacity as the conductor
Portable installation equipment with no external source of power required
6 AWG Stranded Tap Concentric Cable

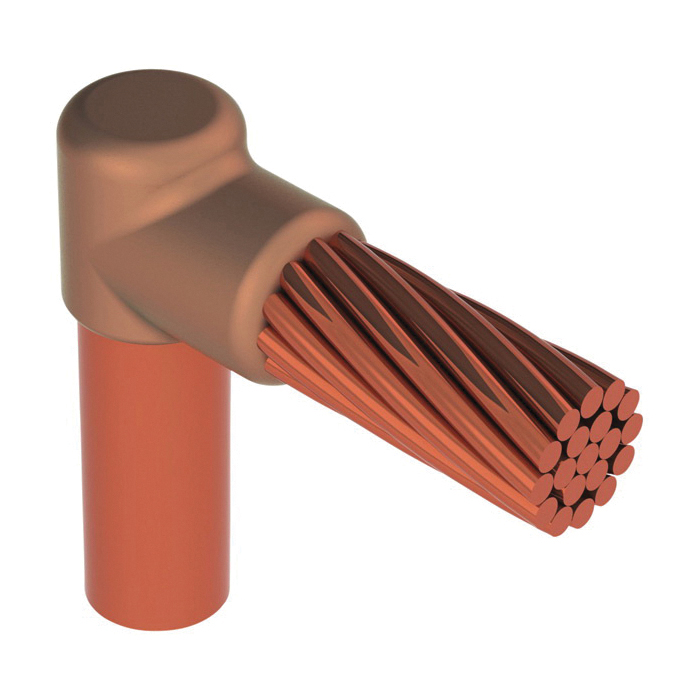

Single horizontal cable to top of vertical ground rod
14.3 mm Actual Ground Rod Dia, 4.7 mm Conductor Nominal Outer Dia
Installers can be easily trained to make ERICO CADWELD Exothermic Connections
Connections can be visually inspected
Copper Cable
