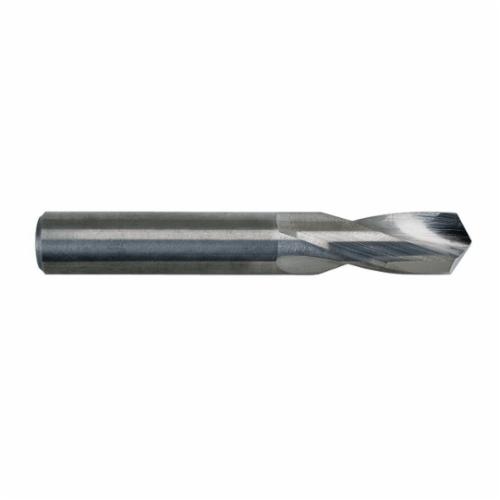

M.A. Ford® Twister® GP/226 General Purpose Screw Machine Drill, 1.2 mm Dia x 30 mm L, Solid Carbide, Bright
Custom_Product_Images_Illustration
M.A. Ford® Twister® GP/226 General Purpose Screw Machine Drill, 1.2 mm Dia x 30 mm L, Solid Carbide, Bright
SKU871971
MFGR #22604720
Your Cost: $5.94/ea
List: M.A. Ford® Screw Machine Drill, General Purpose, Series: Twister® GP/226, 1.2 mm Dia, 30 mm Overall Length, 3XD Cutting Depth, Spiral Flute, 8 mm Flute Length, Straight Shank, 118 deg Point, Facet Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal Materials
M.A. Ford® Screw Machine Drill, General Purpose, Series: Twister® GP/226, 1.2 mm Dia, 30 mm Overall Length, 3XD Cutting Depth, Spiral Flute, 8 mm Flute Length, Straight Shank, 118 deg Point, Facet Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Bright, Applicable Materials: Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel and Non-Ferrous Metal Materials
Catalog Number 22604720 Country of Origin US Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Drill Diameter Measurement System Imperial/Metric Flute Length 8 mm Flute Type Spiral Number of Flutes 2 Overall Length 30 mm Point Angle 118 ° Point Type 4-Facet Series 226 Shank Type Straight Standards DIN 6539 Type General Purpose UNSPSC 23241605 UPC 11 69760426032 UPC 12 69760426032 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Applicable Materials Steel, Stainless Steel, Cast Iron, Aluminum, Bronze and Magnesium Alloy and Non-Ferrous Materials Finish Bright Material Solid Carbide Designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels High feed rates with excellent chip evacuation Accurate hole size in a wide range of materials Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of M.A. Ford® drills Minimal wander produces maximum precision, productivity and drill life Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life Designed to allow high feed rates with good chip flow Four facet drill point minimizes drill wander and assures accurately sized holes Shorter length reduces deflection and vibration, increases drill accuracy and improves tool life Spiral flutes are constructed of a higher flute angle to remove chips easier It is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 22604720 |
| Country of Origin | US |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 8 mm |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Overall Length | 30 mm |
| Point Angle | 118 ° |
| Point Type | 4-Facet |
| Series | 226 |
| Shank Type | Straight |
| Standards | DIN 6539 |
| Type | General Purpose |
| UNSPSC | 23241605 |
| UPC 11 | 69760426032 |
| UPC 12 | 69760426032 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Aluminum, Bronze and Magnesium Alloy and Non-Ferrous Materials |
| Finish | Bright |
| Material | Solid Carbide |
| Designed for maximum flexibility and performance when drilling a wide variety of materials, ranging from soft, non-ferrous materials to hardened steels |
| High feed rates with excellent chip evacuation |
| Accurate hole size in a wide range of materials |
| Pre-drilling and follow-up operations can often be eliminated because of the quality and performance of M.A. Ford® drills |
| Minimal wander produces maximum precision, productivity and drill life |
| Web-thinned drill designs are available for reduced power requirements, lower temperatures and extended drill life |
| Designed to allow high feed rates with good chip flow |
| Four facet drill point minimizes drill wander and assures accurately sized holes |
| Shorter length reduces deflection and vibration, increases drill accuracy and improves tool life |
| Spiral flutes are constructed of a higher flute angle to remove chips easier |
| It is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
