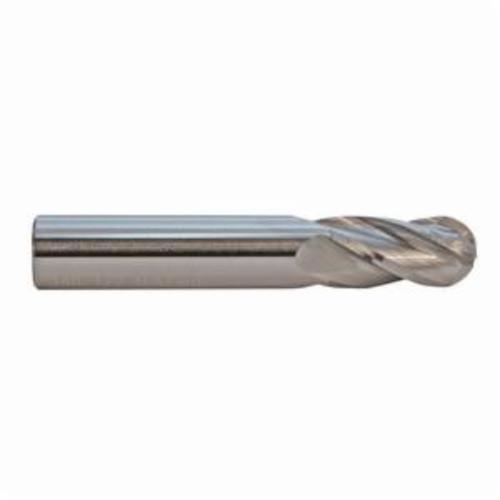

M.A. Ford® TuffCut® GP 14050000A Ball Nose Center Cutting End Mill, 1/2 in, 1 in Max Depth of Cut, 4 Flutes, 1/2 in Shank, 3 in OAL
M.A. Ford® TuffCut® GP 14050000A Ball Nose Center Cutting End Mill, 1/2 in, 1 in Max Depth of Cut, 4 Flutes, 1/2 in Shank, 3 in OAL
SKU1064096
MFGR #14050000A
Your Cost: $66.32/ea
List: M.A. Ford® TuffCut® End Mills perform better and last significantly longer than competitive products, minimizing process downtime and maximizing productivity and cost efficiency. Included in our product line are high performance end mills developed for specific applications such as stainless steels and high temperature alloys, hardened steel, titanium, composite material, aluminum and softer alloys.
M.A. Ford® TuffCut® End Mills perform better and last significantly longer than competitive products, minimizing process downtime and maximizing productivity and cost efficiency. Included in our product line are high performance end mills developed for specific applications such as stainless steels and high temperature alloys, hardened steel, titanium, composite material, aluminum and softer alloys.
Catalog Number 14050000A Country of Origin US Cutting Direction Right Hand Helix Angle 30 ° Material Carbide Series 140 Standards ISO 9001:2008 Type Ball Nose Center Cutting UPC 11 69760414026 UPC 12 69760414026 Stock Status NONSTOCK Brand M.A. Ford® Manufacturer M.A. Ford Cutter Diameter 1/2 in Finish ALtima® Coated Length of Cut 1 in Number of Flutes 4 Overall Length 3 in Shank Diameter 1/2 in Manufactured with a full ball radius end Designed for milling fillets or similar rounded corners in the bottom of a cut Applicable for steel, stainless steel, cast iron, special alloys, 35-65Rc hardened steel and non-ferrous metals Whisper blend transition between OD and neck Reduced vibration harmonics Improved part finishes Maintains cutting edge strength and sharpness for improved tool life Slotting at 1X Dia deep ALtima® is the original high performance coating This coating allows tools to be run at higher speeds and feeds in a wide array of materials Also, it allows the option of running tools dry due to the high oxidation temperature of the coating +0.000/-0.003 mm tolerance h10 3100 HV microhardness 2012 deg F maximum service 0.42 friction coefficient
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 14050000A |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Helix Angle | 30 ° |
| Material | Carbide |
| Series | 140 |
| Standards | ISO 9001:2008 |
| Type | Ball Nose Center Cutting |
| UPC 11 | 69760414026 |
| UPC 12 | 69760414026 |
| Stock Status | NONSTOCK |
| Brand | M.A. Ford® |
| Manufacturer | M.A. Ford |
| Cutter Diameter | 1/2 in |
| Finish | ALtima® Coated |
| Length of Cut | 1 in |
| Number of Flutes | 4 |
| Overall Length | 3 in |
| Shank Diameter | 1/2 in |
| Manufactured with a full ball radius end |
| Designed for milling fillets or similar rounded corners in the bottom of a cut |
| Applicable for steel, stainless steel, cast iron, special alloys, 35-65Rc hardened steel and non-ferrous metals |
| Whisper blend transition between OD and neck |
| Reduced vibration harmonics |
| Improved part finishes |
| Maintains cutting edge strength and sharpness for improved tool life |
| Slotting at 1X Dia deep |
| ALtima® is the original high performance coating |
| This coating allows tools to be run at higher speeds and feeds in a wide array of materials |
| Also, it allows the option of running tools dry due to the high oxidation temperature of the coating |
| +0.000/-0.003 mm tolerance h10 |
| 3100 HV microhardness |
| 2012 deg F maximum service |
| 0.42 friction coefficient |
