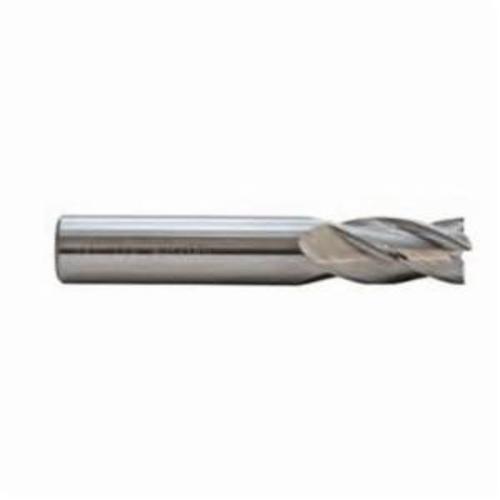

M.A. Ford® TuffCut® GP 11125000C Center Cutting Standard Length Square End End Mill, 1/4 in, 3/4 in Max Depth of Cut, 4 Flutes, 1/4 in Shank, 2-1/2 in OAL
Square End Mills
1034089
MFG #: 11125000C
M.A. Ford®
18.71000
/ ea
M.A. Ford® TuffCut® End Mills perform better and last significantly longer than competitive products, minimizing process downtime and maximizing productivity and cost efficiency. Included in our product line are high performance end mills developed for specific applications such as stainless steels and high temperature alloys, hardened steel, titanium, composite material, aluminum and softer alloys.
- Features
| For aggressive milling of most materials |
| Applicable for steel, stainless steel, cast iron, special alloys, 35-65Rc hardened steel and non-ferrous metals |
| Whisper blend transition between OD and neck |
| Reduced vibration harmonics |
| Improved part finishes |
| Maintains cutting edge strength and sharpness for improved tool life |
| Slotting at 1X Dia deep |
| TiCN is a multi-layer coating |
| Because of the multi-layer composition, TiCN is tougher than TiN, even though TiCN is harder |
| The added toughness of the TiCN coating makes it a good choice for mechanically stressed edges like in end mill applications |
| The higher hardness makes TiCN a good choice for abrasive applications where higher wear resistance is required |
| +0.000/-0.002 in tolerance D1 |
| 3000 HV microhardness |
| 752 deg F maximum service |
| 0.4 friction coefficient |
