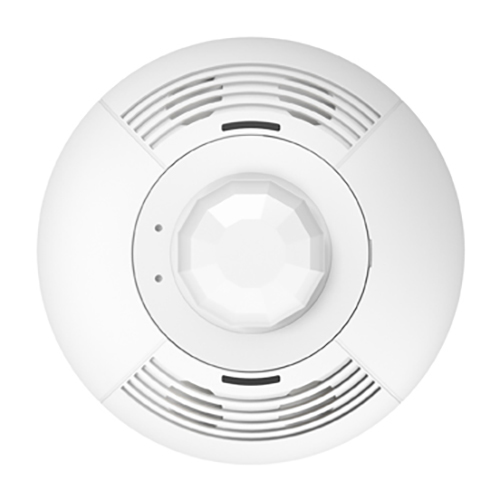

Lutron® LOS-CDT-500-WH LOS-CDT Occupancy Sensor, 20 to 24 VDC, Dual (Ultrasonic and Passive Infrared) Sensor, 500 sq-ft Coverage
Ceiling Mount Occupancy Sensors
442553
MFG #: LOS-CDT-500-WH
Lutron®
170.00000
/ ea
The LOS-CDT series dual technology ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product.
- http://www.lutron.com(Seller Home Page URL)
- Install Instructions URL - 031260a.pdf(Install Instructions URL)
- Spec Sheet URL - LOS-CDT%20Series.pdf(Spec Sheet URL)
- Tech Drawing URL - CADDownloads.aspx(Tech Drawing URL)
- Video - https://www.youtube.com/embed/-wE-N6XBJss(Video)
- Warranty URL - 369-119_Wallbox_Warranty.pdf(Warranty URL)
- Applications
- Features
| Lighting Control |
| Can integrate into Lutron systems or function as a stand-alone control using Lutron power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product. Intelligent, continually adapting sensor. Ultrasonic (US) combined with Passive Infrared (PIR) sensing provides high sensitivity, high noise immunity, and excellent false tripping immunity. The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors. Suited for complex environments that are difficult to control with single-technology sensors. Snap-locks to ceiling-mounted cover plate. Non-volatile memory: settings saved in protected memory are not lost during power outages. 500 ft2 to 200 ft2 (46 m2 to 186 m2) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling. Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. |
| Combines both ultrasonic (US) motion detection for maximum sensitivity and passive infrared (PIR) motion detection for false triggering immunity |
| The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors |
| Intelligent, continually adapting sensor |
| Ultrasonic (US) combined with passive infrared (PIR) sensing provide high sensitivity, high noise immunity and excellent false tripping immunity |
| Suited for complex environments that are difficult to control with single technology sensors |
| Snap locks to ceiling mounted cover plate |
| Non-volatile memory, settings saved in protected memory are not lost during power outages |
| 500 to 2000 sq-ft coverage when mounted on an 8 to 12 ft ceiling |
| Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system |
| Injection molded plastic |
