Littelfuse®

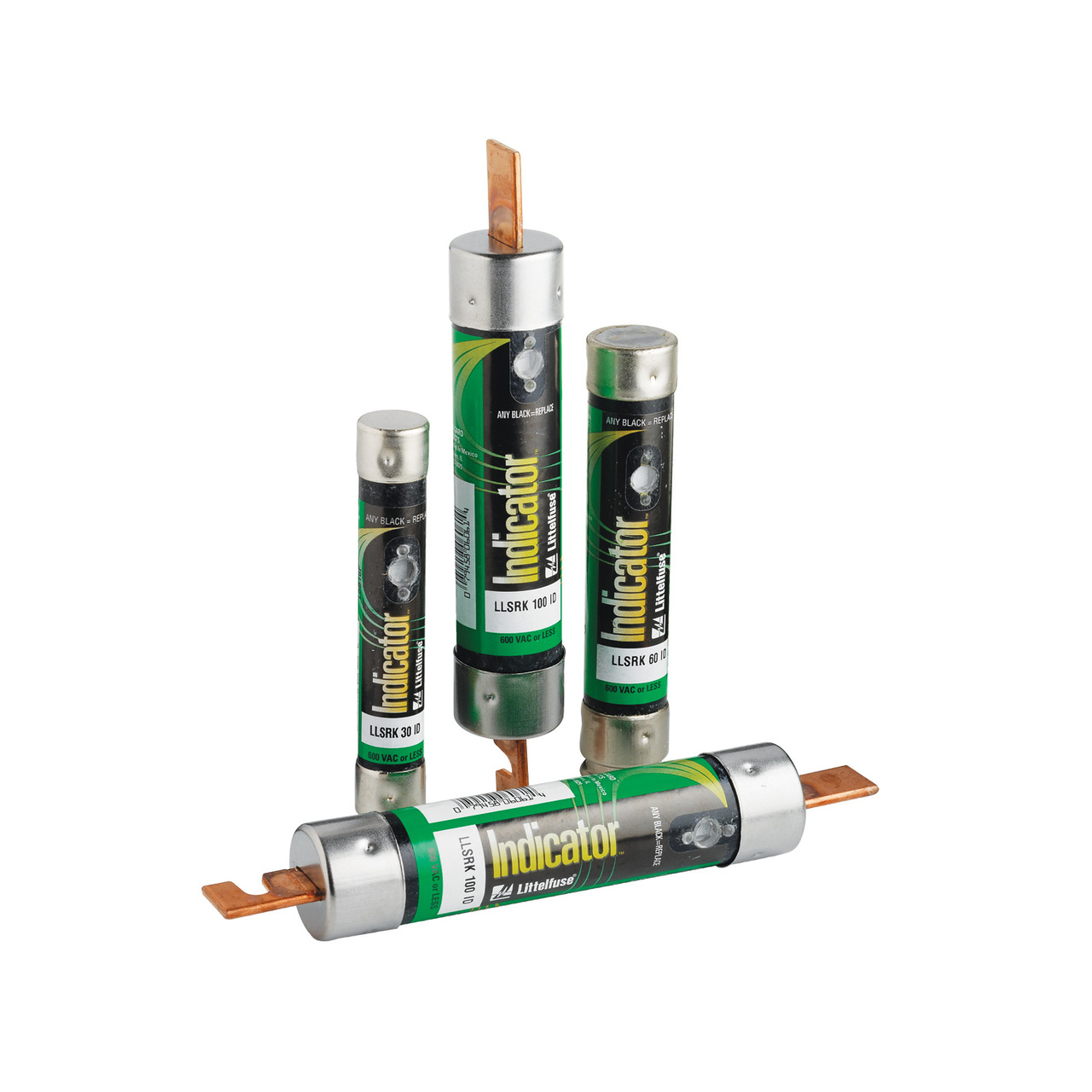

Littelfuse® LLSRK02.5ID POWR-GARD® LLSRK_ID Time Delay Fuse, 2.5 A, 600 VAC, 20 kA at 300 VDC Interrupt, Class RK1
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® LLSRK02.5ID POWR-GARD® LLSRK_ID Time Delay Fuse, 2.5 A, 600 VAC, 20 kA at 300 VDC Interrupt, Class RK1
SKU977080
MFGR #LLSRK02.5ID
Your Cost: $30.47/ea
List: Littelfuse® LLSRK series POWR-PRO™ fuses provide superior overload and short circuit protection for service entrance, main, feeder and general purpose branch circuits up to 600 A. LLSRK series fuses can be installed in existing Class H fuse blocks to upgrade systems containing lower interrupting rating Class H one-time or renewable fuses.
Littelfuse® LLSRK series POWR-PRO™ fuses provide superior overload and short circuit protection for service entrance, main, feeder and general purpose branch circuits up to 600 A. LLSRK series fuses can be installed in existing Class H fuse blocks to upgrade systems containing lower interrupting rating Class H one-time or renewable fuses.
Alternate Catalog Number LSRK02.5TXID Application All general purpose circuits ARRA Compliant N Body Size 2 in H x 3/8 in W Buy American Compliant N Catalog Number LLSRK02.5ID Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 1.8100 lb Gross Weight per Pack Metric 0.82 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Indicating Item Group 079458-8H Series LLSRK_ID Standard Standard 248-12 UL Listed/CSA Standards Standard 248-12UL ListedCSA CertifiedRoHS CompliantPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand LLSRK Series Type Class RK1 UNSPSC 39121627 UPC 11 07945805510 UPC 12 079458055108 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 2.5 A Class RK1 Interrupt Rating 20 kA at 300 VDC Voltage Rating 600 VAC All general purpose circuits Time-Delay Extremely current limiting reduces damage to circuits and equipment under short circuit conditions Stops damaging short circuits faster than any mechanical protective device Reduced costs current limiting design often permits use of readily available, less costly equipment Low resistance design reduces power consumption and utility bills Excellent time delay true dual element construction, with separate non-fatiguing thermally reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly Eliminates needless downtime caused by power surges or equipment demands
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LSRK02.5TXID |
| Application | All general purpose circuits |
| ARRA Compliant | N |
| Body Size | 2 in H x 3/8 in W |
| Buy American Compliant | N |
| Catalog Number | LLSRK02.5ID |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.8100 lb |
| Gross Weight per Pack Metric | 0.82 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Indicating |
| Item Group | 079458-8H |
| Series | LLSRK_ID |
| Standard | Standard 248-12 UL Listed/CSA |
| Standards | Standard 248-12UL ListedCSA CertifiedRoHS CompliantPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | LLSRK Series |
| Type | Class RK1 |
| UNSPSC | 39121627 |
| UPC 11 | 07945805510 |
| UPC 12 | 079458055108 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 2.5 A |
| Class | RK1 |
| Interrupt Rating | 20 kA at 300 VDC |
| Voltage Rating | 600 VAC |
| All general purpose circuits |
| Time-Delay |
| Extremely current limiting reduces damage to circuits and equipment under short circuit conditions |
| Stops damaging short circuits faster than any mechanical protective device |
| Reduced costs current limiting design often permits use of readily available, less costly equipment |
| Low resistance design reduces power consumption and utility bills |
| Excellent time delay true dual element construction, with separate non-fatiguing thermally reversible spring loaded thermal overload element, withstands repeated surges within rated time delay without opening needlessly |
| Eliminates needless downtime caused by power surges or equipment demands |
