Littelfuse®

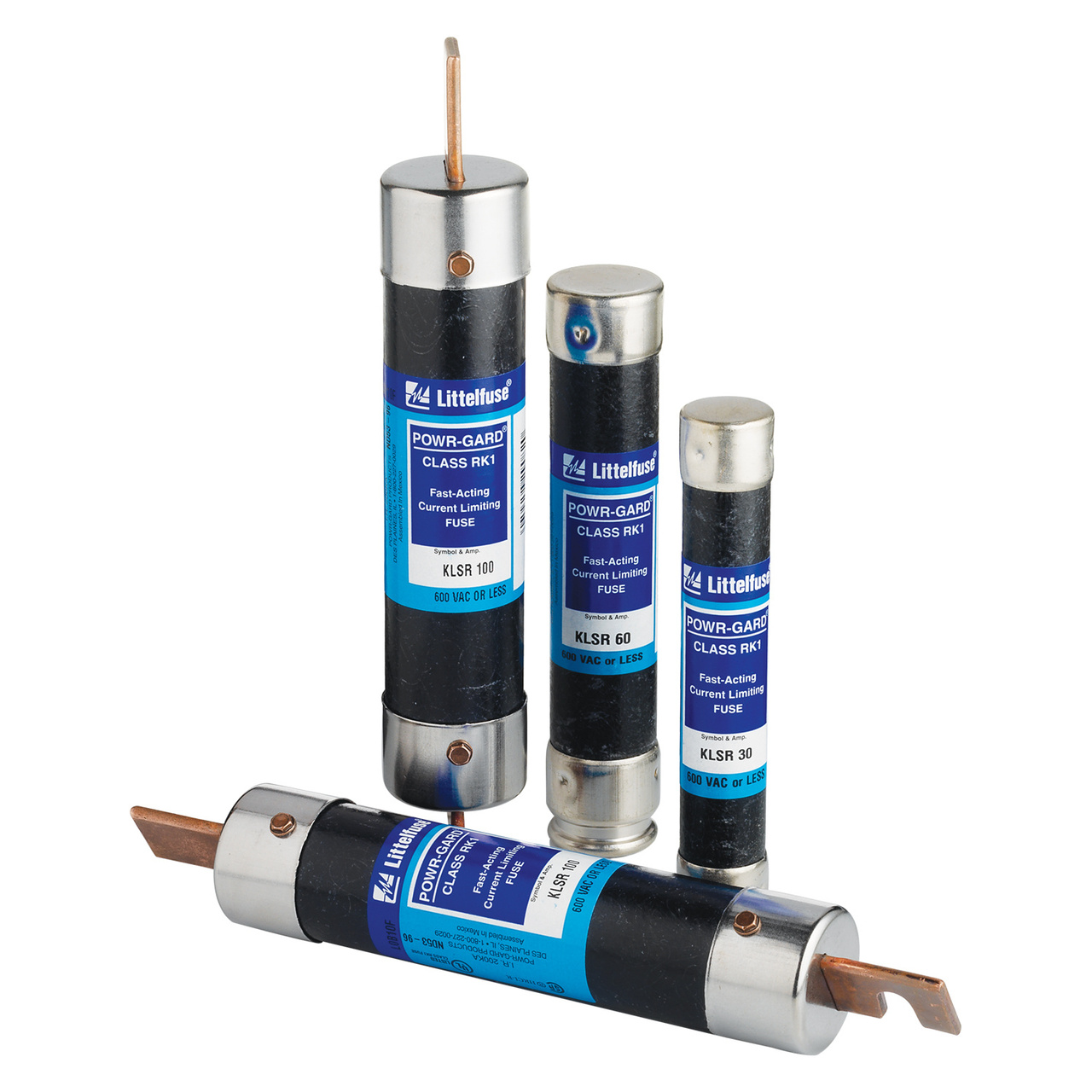

Littelfuse® KLSR175 POWR-GARD® KLSR Current Limiting High Speed Fast Acting Fuse, 175 A, 600 VAC/300 VDC, 200/20 kA Interrupt
Custom_Product_Images_Illustration
Littelfuse®
Littelfuse® KLSR175 POWR-GARD® KLSR Current Limiting High Speed Fast Acting Fuse, 175 A, 600 VAC/300 VDC, 200/20 kA Interrupt
SKU438530
MFGR #KLSR175
Your Cost: $283.70/ea
List: KLSR series RK1 fuses were the earliest type of current-limiting fuse developed. Their single-element, silver link design enables them to provide Fast-Acting overload and short circuit protection. When used to protect inductive loads such as motors, solenoids, and transformers, KLSR series fuses must be greatly oversized to prevent opening the fuses on harmless inrush currents. In such applications, KLSR series fuses may only provide short circuit protection.
KLSR series RK1 fuses were the earliest type of current-limiting fuse developed. Their single-element, silver link design enables them to provide Fast-Acting overload and short circuit protection. When used to protect inductive loads such as motors, solenoids, and transformers, KLSR series fuses must be greatly oversized to prevent opening the fuses on harmless inrush currents. In such applications, KLSR series fuses may only provide short circuit protection.
Alternate Catalog Number KLSR175.X Application small motors/high inrush ARRA Compliant N Body Size 1-27/32 Dia x 9-5/8 in L Buy American Compliant N Catalog Number KLSR175 Country of Origin MX Currency USD Element Single EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 1.2400 lb Gross Weight per Pack Metric 0.56 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-5L Material Melamine Mounting Type Holder Series KLSR Standard Supplemental Protection Standards RoHS CompliantUL 248-12 File No. E81895CSA File No. LR29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD FLM Series Terminal Type Knife Blade Type UL Supplemental UNSPSC 39121609 UPC 11 07945829087 UPC 12 079458290875 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 5 A Body Type Cartridge Class RK1 Interrupt Rating 200/20 kA Voltage Rating 600 VAC/300 VDC small motors/high inrush Time-Delay Extremely current limiting - stops damaging short circuit current faster than any mechanical protective device Fast-acting - provides fast-acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components Reliable interruption of all over currents up to 200000 A Longer equipment life - current limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents Often permits use of readily available, less costly equipment North American style 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating North American style 200 kA RMS symmetrical at 600 VAC/20 kA at 300 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | KLSR175.X |
| Application | small motors/high inrush |
| ARRA Compliant | N |
| Body Size | 1-27/32 Dia x 9-5/8 in L |
| Buy American Compliant | N |
| Catalog Number | KLSR175 |
| Country of Origin | MX |
| Currency | USD |
| Element | Single |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1.2400 lb |
| Gross Weight per Pack Metric | 0.56 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-5L |
| Material | Melamine |
| Mounting Type | Holder |
| Series | KLSR |
| Standard | Supplemental Protection |
| Standards | RoHS CompliantUL 248-12 File No. E81895CSA File No. LR29862PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD FLM Series |
| Terminal Type | Knife Blade |
| Type | UL Supplemental |
| UNSPSC | 39121609 |
| UPC 11 | 07945829087 |
| UPC 12 | 079458290875 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 5 A |
| Body Type | Cartridge |
| Class | RK1 |
| Interrupt Rating | 200/20 kA |
| Voltage Rating | 600 VAC/300 VDC |
| small motors/high inrush |
| Time-Delay |
| Extremely current limiting - stops damaging short circuit current faster than any mechanical protective device |
| Fast-acting - provides fast-acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components |
| Reliable interruption of all over currents up to 200000 A |
| Longer equipment life - current limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents |
| Often permits use of readily available, less costly equipment |
| North American style |
| 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating |
| North American style |
| 200 kA RMS symmetrical at 600 VAC/20 kA at 300 VAC |
