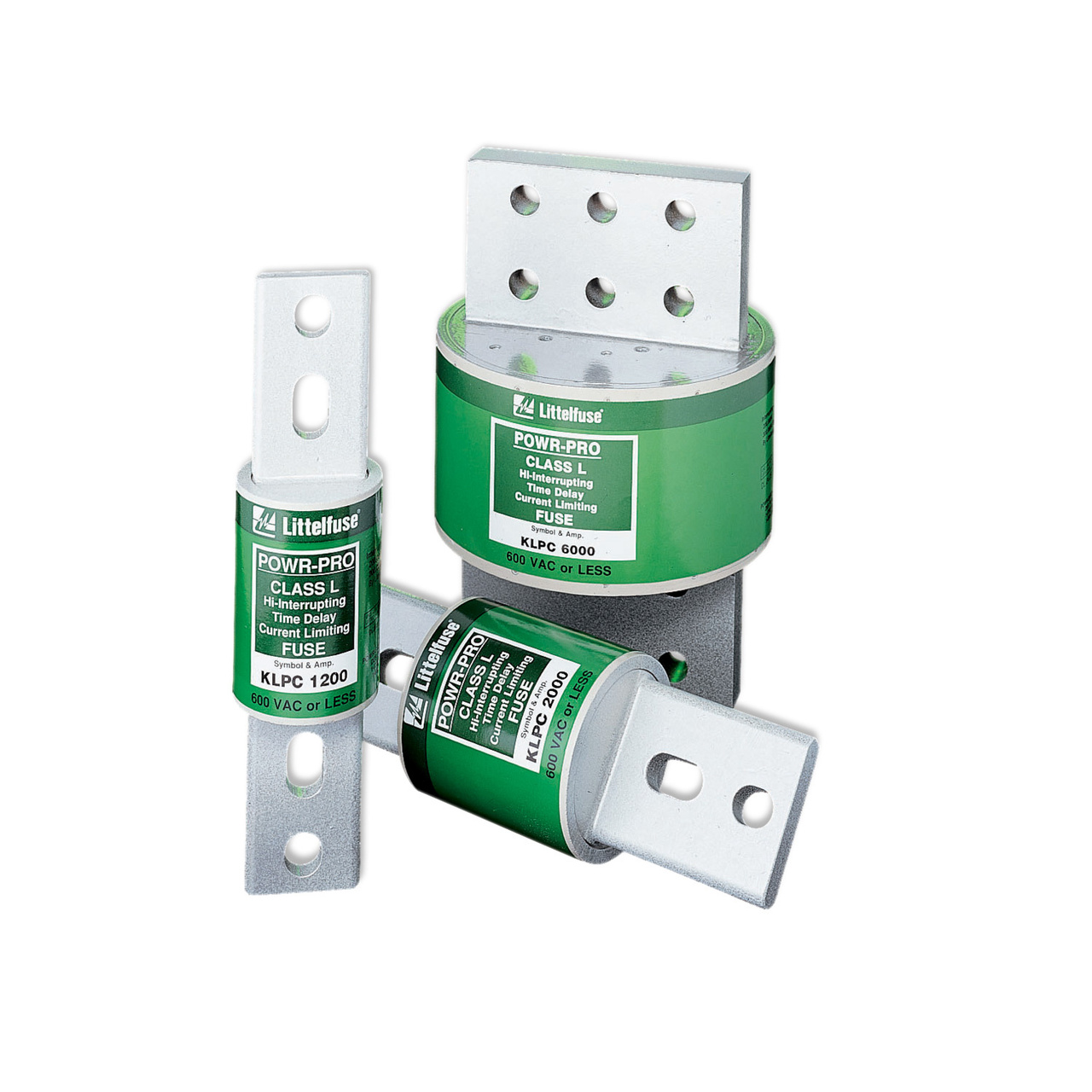

Littelfuse® KLPC3000 POWR-GARD® KLPC Current Limiting Time Delay Fuse, 3000 A, 600 VAC/480 VDC, 20/200 kA Interrupt, Class L

Power Fuse
9386 MFG #: KLPC3000
Littelfuse
1301.73000 / ea
KLPC series POWR-PRO fuses provide ideal over current protection for circuits from 200 through 6000 amperes. KLPC series POWR-PRO fuses specification-grade construction and performance meet or exceed the most stringent project specifications: 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine bodies, O-ring seals between body and end bells, and granular quartz fillers. KLPC series POWR-PRO fuses are the only UL listed Class L fuses that provide a minimum of ten seconds time delay at 500% rated current and are also as current-limiting as the fastest Class L fuse on the market. On average, the peak let-through currents of KLPC series fuses are 10% less than any other "time-delay" Class L fuse.
QTY
  • Applications
  • Features
Switchboard Mains and Feeders, Motor Control Center Mains, Large Motor Branch Circuits and Protection of Power Circuit Breakers Applications
Eliminate unnecessary downtime
KLPC POWR-PRO® series fuses time delay withstands system surges and keeps your circuits in service
Best protection for system components
Co-ordinates with other system components
KLPC series fuses provide maximum coordination with fuses and circuit breakers both on the line and load side of the fuses
Eliminate need to oversize fuses
This may permit the use of smaller less expensive switches and since the lower rated fuses are more current-limiting, equipment receives even better protection
300 kA AC interrupting rating (self certified)
Silver links, silver plated copper end bells, glass reinforced melamine bodies, o-ring seals between body and end bells and granular quartz fillers
Bolt-On blade termina
Time-Delay
