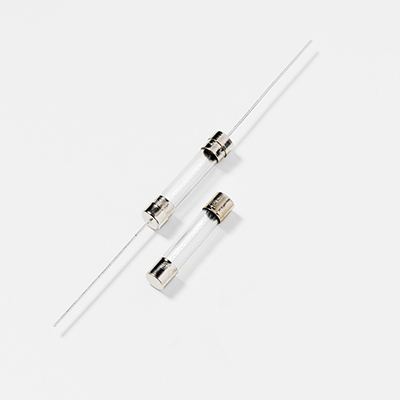

Littelfuse® 3122.25P 312 Fast Acting Fuse, 2.25 A, 250 VAC, 100 A Interrupt, Class RK1, Cylindrical Body
Custom_Product_Images_Illustration
Littelfuse® 3122.25P 312 Fast Acting Fuse, 2.25 A, 250 VAC, 100 A Interrupt, Class RK1, Cylindrical Body
SKUPDW~3267348
MFGR #3122.25P
For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.
For over 85 years Littelfuse has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO, or construction, we are committed to being your circuit protection partner and appreciate your business.
Alternate Catalog Number 03122.25VXP Application All general purpose circuits ARRA Compliant N Body Size 6.3 mm Dia x 32 mm L Body Type Cartridge Buy American Compliant N Catalog Number 3122.25P Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 1 lb Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-ZI Material Glass Mounting Type Holder Series 312 Standard Standard 248-12 UL Listed/CSA Standards RoHS CompliantUL 248-12CSA CertifiedPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD LLSRK Series Type Class RK1 UNSPSC 39121627 UPC 11 07945892236 UPC 12 079458922363 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 100m A Class RK1 Interrupt Rating 100 A Voltage Rating 250 VAC All general purpose circuits Time-Delay Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits Glass body, nickel plated brass end cap 7.2 nominal melting I2 t AC -55 to 125 deg C operating temperature 4 hrs minimum at 1 1 hr maximum at 1.35 5 seconds maximum, 10 seconds maximum, 20 seconds maximum at 200% 10 kA at 125 VAC interrupting rating Glass body, nickel plated brass end cap Lead free Size 3AG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 03122.25VXP |
| Application | All general purpose circuits |
| ARRA Compliant | N |
| Body Size | 6.3 mm Dia x 32 mm L |
| Body Type | Cartridge |
| Buy American Compliant | N |
| Catalog Number | 3122.25P |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1 lb |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-ZI |
| Material | Glass |
| Mounting Type | Holder |
| Series | 312 |
| Standard | Standard 248-12 UL Listed/CSA |
| Standards | RoHS CompliantUL 248-12CSA CertifiedPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD LLSRK Series |
| Type | Class RK1 |
| UNSPSC | 39121627 |
| UPC 11 | 07945892236 |
| UPC 12 | 079458922363 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 100m A |
| Class | RK1 |
| Interrupt Rating | 100 A |
| Voltage Rating | 250 VAC |
| All general purpose circuits |
| Time-Delay |
| Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits |
| Glass body, nickel plated brass end cap |
| 7.2 nominal melting I2 t AC |
| -55 to 125 deg C operating temperature |
| 4 hrs minimum at 1 1 hr maximum at 1.35 5 seconds maximum, 10 seconds maximum, 20 seconds maximum at 200% |
| 10 kA at 125 VAC interrupting rating |
| Glass body, nickel plated brass end cap |
| Lead free |
| Size 3AG |
