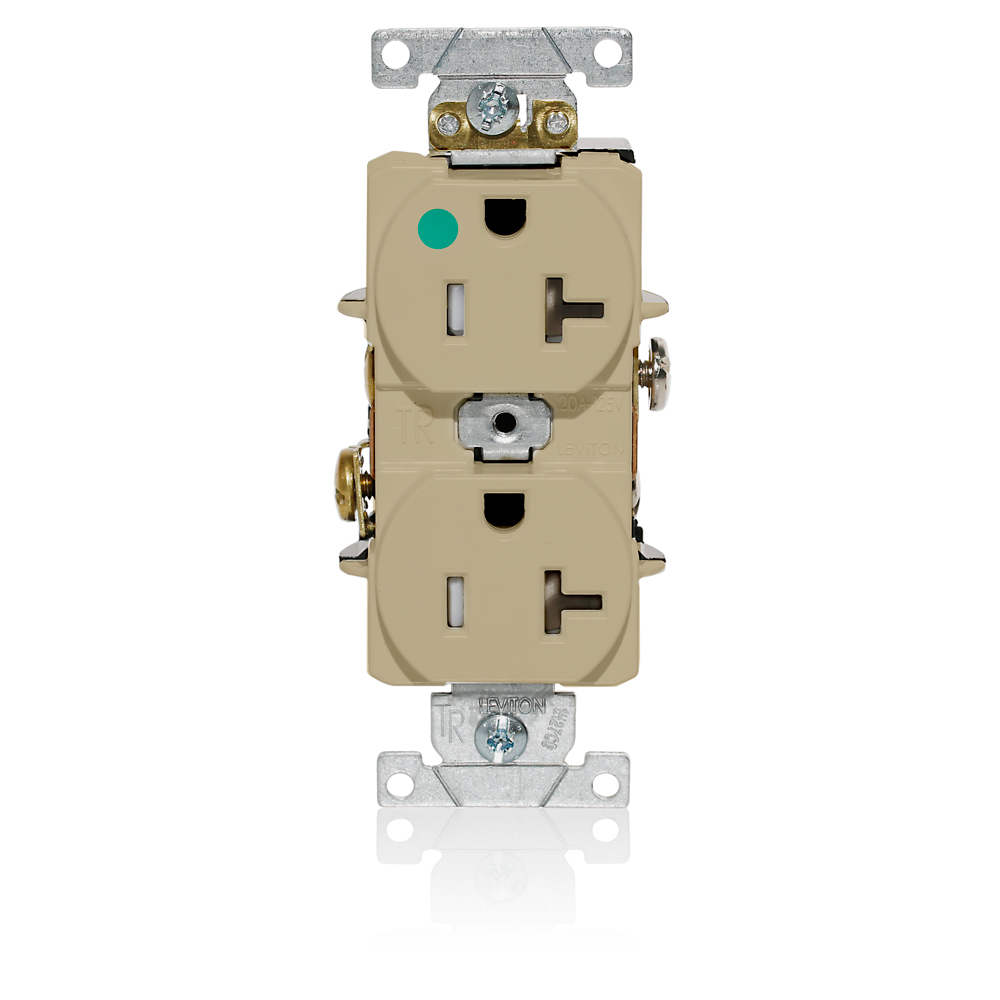

Leviton® T8300-I T8300 Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Straight Blade Receptacles
1137498
MFG #: T8300-I
Leviton®
32.07000
/ ea
Leviton® Straight Blade Receptacle, Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard Tamper-Resistant, Series: T8300, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Ivory, 4.06 in H x 1.71 in W x 1.17 in D Dimensions
- Applications
- Features
| Hospital, Healthcare Facilities, Educational Buildings/Dorms and Institutional Buildings |
| Tamper-Resistant |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Wide receptacle face shelf provides exceptional support to the wallplate or box cover |
| Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects, provide |
| Body and face made of impact-resistant advanced engineering polymer for extreme durability |
| Universal strap design provides ample support for electrical box installations and in |
| Ground and contact terminal isolated from mounting strap to prevent system noise interference |
| Oversized brass terminal screw heads provide superior clamping force and electrical conductivit |
| External wiring clamps allow for back or side wiring and provide visual verification of termi |
| Molded in ribs prevent terminal screws from making contact with wall box |
