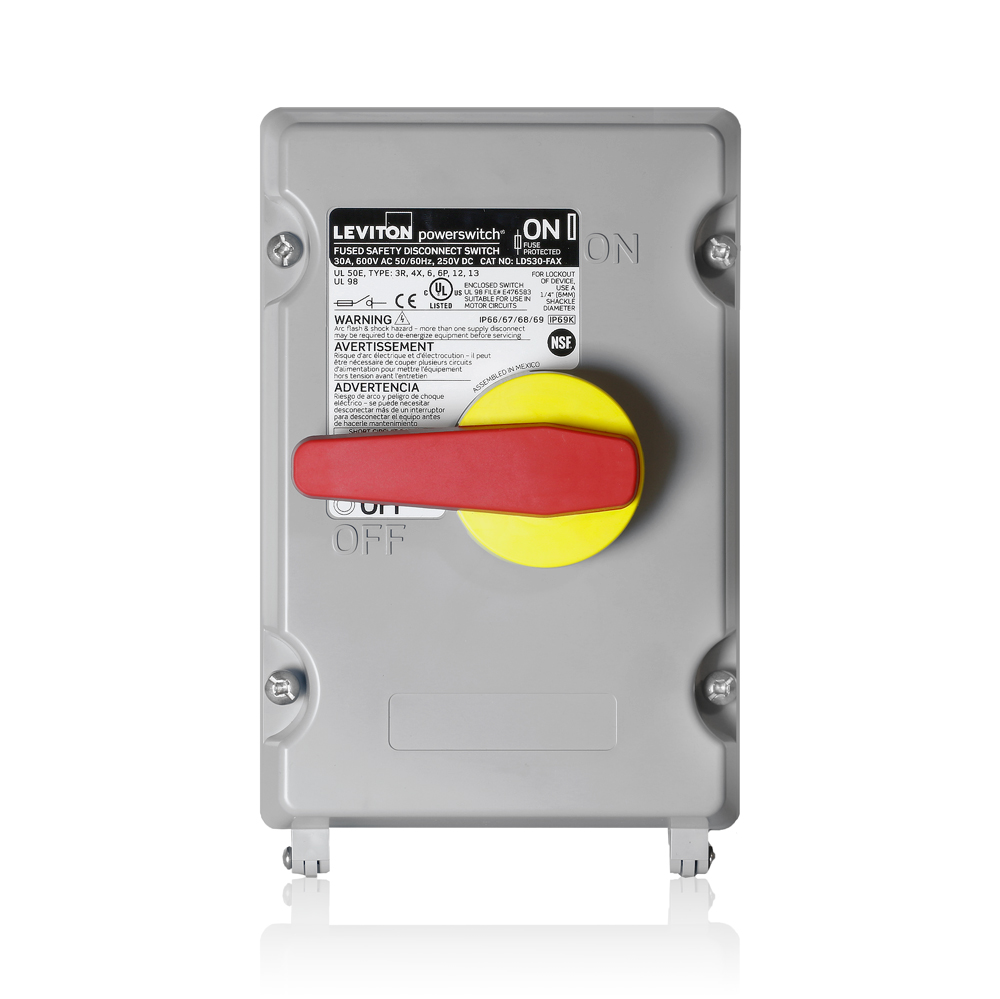

Leviton® Powerswitch®LDS30-FAX Type J Fused Non-Metallic Disconnect Switch, 600 VAC, 30 A, 3 hp, 20 hp, 3 Poles
Enclosed Rotary Disconnects
1213637
MFG #: LDS30-FAX
Leviton®
895.75000
/ ea
Leviton® Powerswitch®Disconnect Switch, Type J Fused Non-Metallic, 600 VAC, 30 A, 3 hp, 20 hp, 1/3 Phase, 3 Poles, 200 kA Short Circuit, Front Handle Actuator, NEMA 3R/4/4X/6/6P/12/250/IP66/IP67/IP68/IP69/IP69K Enclosure, Threaded Mounting, -40 to 75 deg C, 10.46 in H x 6.5 in W x 6.82 in D, PBT/Polycarbonate, Gray
- Applications
- Features
| Industrial Applications |
| Fused |
| 200 kA SCCR when protected by type J fuse |
| Captive, triple head cover screws constructed of stainless steel |
| Handle accommodates 3-padlocks for OSHA compliant lockout/tagout |
| NSF certified for use in food and beverage processing areas |
| Overmold handle with longer length for improved grip and durability |
