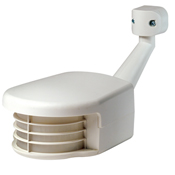

Leviton® PS110-10W Outdoor Occupancy Sensor, 120 VAC, Passive Infrared Sensor, 2500 sq-ft Coverage, 110 deg, Wall Mount

Occupant Sensor
283685 MFG #: PS110-10W
Leviton®
88.21000 / ea
Passive infrared (PIR) outdoor motion sensors provide outstanding reliable value in security lighting, as well as convenience, safety, and energy savings for a wide range of commercial and industrial applications. These outdoor motion sensors are designed to be mounted at a height of 8-10 feet and have similar maximum ranges, although the detection pattern and field-of-view varies with regard to the model number. Each device has a sensor and switch incorporated into one unit, and is installed as part of a lighting circuit. It will turn light fixture(s) ON when it senses movement in its field-of-view. It will also turn the same fixture(s) off from a user-determined time interval after motion is no longer detected.
QTY
  • Applications
  • Features
For parking areas, storage facilities, warehouses, loading docks, marinas, garages, walkways, campus grounds, meat lockers, walk-in refrigerators/freezers, and outbuildings
Adjustable sensitivity and immunity to RFI signals to prevent false triggering
Ambient light override prevents lights from turning ON when there is ample natural light
Surge suppression minimizes likelihood of damage due to electrical surges
Temperature compensation feature ensures uniform performance in extreme hot or cold weather and during temperature fluctuations
Provides test and continuous modes; test mode simulates automatic operation with short delayed-off time for easy adjustments; continuous mode enables manual override for constant "lights ON" operation (when used with standard ON/off switch)
Water resistant housing for reliable, long term performance
1/2 in threaded nipple for use with standard NEMA weather-proof fixture fitting
When mounted at 10 feet high, the sensor has a range of 50 feet
-17 to 55 deg C storage temperature
20 to 90 percent non-condensing relative humidity
Commercial grade
Ballast load type
5-Year Limited Warranty, Country of Origin China
