Leviton®

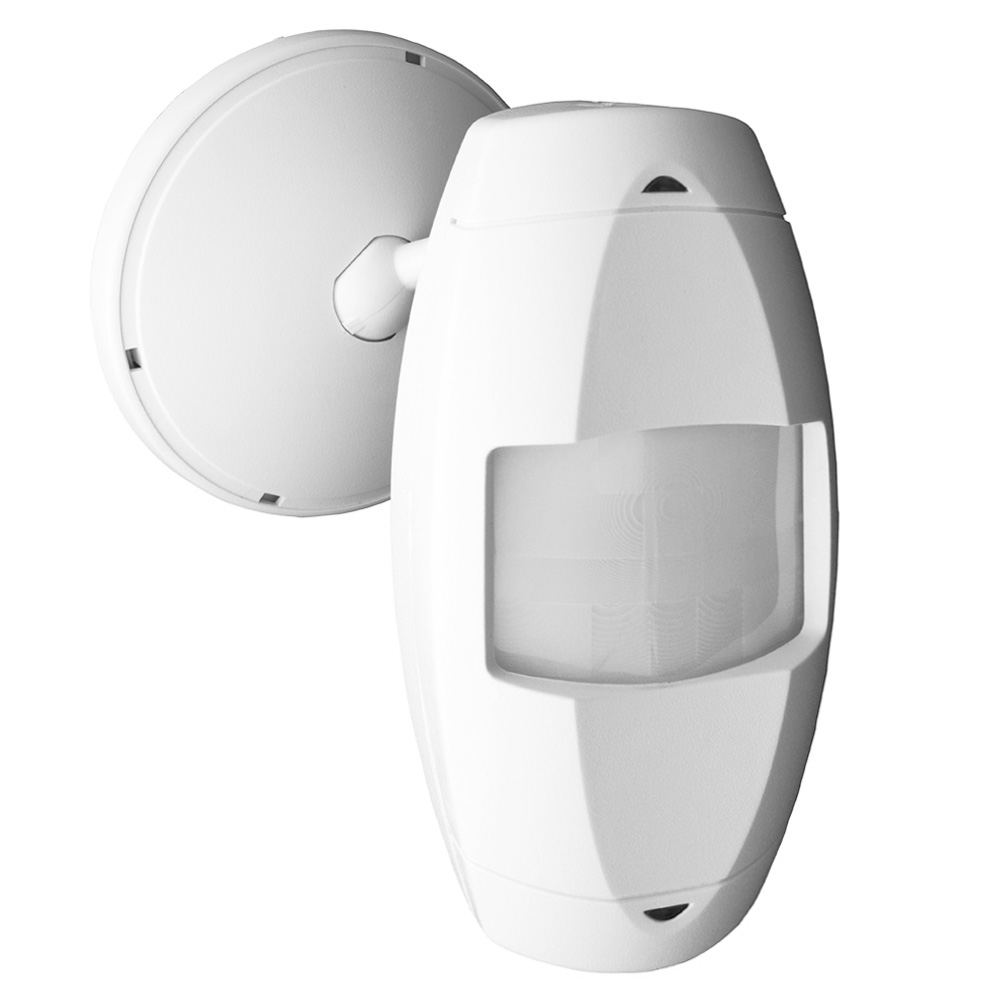

Leviton® OSWHB-RIW Aisle High Bay Occupancy Sensor With Isolated Relay, 24 VDC, PIR Sensor, Up to 55 ft Coverage, 8 deg
Custom_Product_Images_Illustration
Leviton®
Leviton® OSWHB-RIW Aisle High Bay Occupancy Sensor With Isolated Relay, 24 VDC, PIR Sensor, Up to 55 ft Coverage, 8 deg
SKU930035
MFGR #OSWHB-RIW
Your Cost: $172.91/ea
Specifically designed for long, relatively narrow spaces such as warehouse aisles and corridors, the OSWHB-RIW occupancy sensor provides high-sensitivity and long range detection. Additionally, the sensor is designed with an isolated relay contact, enabling the sensor to interface with other systems (example: BAS, HVAC or any dry-contact capable device or system).
Specifically designed for long, relatively narrow spaces such as warehouse aisles and corridors, the OSWHB-RIW occupancy sensor provides high-sensitivity and long range detection. Additionally, the sensor is designed with an isolated relay contact, enabling the sensor to interface with other systems (example: BAS, HVAC or any dry-contact capable device or system).
Amperage Rating 30 mA Application Residential / Commercial ARRA Compliant C Buy American Compliant C Catalog Number OSWHB-RIW Color White Country of Origin MX Currency USD Dimensions 6.43 in H x 2.8 in W x 4.67 in D EU RoHS Indicator C Gross Weight Per Pack 0.8600 lb Gross Weight per Pack Metric 0.39 Gross Weight UOM Metric kg Height 12.6250 in Height [Metric] 7.4625 cm Length 14.8750 in Length [Metric] 15.5575 cm Material Plastic Mounting Wall Standard CUL/US Cert Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1FCC ApprovedNAFTA CompliantNOM 057UL ListedcULus 9034Title 24 Compliant Temperature Rating 32 to 104 °F Time Delay 30 s to 30 min Type Occupancy Sensor UNSPSC 41111961 UPC 11 07847755372 UPC 12 078477553725 Width 5.75 in Width [Metric] 14.6050 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 55 x 7 ft Mounting Type Wall Sensor Type PIR Viewing Angle 8 ° Voltage Rating 24 VDC Residential / Commercial Isolated Relay Combines PIR technology with a microprocessor based digital architecture By eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation and long term performance Adjustable swivel neck rotates 80 deg vertically and 60 deg horizontally Ambient light override prevents lights from turning on when there is ample natural light Self-adjusting delayed Off time interval settings for 30 sec to 30 min Compensates for real time occupancy patterns preventing unnecessary On/Off switching Non-volatile memory preserves all automatic and manual settings during power outages Fast, simple installation using 3 color-coded low voltage wires and a single mounting post Uses power pack load rating 3000 Lux photocell factory preset 20 to 3000 Lux photocell adjustment LEDs enable/LEDs disable High-impact, injection-molded plastic housing, red infrared motion LED indicator, wide view PIR lens 55 x 7 ft at 30 ft H
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 30 mA |
| Application | Residential / Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OSWHB-RIW |
| Color | White |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.43 in H x 2.8 in W x 4.67 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.8600 lb |
| Gross Weight per Pack Metric | 0.39 |
| Gross Weight UOM Metric | kg |
| Height | 12.6250 in |
| Height [Metric] | 7.4625 cm |
| Length | 14.8750 in |
| Length [Metric] | 15.5575 cm |
| Material | Plastic |
| Mounting | Wall |
| Standard | CUL/US Cert |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1FCC ApprovedNAFTA CompliantNOM 057UL ListedcULus 9034Title 24 Compliant |
| Temperature Rating | 32 to 104 °F |
| Time Delay | 30 s to 30 min |
| Type | Occupancy Sensor |
| UNSPSC | 41111961 |
| UPC 11 | 07847755372 |
| UPC 12 | 078477553725 |
| Width | 5.75 in |
| Width [Metric] | 14.6050 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 55 x 7 ft |
| Mounting Type | Wall |
| Sensor Type | PIR |
| Viewing Angle | 8 ° |
| Voltage Rating | 24 VDC |
| Residential / Commercial |
| Isolated Relay |
| Combines PIR technology with a microprocessor based digital architecture |
| By eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control |
| Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation and long term performance |
| Adjustable swivel neck rotates 80 deg vertically and 60 deg horizontally |
| Ambient light override prevents lights from turning on when there is ample natural light |
| Self-adjusting delayed Off time interval settings for 30 sec to 30 min |
| Compensates for real time occupancy patterns preventing unnecessary On/Off switching |
| Non-volatile memory preserves all automatic and manual settings during power outages |
| Fast, simple installation using 3 color-coded low voltage wires and a single mounting post |
| Uses power pack load rating |
| 3000 Lux photocell factory preset |
| 20 to 3000 Lux photocell adjustment |
| LEDs enable/LEDs disable |
| High-impact, injection-molded plastic housing, red infrared motion LED indicator, wide view PIR lens |
| 55 x 7 ft at 30 ft H |
