Leviton®

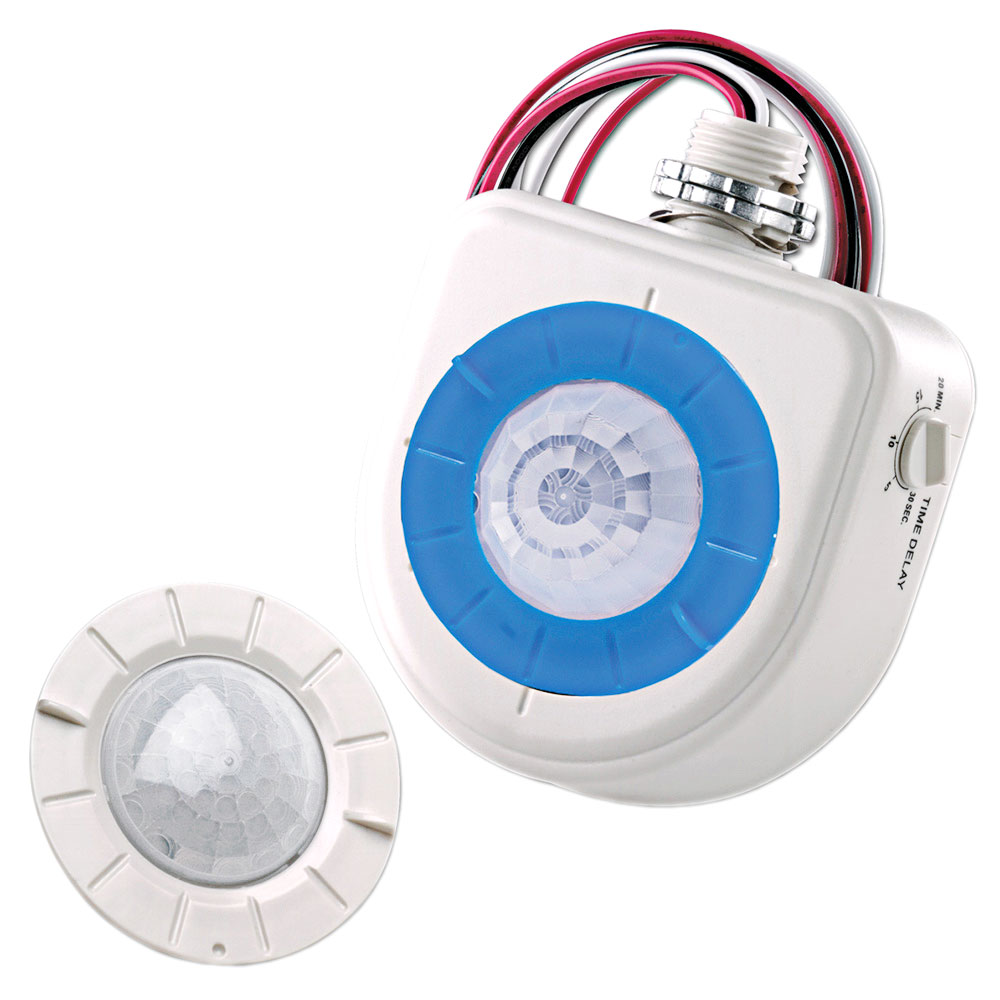

Leviton® OSFHU-I4W High Bay Fixture Mount Occupancy Sensor, 480 VAC, Passive Infrared Sensor, 40 ft Coverage, 360 deg
Custom_Product_Images_Illustration
Leviton®
Leviton® OSFHU-I4W High Bay Fixture Mount Occupancy Sensor, 480 VAC, Passive Infrared Sensor, 40 ft Coverage, 360 deg
SKU464830
MFGR #OSFHU-I4W
Your Cost: $69.28/ea
Leviton's fixture mount occupancy sensors are low voltage occupancy detectors that work in conjunction with various Leviton products. The motion sensors main function is to turn the lights on or maintain the lights on while movement is detected. Available in infrared.
Leviton's fixture mount occupancy sensors are low voltage occupancy detectors that work in conjunction with various Leviton products. The motion sensors main function is to turn the lights on or maintain the lights on while movement is detected. Available in infrared.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number OSFHU-I4W Color White Country of Origin CN Currency USD Dimensions 3-1/2 in H x 3-1/2 in W x 1-1/4 in D Environmental Conditions Cold Storage Temperature Range (-40 to +71 DEG C);Storage Temperature Range (-25 to 71 DEG C);Relative Humidity (0 PCT to 90 Pct) EU RoHS Indicator C Gross Weight Per Pack 0.5400 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Height 8.7500 in Height [Metric] 12.3038 cm Length 12.6250 in Length [Metric] 10.2387 cm Material Plastic Mounting Fixture Power Rating 800 to 2000 VA Response Frequency 50/60 Hz Size 3.50 H x 3.50 W x 1.25 D in Standard UL Listed;cUL Listed (OSFHU Models) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL/cUL ListedTitle 24 CompliantASHRAE 90.1 Temperature Rating -10 to +71 °C Time Delay 30 s to 30 min Type High-Bay Fixture Mount Occupancy Sensor UNSPSC 41111961 UPC 11 07847741077 UPC 12 078477410776 Width 2.28 in Width [Metric] 5.7937 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 40 ft Mounting Type Fixture Sensor Type PIR Viewing Angle 360 ° Voltage Rating 120/230/240/277/347/480 VAC Commercial 5-Year Limited Warranty, Fast, easy time delay setting, Reduce time and materials Fast, easy time delay setting, reduce time and materials Fast Easy time delay setting 3 interchangeable lenses for cold storage Quicksnap Reduce time and materials Fast, easy time delay setting Instantly verify fixture operation and wiring connections Auto temperature calibration Return to last state False detection intelligence High-impact, injection molded plastic housing The OSFHU self contained sensor mounts directly to a luminaire or electrical box to provide local occupancy control for either general area or aisle way pattern detection using PIR technology with a microprocessor based digital architecture that minimizes false triggering The OSFHU provides a trouble-free "install and forget" solution for high-bay lighting control The OSFHU installs directly to an industrial fluorescent luminaire or an electrical junction box It is a self contained sensor and relay that turns individual light fixtures on or off based on occupancy in the detection zone It comes with three interchangeable lenses for use in either a 360 deg high-bay or 360 deg low bay general area or an aisle way To improve the field-of-view for deep body fixtures, a separate offset adapter accessory (OSFOA-00W) can be used to position the sensor below the fixture body The adapter simply snaps into a 1/2 in knockout on the end of the industrial fixture to attach the sensor. green LED indicates occupancy detection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OSFHU-I4W |
| Color | White |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3-1/2 in H x 3-1/2 in W x 1-1/4 in D |
| Environmental Conditions | Cold Storage Temperature Range (-40 to +71 DEG C);Storage Temperature Range (-25 to 71 DEG C);Relative Humidity (0 PCT to 90 Pct) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.5400 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Height | 8.7500 in |
| Height [Metric] | 12.3038 cm |
| Length | 12.6250 in |
| Length [Metric] | 10.2387 cm |
| Material | Plastic |
| Mounting | Fixture |
| Power Rating | 800 to 2000 VA |
| Response Frequency | 50/60 Hz |
| Size | 3.50 H x 3.50 W x 1.25 D in |
| Standard | UL Listed;cUL Listed (OSFHU Models) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL/cUL ListedTitle 24 CompliantASHRAE 90.1 |
| Temperature Rating | -10 to +71 °C |
| Time Delay | 30 s to 30 min |
| Type | High-Bay Fixture Mount Occupancy Sensor |
| UNSPSC | 41111961 |
| UPC 11 | 07847741077 |
| UPC 12 | 078477410776 |
| Width | 2.28 in |
| Width [Metric] | 5.7937 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 40 ft |
| Mounting Type | Fixture |
| Sensor Type | PIR |
| Viewing Angle | 360 ° |
| Voltage Rating | 120/230/240/277/347/480 VAC |
| Commercial |
| 5-Year Limited Warranty, Fast, easy time delay setting, Reduce time and materials |
| Fast, easy time delay setting, reduce time and materials |
| Fast |
| Easy time delay setting |
| 3 interchangeable lenses for cold storage |
| Quicksnap |
| Reduce time and materials |
| Fast, easy time delay setting |
| Instantly verify fixture operation and wiring connections |
| Auto temperature calibration |
| Return to last state |
| False detection intelligence |
| High-impact, injection molded plastic housing |
| The OSFHU self contained sensor mounts directly to a luminaire or electrical box to provide local occupancy control for either general area or aisle way pattern detection using PIR technology with a microprocessor based digital architecture that minimizes false triggering |
| The OSFHU provides a trouble-free "install and forget" solution for high-bay lighting control |
| The OSFHU installs directly to an industrial fluorescent luminaire or an electrical junction box |
| It is a self contained sensor and relay that turns individual light fixtures on or off based on occupancy in the detection zone |
| It comes with three interchangeable lenses for use in either a 360 deg high-bay or 360 deg low bay general area or an aisle way |
| To improve the field-of-view for deep body fixtures, a separate offset adapter accessory (OSFOA-00W) can be used to position the sensor below the fixture body |
| The adapter simply snaps into a 1/2 in knockout on the end of the industrial fixture to attach the sensor. green LED indicates occupancy detection |
