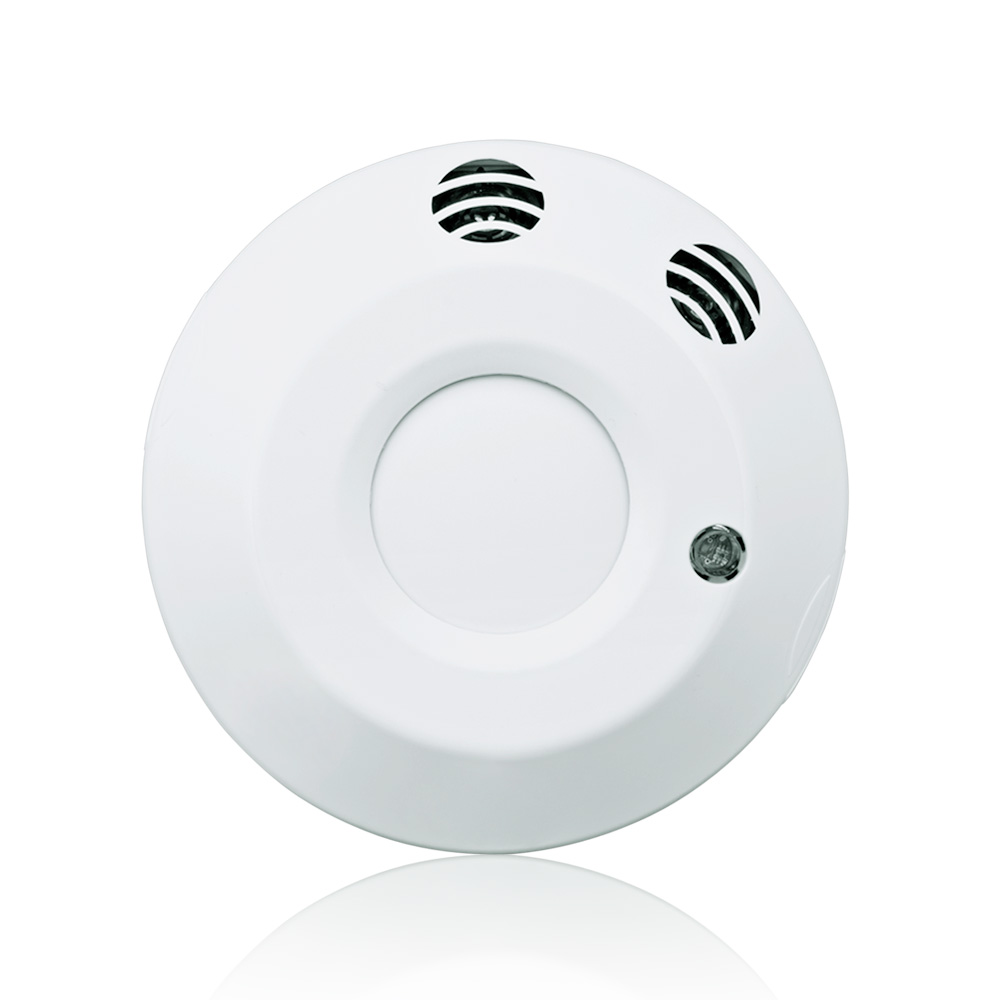

Leviton® ODC05-UDW Line Voltage Ceiling Mount Occupancy Sensors, 120/230/277 VAC, Ultrasonic Sensor, 500 sq-ft Coverage
Custom_Product_Images_Illustration
Leviton®
Leviton® ODC05-UDW Line Voltage Ceiling Mount Occupancy Sensors, 120/230/277 VAC, Ultrasonic Sensor, 500 sq-ft Coverage
SKU827552
MFGR #ODC05-UDW
Your Cost: $165.33/ea
The Leviton ODC series combines line voltage occupancy sensors and photocells into a self contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low cost, efficient energy solution for new construction and retrofits. For true daylight harvesting applications, integrated photocells provide consistent daylight design levels by actively switching the connected load(s) ON and off in response to available natural light to maximize energy savings. Vacancy timers continually analyze and adjust to changing conditions using the latest microprocessor based technology to optimize performance. Auto ON/ auto-off automatically turns lights-on and keeps them ON when occupancy is detected and automatically turns lights off when the space is vacant or unoccupied. Wire terminals allow for simple connection to a line voltage circuit and are ideal for existing buildings with limited access to wiring and new construction.
The Leviton ODC series combines line voltage occupancy sensors and photocells into a self contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low cost, efficient energy solution for new construction and retrofits. For true daylight harvesting applications, integrated photocells provide consistent daylight design levels by actively switching the connected load(s) ON and off in response to available natural light to maximize energy savings. Vacancy timers continually analyze and adjust to changing conditions using the latest microprocessor based technology to optimize performance. Auto ON/ auto-off automatically turns lights-on and keeps them ON when occupancy is detected and automatically turns lights off when the space is vacant or unoccupied. Wire terminals allow for simple connection to a line voltage circuit and are ideal for existing buildings with limited access to wiring and new construction.
Amperage Rating 60 to 30 mA Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number ODC05-UDW Color White Connection Type Wired Control Output Automatic On/Off/Manual On Country of Origin CN Currency USD Dimensions 4.8 in Dia x 2.37 in H Enclosure Type NEMA 410 Environmental Conditions Storage Temperature (-26 DEG C to +71 DEG C );Operating Humidity (0 PCT to 95 PCT) EU RoHS Indicator C Frequency Response 50/60 Hz Gross Weight Per Pack 0.8400 lb Gross Weight per Pack Metric 0.38 Gross Weight UOM Metric kg Height 10.5000 in Height [Metric] 19.6850 cm Length 16.0000 in Length [Metric] 14.6050 cm Mounting Ceiling Replaced Catalog Number ODC05-MDW Response Frequency 50/60 Hz Sensing Distance 500 ft² Size 4.80 (Dia) x 2.37 H in Standard CA Title 20 Complaint;UL 924;NEMA 410;UL (773A);NOM Certified;RoHS Complaint;NY LLC48 Complaint Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCA Title 20UL 924/773ANOM CertifiedNY LLC48 Temperature Rating 0 to +40 °C Time Delay 30 s to 30 min Type Ultrasonic UNSPSC 41111961.0 UPC 11 07847753998 UPC 12 078477539989 Width 4.38 in Width [Metric] 11.1125 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 500 ft² Mounting Type Ceiling Sensor Type Ultrasonic Voltage Rating 120 to 277 V Commercial Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF, Adjustable Time Delay, 5-Year Limited Warranty Utilizes sensors which emit non-audible sound waves and sense movement Any movement within the sensor's field of view causes a shift in the original emitted frequency, the sensor identifies the change as movement and controls light accordingly U/S models are immune to external ultrasonic signals from other sources such as white boards delivering uninterrupted performance Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use Delayed OFF timer the sensor will turn lights OFF if no motion is detected after a specified time Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy Time delay and saved settings are protected during power outages and will return to the last known state Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility Industry exclusive "fail safe" circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays Configurable for manual ON/automatic OFF or automatic ON/automatic OFF Adjustable time delay 0 - 90% non-condensing relative humidity Extended range lens installed Electronic ballast lamp type High-impact plastic material 1/4 hp at 120 VAC, 1/3 hp at 230 VAC, 1/3 hp at 277 VAC power rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 60 to 30 mA |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ODC05-UDW |
| Color | White |
| Connection Type | Wired |
| Control Output | Automatic On/Off/Manual On |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.8 in Dia x 2.37 in H |
| Enclosure Type | NEMA 410 |
| Environmental Conditions | Storage Temperature (-26 DEG C to +71 DEG C );Operating Humidity (0 PCT to 95 PCT) |
| EU RoHS Indicator | C |
| Frequency Response | 50/60 Hz |
| Gross Weight Per Pack | 0.8400 lb |
| Gross Weight per Pack Metric | 0.38 |
| Gross Weight UOM Metric | kg |
| Height | 10.5000 in |
| Height [Metric] | 19.6850 cm |
| Length | 16.0000 in |
| Length [Metric] | 14.6050 cm |
| Mounting | Ceiling |
| Replaced Catalog Number | ODC05-MDW |
| Response Frequency | 50/60 Hz |
| Sensing Distance | 500 ft² |
| Size | 4.80 (Dia) x 2.37 H in |
| Standard | CA Title 20 Complaint;UL 924;NEMA 410;UL (773A);NOM Certified;RoHS Complaint;NY LLC48 Complaint |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCA Title 20UL 924/773ANOM CertifiedNY LLC48 |
| Temperature Rating | 0 to +40 °C |
| Time Delay | 30 s to 30 min |
| Type | Ultrasonic |
| UNSPSC | 41111961.0 |
| UPC 11 | 07847753998 |
| UPC 12 | 078477539989 |
| Width | 4.38 in |
| Width [Metric] | 11.1125 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 500 ft² |
| Mounting Type | Ceiling |
| Sensor Type | Ultrasonic |
| Voltage Rating | 120 to 277 V |
| Commercial |
| Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF, Adjustable Time Delay, 5-Year Limited Warranty |
| Utilizes sensors which emit non-audible sound waves and sense movement |
| Any movement within the sensor's field of view causes a shift in the original emitted frequency, the sensor identifies the change as movement and controls light accordingly |
| U/S models are immune to external ultrasonic signals from other sources such as white boards delivering uninterrupted performance |
| Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use |
| Delayed OFF timer the sensor will turn lights OFF if no motion is detected after a specified time |
| Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy |
| Time delay and saved settings are protected during power outages and will return to the last known state |
| Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported |
| Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied |
| Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility |
| Industry exclusive "fail safe" circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns |
| Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service |
| Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays |
| Configurable for manual ON/automatic OFF or automatic ON/automatic OFF |
| Adjustable time delay |
| 0 - 90% non-condensing relative humidity |
| Extended range lens installed |
| Electronic ballast lamp type |
| High-impact plastic material |
| 1/4 hp at 120 VAC, 1/3 hp at 230 VAC, 1/3 hp at 277 VAC power rating |
