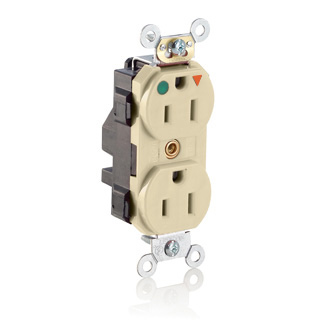

Leviton® Lev-Lok® MT820-IGI 1-Phase Duplex Heavy Duty Isolated Grounding Tamper Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Straight Blade Receptacles
1291660
MFG #: MT820-IGI
Leviton®
56.72000
/ ea
Leviton® Lev-Lok® Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Isolated Grounding Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, Ivory, 46 in H x 1.55 in W x 1.56 in D
- Applications
- Features
| Commercial |
| Constructed with impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten the receptacles face to the body |
| Large triple wipe, brass "T" line contacts for superior contact and conductivity |
| 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules |
| Grounding clip permanently secured to strap for easy, simple and secure installation |
| Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment |
| Wiring module locks and latches to the receptacle body providing double the connection security |
| Receptacle to be installed only with Leviton® MSTWL series wiring modules |
| MSTWL wiring module shipped separately with protective cover and factory installed circuit ID l |
