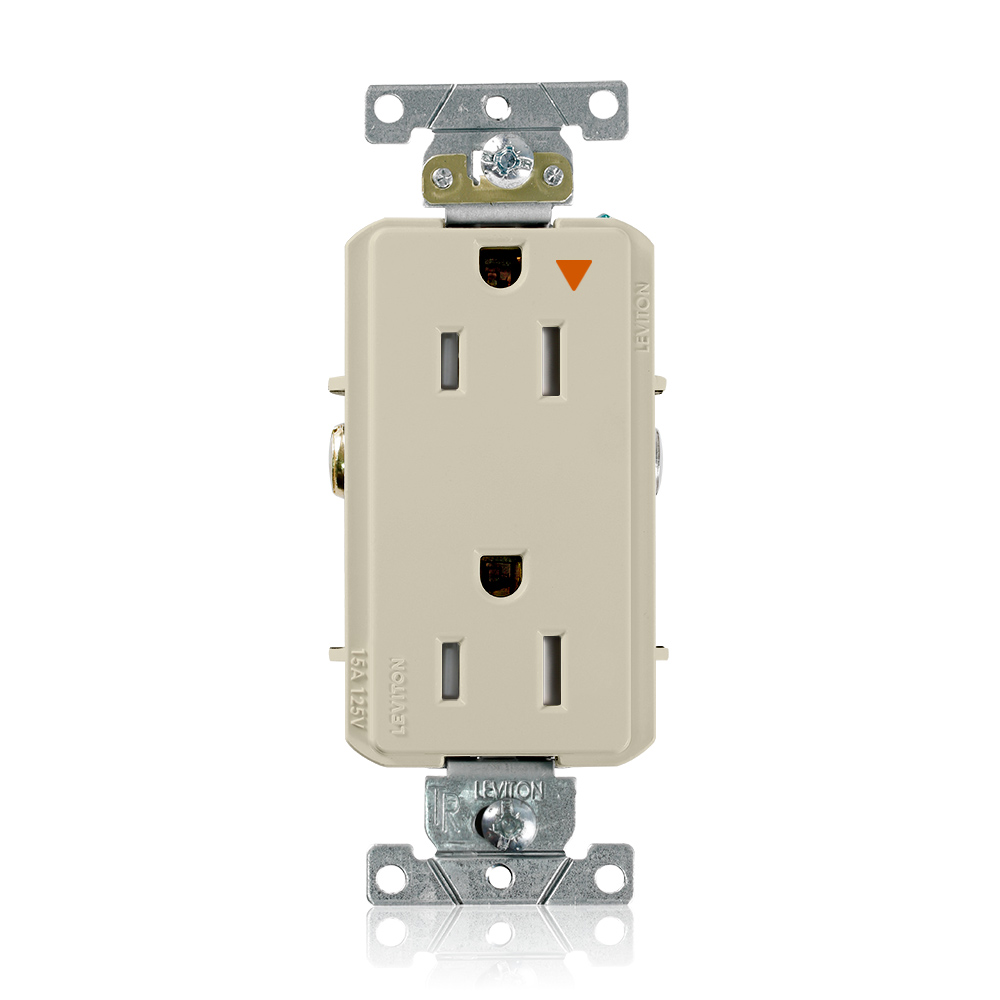

Leviton® Decora® Plus T1626-IGI T1626-IG Duplex Heavy Duty Isolated Self-Grounding Smooth Face Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Straight Blade Receptacles
1284620
MFG #: T1626-IGI
Leviton®
21.83000
/ ea
Leviton® Decora® Plus Straight Blade Receptacle, Duplex Heavy Duty Isolated Self-Grounding Smooth Face Tamper-Resistant, Series: T1626-IG, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Ivory, 4.06 in H x 1.71 in W x 1.17 in D Dimensions
- Applications
- Features
| Industrial, Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitali |
| Isolated Ground |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Wide receptacle face shelf provides exceptional support to the wallplate or box cover |
| Body and face made of impact-resistant advanced engineering polymer for extreme durability |
| Universal strap design provides ample support for electrical box installations and includes multiple break-off |
| Ground and contact terminal isolated from mounting strap to prevent system noise inte |
| Oversized brass terminal screw heads provide superior clamping force and electrical conductivity |
| External wiring clamps allow for back or side wiring and provide visual verification of termina |
| Molded in ribs prevent terminal screws from making contact with wall box |
| Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects, provi |
