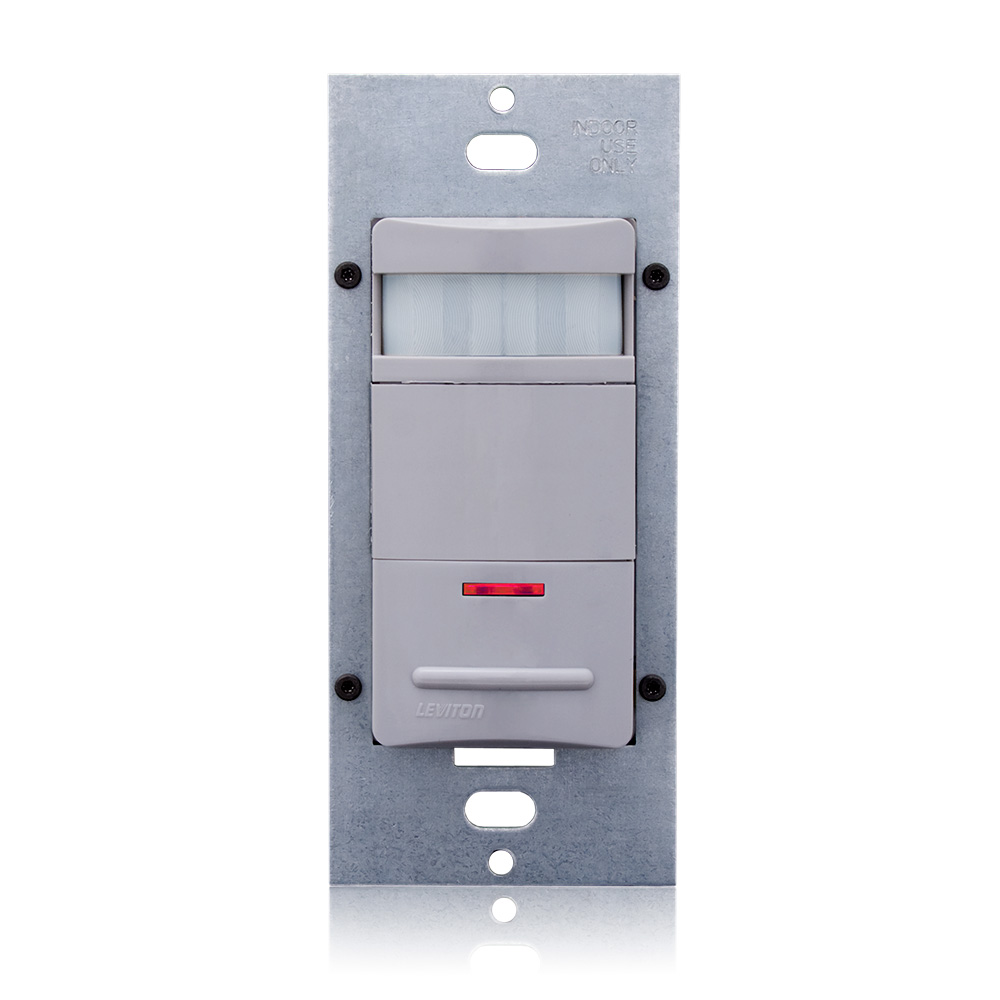

Leviton® Decora® ODS10-IAG 1-Pole Occupancy Sensor, 120/230/277 VAC, Passive Infrared Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall Mount
Wall Mount Occupancy Sensors
1291537
MFG #: ODS10-IAG
Leviton®
94.94000
/ ea
Leviton® Decora® Occupancy Sensor, 1-Pole, 120/230/277 VAC, 100/250 mW Power, Passive Infrared Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, Fluorescent Lamp, 50/60 Hz Response, Wall Mounting, 0 to 50 deg C, Gray, 1.75 in W x 1.85 in D x 46 in H Dimensions
- Applications
- Features
| Small Offices, Conference Rooms, Classrooms, Lounges and Commercial Applications |
| Fits in Standard Wallbox and Replaces Single-Pole Wall Switch, 180ª Field-Of-View Provides Approximately 195m2 of Coverage Suitable for Small Offices, Conference Rooms, Classrooms, Lounges and a Variety of Commercial Areas, Convenient Pushbutton Provides |
| Fits in standard wallbox and replaces 1-pole wall switch |
| Low profile design eliminates obtrusive "scanning device" look, elegant Decora® wallplate |
| 180 deg field of view provides approximately 2100 sq-ft of coverage |
| Convenient dual pushbuttons provide manual ON/Off light switching of each load at any time |
| Two dual element PIR sensors used to widen detection range |
| Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive "minor motion" area where even slight body movements will be |
| Vandal-resistant PIR lens |
| Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blin |
| Manual On/auto Off mode for installations where manual On switching is required but auto Off sw |
| Time delay adjustment for delayed Off time settings of 30 sec (for walking test), 10, 20 and 30 min, al |
| Light sensor |
