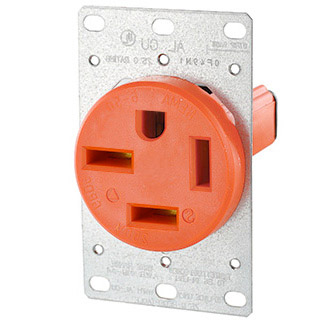

Leviton® 8450-IG 3-Phase Extra Heavy Duty Isolated Ground Straight Blade Receptacle, 250 VAC, 50 A, 3 Poles, 4 Wires, Orange
Straight Blade Receptacles
1288402
MFG #: 8450-IG
Leviton®
105.74000
/ ea
Leviton®, 8450-IG, Straight Blade Receptacle, 3-Phase Extra Heavy Duty Isolated Ground, 250 VAC, 50 A, 7-1/2 hp, 3 Pole, 4 Wires, NEMA 15-50R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Orange, 3.75 in H x 2.75 in W x 2.1 in D Dimensions
- http://www.leviton.com(Seller Home Page URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=8450-IG&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_C5PZEMIQHS3UWDJR.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=35429&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Factories, Schools, Hospitals and Commercial Office Buildings |
| Heavy gauge, double wipe copper alloy contacts |
| Easy-to-wire terminals accept up to no 4 AWG conductors |
| Terminals marked for easy identification and fast wiring |
| All mounting hardware included |
| Flush mount devices fit single or 2-gang outlet boxes |
| Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of |
| 3-phase |
| Maximum 30 deg C after 50 cycles OL at 150% rated current temperature rise |
