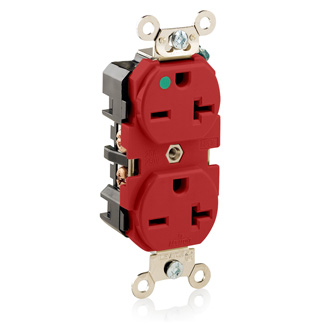

Leviton® 8400-R Extra Heavy Duty Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Red
Straight Blade Receptacles
598660
MFG #: 8400-R
Leviton®
39.97000
/ ea
Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
- Catalog URL - Leviton_8330_Catalog.pdf(Catalog URL)
- http://www.leviton.com(Seller Home Page URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v1-8400-R.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=8400-R§ion=42416&minisite=10251(Spec Sheet URL)
- Applications
- Features
Commercial |
Impact resistant thermoplastic nylon cover and body |
Four corner latches securely fasten face |
Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity |
High performance brass #10-32 terminal screws to reduce conductor oxidation |
Back and side wire ground termination brass strap version |
Back and side wiring options |
Break-OFF tabs allow easy 2-circuit conversion |
Apron barrier to prevent accidental contact between terminal screw heads and metal box |
Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator |
Nylon face, brass strap |
Nickel plated brass ground clips, clamp nuts |
Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
Max 30C after 250 cycles OL at 200 percent rated current |
Duplex |
14 to 10 AWG wire size |
