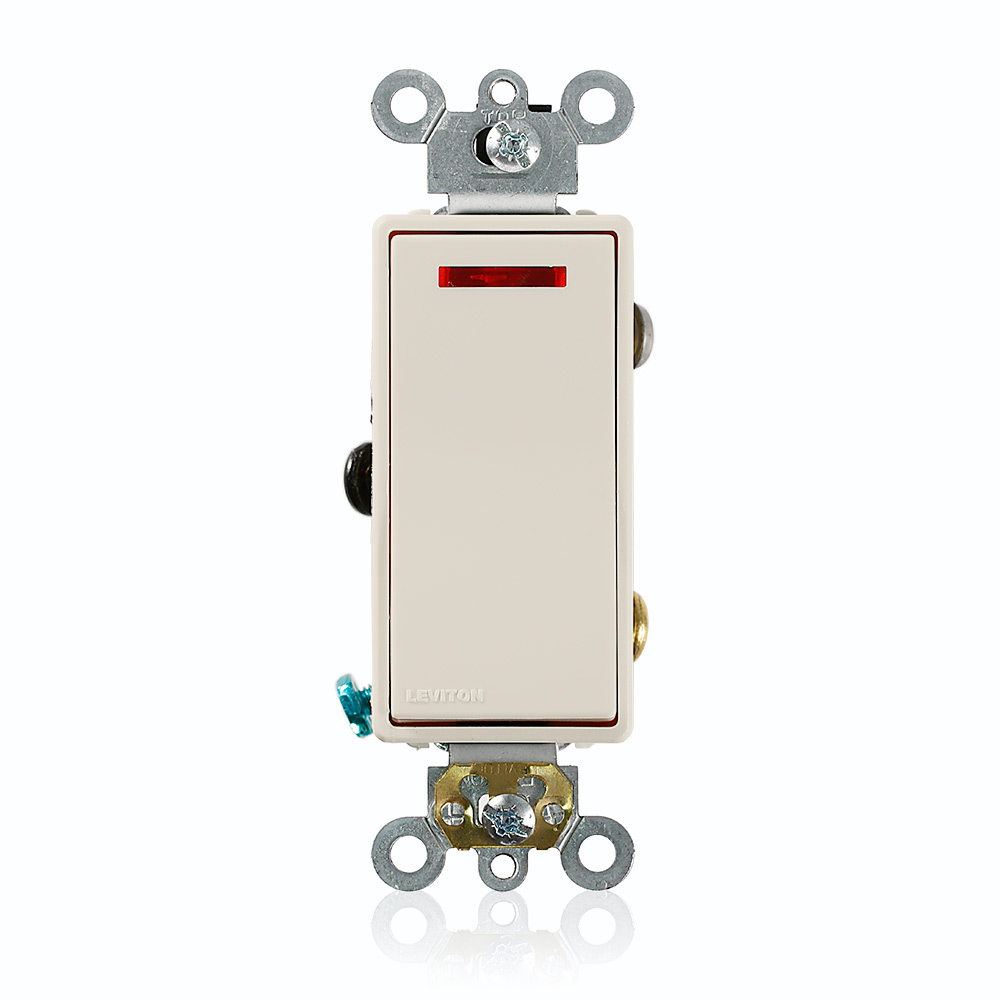

Leviton® 5628-2T Self-Grounding Pilot Light AC Quiet Switch, 120 VAC, 20 A, 1 hp Power Rating
Decorative Switches
1287434
MFG #: 5628-2T
Leviton®
22.46000
/ ea
Leviton®, 5628-2T, AC Quiet Switch, Self-Grounding Pilot Light, 120 VAC, 20 A, 1 hp Power, 20 A at 120 VAC Contact, 1 Pole, Maintained/Momentary Action, Rocker Actuator, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Light Almond, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.76 in W x 1.6 in D Dimensions
- Applications
- Features
| Commercial Applications |
| Full rated current capacity with tungsten, fluorescent or resistive loads |
| Motor capacity is 80% of switch rating |
| Back and side wiring terminals accept both solid and stranded wire for easy installation |
| New architecturally styled smooth action concave rocker |
| Heavy duty impact resistant thermoplastic construction for long service life in comme |
| Two ground connection options a green grounding screw and a self-grounding clip |
| Engineered for fine tolerances and top performance |
| Decora® plus switches feature impact resistant thermoplastic construction for long service li |
| Pilot light rocker visible when ON even in bright light |
