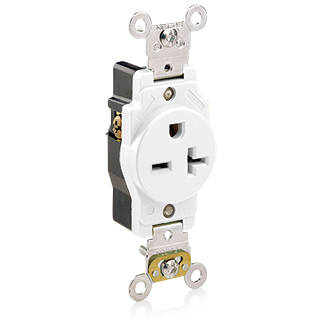

Leviton® 5461-W Single Outlet Narrow Body Self-Grounding Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, White
Straight Blade Receptacles
591568
MFG #: 5461-W
Leviton®
15.14000
/ ea
Leviton® Straight Blade Receptacle, Single Outlet Narrow Body Self-Grounding, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, NEMA 6-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Nylon, White, 4.06 in H x 1.31 in W x 1.06 in D
- Applications
- Features
| Commercial |
| Impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten face |
| Large triple wipe, brass "T" contacts for superior contact and conductivity |
| Back and side wiring options |
| Brass terminal screws to reduce conductor oxidation |
| Break-OFF tabs allow easy 2-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
| Wire lead receptacles for fast and easy installation |
