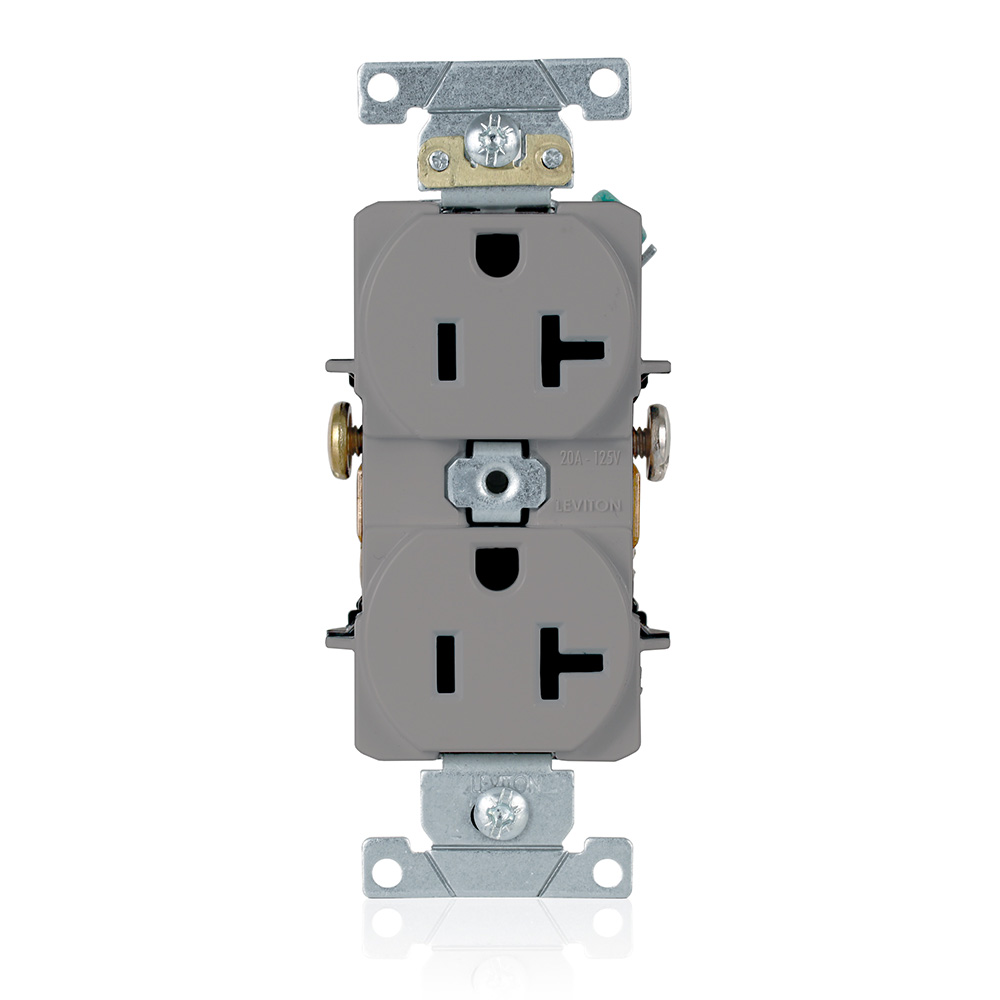

Leviton® 5342-GY Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Straight Blade Receptacles
8272
MFG #: 5342-GY
Leviton®
4.01000
/ ea
Leviton®, 5342-GY, Straight Blade Duplex Receptacle, Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Thermoplastic Nylon, Gray, 4.06 in H x 1.55 in W x 1.12 in D Dimensions
- Applications
- Features
| Commercial Applications |
| Impact resistant thermoplastic nylon cover and body |
| Smooth face does not collect dirt |
| Four corner latches securely fasten face |
| Large, triple-wipe, brass T contacts for superior contact and conductivity |
| Back and side wiring options |
| Brass terminal screws to reduce conductor oxidation |
| Break-off tabs for easy two-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity |
| Wallbox mounting |
| Self-groundi |
