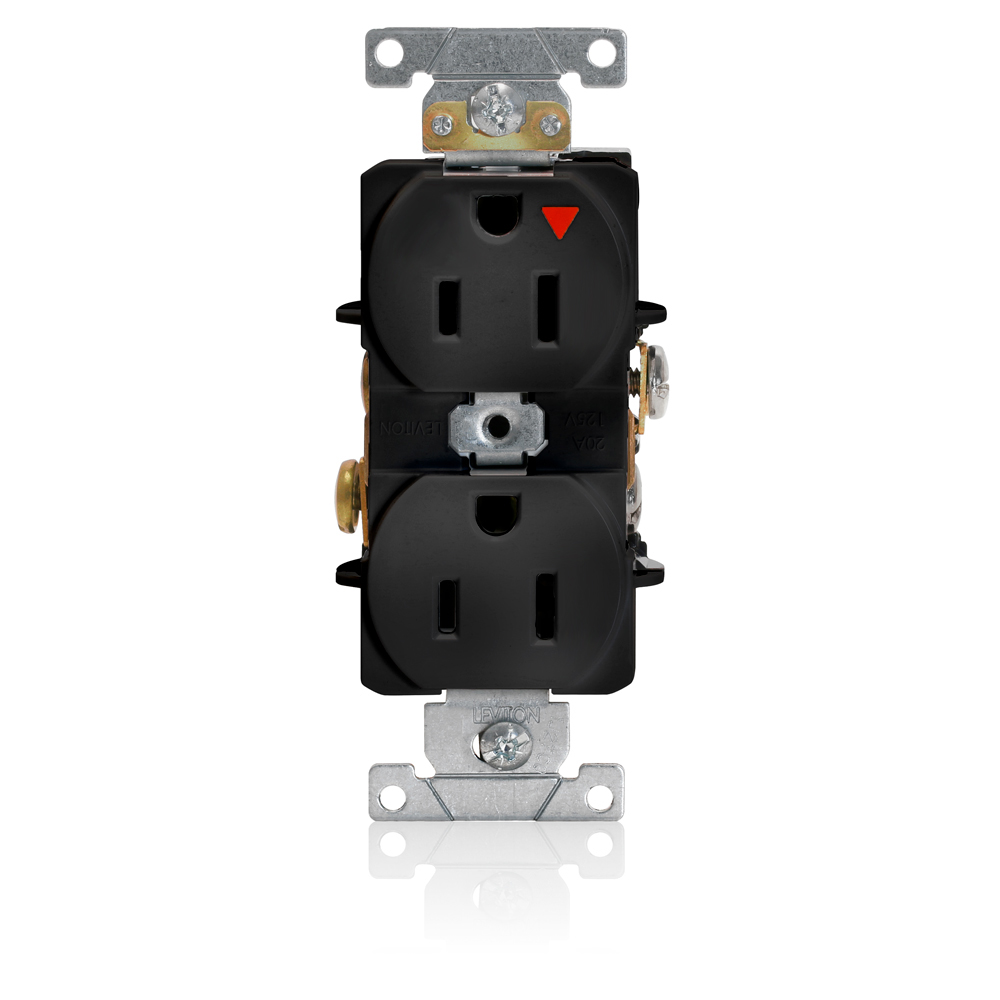

Leviton® 5262-IGE 5262-IG Duplex Heavy Duty Isolated Ground Smooth Face Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Straight Blade Receptacles
1292085
MFG #: 5262-IGE
Leviton®
10.98000
/ ea
Leviton® Straight Blade Receptacle, Duplex Heavy Duty Isolated Ground Smooth Face, Series: 5262-IG, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Black, 4.06 in H x 1.33 in W x 1.12 in D Dimensions
- Applications
- Features
| Industrial |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Wide receptacle face shelf provides exceptional support to the wallplate or box cover |
| Body and face made of impact-resistant advanced engineering polymer for extreme durability |
| Universal strap design provides ample support for electrical box installations and includes multiple break-off |
| Ground terminal clamp allows for both back and side wiring |
| Oversized brass terminal screw heads provide superior clamping force and electrical conductivity |
| External wiring clamps allow for back or side wiring and provide visual verification of termina |
