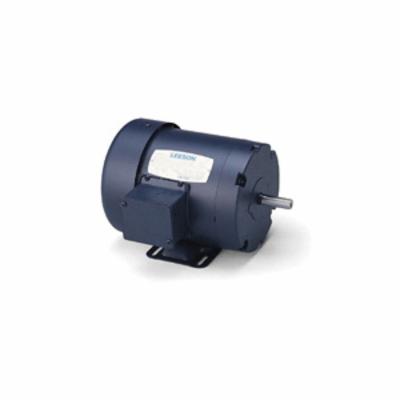

Leeson® 116594.00 116594 Type TF Continuous Duty AC Motor, 3 hp, 208 to 230/460 VAC, 60 Hz, 3, 56 Frame, 1740 rpm, Rigid Mount
General Purpose Motor AC
PDW~6586313
MFG #: 116594.00
LEESON®
652.00000
/ ea
LEESON® AC Motor, Type TF Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 4-Pole, C NEMA Design, 3 hp, 208 to 230/460 VAC, 60 Hz, 3, 1740 rpm, 1 Speed, TEFC, 56 Frame, 7/8 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 14.26 in L
- Features
| 4-Pole, C NEMA Design |
| Standard, EPACT and premium efficiency motor |
| Shielded ball bearings for direct coupled applications |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| Continuous duty |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| 4-pole |
| C NEMA design |
| Across the line start method |
| Squirrel cage induction run electrical type |
| J KVA code |
| F4-insulation |
| 79% power factor |
| 82.5% standard full load efficiency at 60 Hz |
