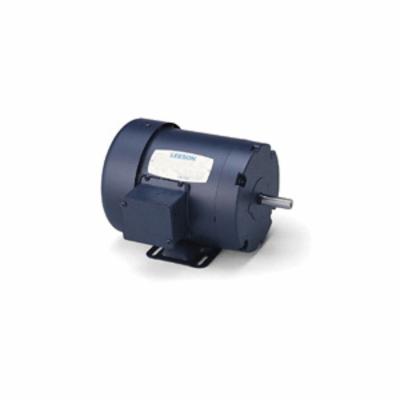

Leeson® 102684.00 102684 Type TF Continuous Duty AC Motor, 0.33 hp, 208 to 230/460 VAC, 60 Hz, 3, 48 Frame, 3450 rpm, Rigid Mount
General Purpose Motor AC
PDW~6585499
MFG #: 102684.00
LEESON®
349.00000
/ ea
LEESON® AC Motor, Type TF Continuous Duty, Application Type: Compressor Motor, Fan & Blower Motor, Special Features: 2-Pole, 74% Power Factor, 0.33 hp, 208 to 230/460 VAC, 60 Hz, 3, 3450 rpm, 1 Speed, TEFC, 48 Frame, 1/2 in Dia Shaft, Reversible, Service Factor: 1, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 8.81 in L x 7.39 in W x 6.13 in H
- Catalog URL - LEESON_110035_00_Catalog.pdf(Catalog URL)
- Full Eng Drawing URL - LEESON_110035_00_Full_Engineering_Drawing.pdf(Full Eng Drawing URL)
- Tech Drawing 1 URL - LEESON_102684_00_Technical_Drawing.pdf(Tech Drawing 1 URL)
- Video - https://www.youtube.com/embed/-x3syiRkH-k(Video)
- Warranty 1 URL - LEESON_110035_00_Warranty.pdf(Warranty 1 URL)
- Features
| 2-Pole, 74% Power Factor |
| Standard, EPACT and premium efficiency motor |
| Shielded ball bearings for direct coupled applications |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| Continuous duty |
| Dynamically balanced rotors torques exceed NEMA performance standards |
| 2-pole |
| Across the line start method |
| Squirrel cage induction run electrical type |
| L KVA code |
| B4 insulation |
| 74% power factor |
| 68% standard full load efficiency at 60 Hz |
