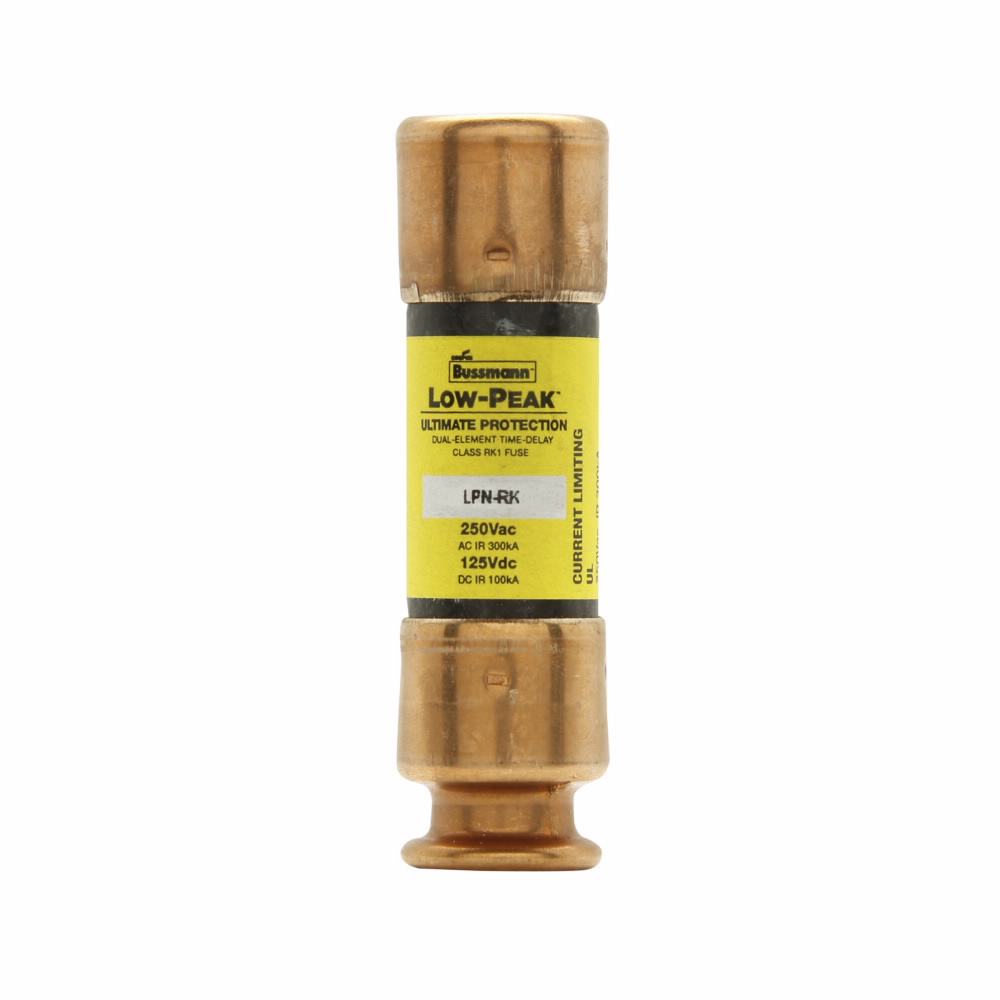

LOW PEAK DUAL ELEMENT
SKU369036
MFGR #LPN-RK-1/2SP
Your Cost: $22.32/ea
List: Ultimate protection Class RK1 dual element, current- limiting time-delay fuses available with optional open fuse indication. Time-delay - 10 seconds (minimum) at 500% of rated current (8 seconds for 0 - 30 A sizes).
Ultimate protection Class RK1 dual element, current- limiting time-delay fuses available with optional open fuse indication. Time-delay - 10 seconds (minimum) at 500% of rated current (8 seconds for 0 - 30 A sizes).
Alternate Catalog Number LPN-RK-1/2SP Application Ind Facilities & Factories - Facility: Safety and Security Systems ARRA Compliant C Body Size 9/16 in Dia x 2 in L Buy American Compliant C Catalog Number LPN-RK-1/2SP Country of Origin MX Currency USD Element Dual EU RoHS Indicator C Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 0.60 in Height [Metric] 1.5240 cm Length 2.00 in Length [Metric] 5.0800 cm Material Melamine Mounting Type Holder Response Time 8 Series LPN-RK Standard CE Marked Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedGuide No. JDDZ UL File No. E4273CSA Class 1422-02CSA File No. 53787CSA C22.2CSA File No. 248.12 Sub Brand Bussmann Series Terminal Type Ferrule Type Fuse UNSPSC 39121606 UPC 11 05171253805 UPC 12 051712538053 Width 0.60 in Width [Metric] 1.5240 cm Stock Status NONSTOCK Brand Bussmann Manufacturer Eaton Amperage Rating 500m A Class RK-1 Interrupt Rating 100 kAIC at 125 Vdc300 kAIC at 250 Vac Voltage Rating 250/125 VAC//VDC Ind Facilities & Factories - Facility: Safety and Security Systems Indicating, High in-rush current motor protection Fast short circuit protection and dual element, time delay performance provide ultimate protection Insulated endcaps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak® fuses Consistent 2:1 ampacity ratios for all Low-Peak® fuses make selective coordination easy Time delay that permits 130% FLA sizing for back up motor protection Inventory consolidation of class RK1, RK5 and H fuses for reduced SKU investment and minimizing potential for misapplying fuse Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective coordination ratio of 2:1 (within Low-Peak® fuse family) prevents widespread blackouts Protects against 1-phase motor damage Proper sizing can provide "No Damage" type 2 coordinated protection for NEMA® and IEC® motor controllers
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LPN-RK-1/2SP |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| ARRA Compliant | C |
| Body Size | 9/16 in Dia x 2 in L |
| Buy American Compliant | C |
| Catalog Number | LPN-RK-1/2SP |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 0.60 in |
| Height [Metric] | 1.5240 cm |
| Length | 2.00 in |
| Length [Metric] | 5.0800 cm |
| Material | Melamine |
| Mounting Type | Holder |
| Response Time | 8 |
| Series | LPN-RK |
| Standard | CE Marked |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedGuide No. JDDZ UL File No. E4273CSA Class 1422-02CSA File No. 53787CSA C22.2CSA File No. 248.12 |
| Sub Brand | Bussmann Series |
| Terminal Type | Ferrule |
| Type | Fuse |
| UNSPSC | 39121606 |
| UPC 11 | 05171253805 |
| UPC 12 | 051712538053 |
| Width | 0.60 in |
| Width [Metric] | 1.5240 cm |
| Stock Status | NONSTOCK |
| Brand | Bussmann |
| Manufacturer | Eaton |
| Amperage Rating | 500m A |
| Class | RK-1 |
| Interrupt Rating | 100 kAIC at 125 Vdc300 kAIC at 250 Vac |
| Voltage Rating | 250/125 VAC//VDC |
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Indicating, High in-rush current motor protection |
| Fast short circuit protection and dual element, time delay performance provide ultimate protection |
| Insulated endcaps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing |
| Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents |
| Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak® fuses |
| Consistent 2:1 ampacity ratios for all Low-Peak® fuses make selective coordination easy |
| Time delay that permits 130% FLA sizing for back up motor protection |
| Inventory consolidation of class RK1, RK5 and H fuses for reduced SKU investment and minimizing potential for misapplying fuse |
| Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective coordination ratio of 2:1 (within Low-Peak® fuse family) prevents widespread blackouts |
| Protects against 1-phase motor damage |
| Proper sizing can provide "No Damage" type 2 coordinated protection for NEMA® and IEC® motor controllers |
