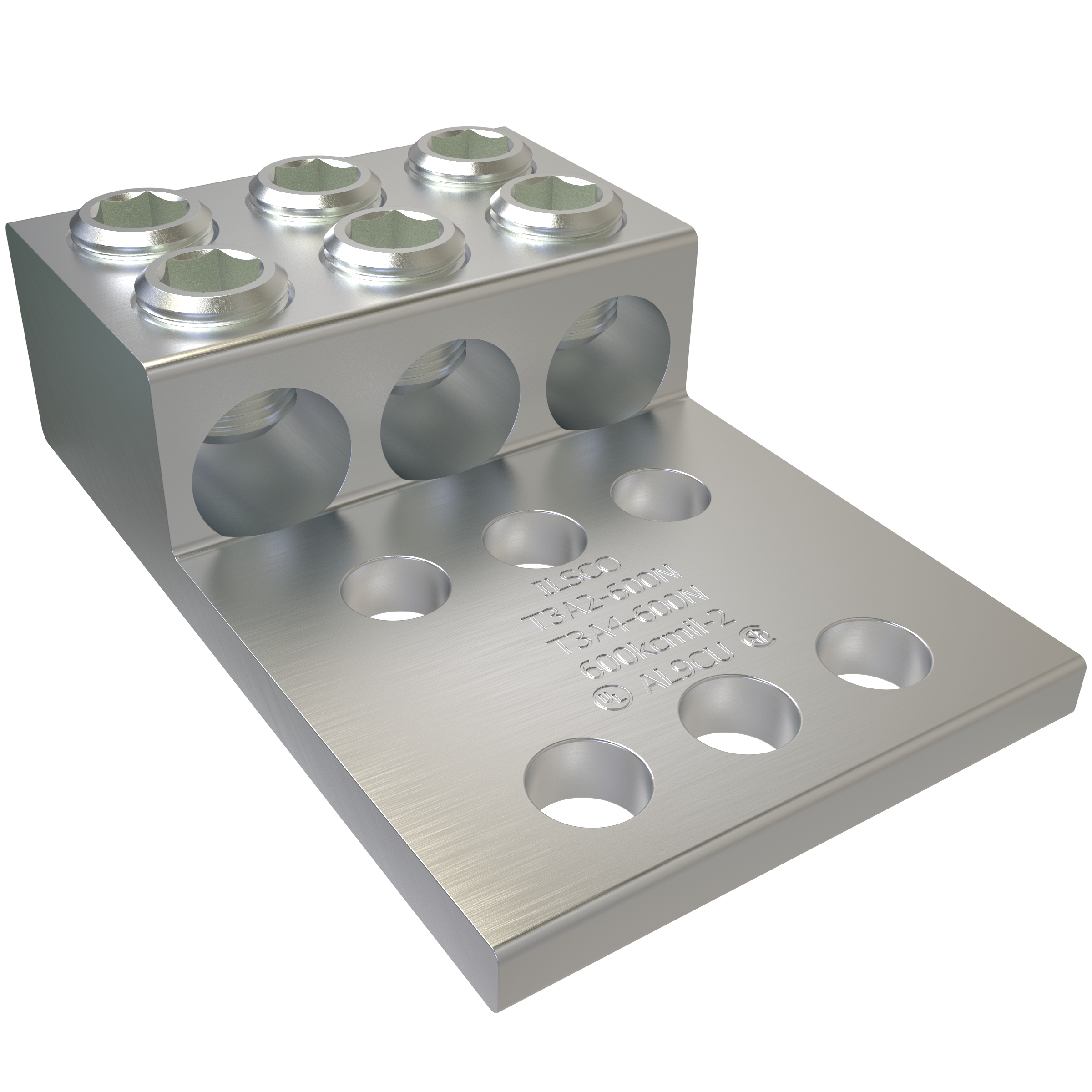

ILSCO® T3A2-600N T3A Dual Rated Mechanical Terminal Lug, 2 AWG to 600 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 6 Bolt Holes
Mechanical Terminal Lugs
347192
MFG #: T3A2-600N
ILSCO®
320.47000
/ ea
ILSCO® Mechanical Terminal Lug, Dual Rated, Series: T3A, Aluminum/Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 6 Bolt Holes, 3 in L x 3-1/2 in W x 3/8 in THK Tongue, Straight Tongue, 2000 VAC, 1/2 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, Aluminum, Electro-Plated Tin, 5-1/2 in L x 3-1/2 in W x 1-1/2 in H
- http://www.ilsco.com(Seller Home Page URL)
- Install Instructions URL - ILSCO_AU_0_Installation_Instructions.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_40AI3O6K8WFU2LYV.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_RNDTVB8GHKIX4J91.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Features
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion;Must be mounted with a minimum of two bolts |
| Chamfered wire entry provides ease of installation |
| Suitable for use with either copper or aluminum conductors |
| Must be mounted with a minimum of 2 bolts, Mounting hole spacing from side to side, hole to hole is .875 in |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Provides low contact resistance |
| Ensures reliability for copper or aluminum conductors |
| Suitable for use with either copper or aluminum conductors |
| 1/Pack, Standard Package |
