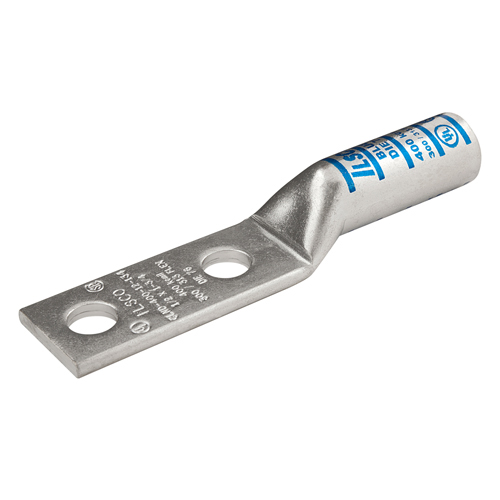

ILSCO® SureCrimp® CLND 2-Hole Compression Lug Without Sight Hole, 4/0 AWG, 3/8 in Stud, I-54, Copper
Lug Compression Connectors
1016173
MFG #: CLND-4/0-38-134
ILSCO®
29.53000
/ ea
ILSCO® SureCrimp® Compression Lug, 2-Hole, Series: CLND, 4/0 AWG Conductor, Die Code: I-54, 600 VAC, 3/8 in Stud, 2.625 in L x 0.999 in W Tongue, 4.616 in Overall Length, Long, 1-1/2 in L Barrel, 90 deg C, Copper, Purple, 0.546 in ID x 0.687 in OD
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Install Instructions URL - ILSCO_ELT_1_Installation_Instructions.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10975_8XL7P62QK4HOU5NR.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_0B2CSMTN5ROWL16I.pdf(Tech Drawing URL)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Features
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Manufactured from high strength seamless copper tubing, electro-tin plated |
| Color coded |
| Offers maximum conductivity and excellent crimping characteristics |
| Provides low contact resistance |
| For easy conductor insertion |
| Identifies the proper compression die |
| Application versatility |
| Reduces inventory requirements |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| 3/0 AWG flexible alternate conductor size |
| 1 to 4/0 AWG expanded conductor size |
| Without sight hole |
| Electro-tin plated |
| Long barrel length with chamfered entry |
