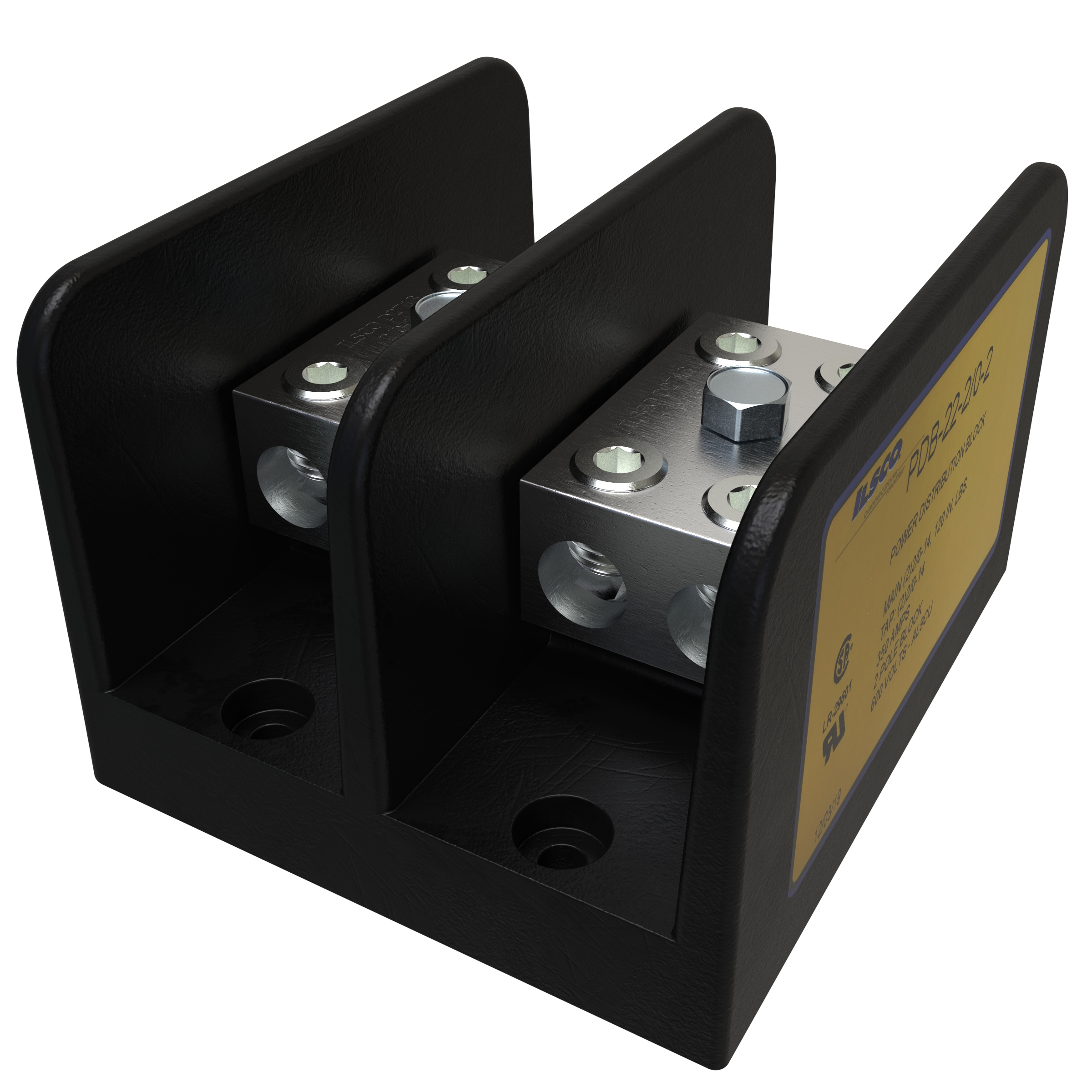

ILSCO® ClearChoice® PDB-22-2/0-2 Type PDB Power Distribution Block, 600 VAC, 350 A, 2 Poles, 14 to 2/0 AWG Wire

Multi Pole Distribution Blocks
348703 MFG #: PDB-22-2/0-2
ILSCO®
140.85000 / ea
10975_H3FE0IVYTR71NKQW
ILSCO® ClearChoice® Power Distribution Block, Type PDB, 600 VAC, 350 A, 2 Poles, 2 Primary Connections/Pole, 2 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 10 kA Short Circuit Current Rating, Aluminum, TiN Plated, Black, 3-13/32 in L x 4 in W x 2-5/8 in H
QTY
Add to Wishlist
  • Features
Rated for copper or aluminum conductors;Lay-in primary ports allow feed through of two primary conductors with no need to break the main feeder cable;Valox insulating base provides a high degree of impact resistance with superior insulating qualities
Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
Range taking - provides tapping flexibility over a broad wire range
Electro tin plated provides low contact resistance
Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
Provides low contact resistance
Suitable for use with either copper or aluminum conductors
Ensures reliability
Range taking for reduced inventories and flexibility
3/16 in hex primary, 3/16 in hex secondary
90 deg C temperature rating
(2) box lug primary, (2) box lug secondary
14 to 2/0 AWG primary and secondary wire
Valox® insulating base
UL assigned short circuit current rating
Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
