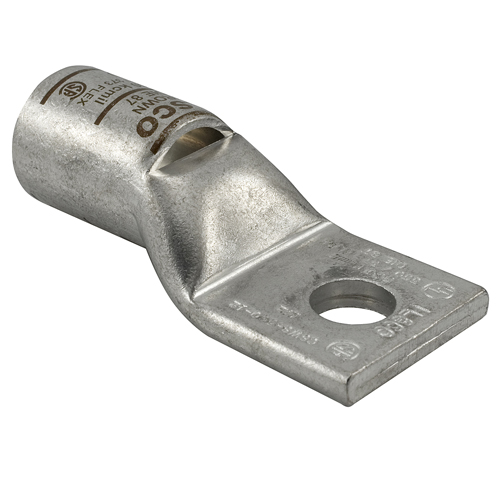

ILSCO® CSWS-250-12 SureCrimp® CSWS 1-Hole Compression Lug, 250 kcmil, 1/2 in Stud, I-62, Copper
Lug Compression Connectors
488470
MFG #: CSWS-250-12
ILSCO®
24.87000
/ ea
ILSCO® SureCrimp® Compression Lug, 1-Hole, Series: CSWS, 250 kcmil Conductor, Die Code: I-62, 600 VAC, 1/2 in Stud, 1.25 in L x 1.088 in W Tongue, 2.844 in Overall Length, Short/Standard, 1.063 in L Barrel, 90 deg C, Copper, Yellow, 0.593 in ID x 0.75 in OD
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Install Instructions URL - ILSCO_ELT_1_Installation_Instructions.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_SLAYO1KVIRQM3NH4.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_XTYGRI0VOU7NSEW9.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/5eVNRB7urhc(Video)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Features
| Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die |
| Manufactured from high strength seamless copper tubing, electro-tin plated |
| Color coded |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| Offers maximum conductivity and excellent crimping characteristics |
| Provides low contact resistance |
| For easy conductor insertion |
| Identifies the proper compression die |
| Application versatility |
| Reduces inventory requirements |
| For grounding and bonding applications |
| Chamfered barrel for visual inspection of proper cable insertion |
| 4/0 flexible alternate conductor size |
| Electro-tin plated |
| Standard barrel length with chamfered entry |
| 1-1/8 in L Strip, 0.562 in Dia Stud Hole |
