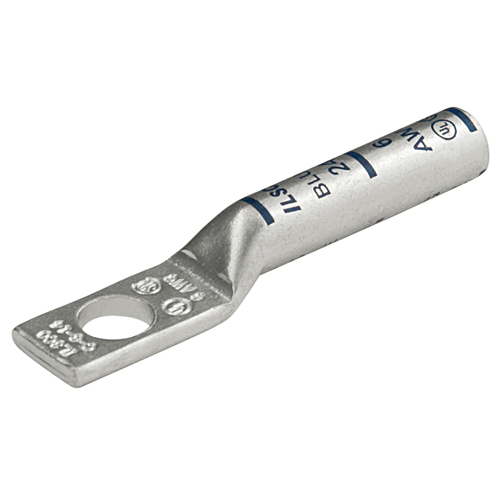

ILSCO® CLNS-2-38 SureCrimp® CLNS 1-Hole Compression Lug Without Sight Hole, 2 AWG, 3/8 in Stud, I-33, Copper

Lug Compression Connectors
820048 MFG #: CLNS-2-38
ILSCO®
13.95000 / ea
10975_7BWTEGDKR6JFVC5M
ILSCO® SureCrimp® Compression Lug, 1-Hole, Series: CLNS, 2 AWG Conductor, Die Code: I-33, 600 VAC, 3/8 in Stud, 0.875 in L x 0.599 in W Tongue, 2.286 in Overall Length, Long, 1-1/8 in L Barrel, 90 deg C, Copper, Brown, 0.312 in ID x 0.421 in OD
QTY
Add to Wishlist
  • Features
Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die
Manufactured from high strength seamless copper tubing, electro-tin plated
Color coded
Offers maximum conductivity and excellent crimping characteristics
Provides low contact resistance
For easy conductor insertion
Identifies the proper compression die
Application versatility
Reduces inventory requirements
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
1 mounting hole
2 AWG solid alternate conductor size
Without sight hole
Electro-tin plated
Long barrel length with chamfered entry
8 AWG to 500 kcmil, 8 to 2 AWG solid UL467 listed for grounding and bonding applications
