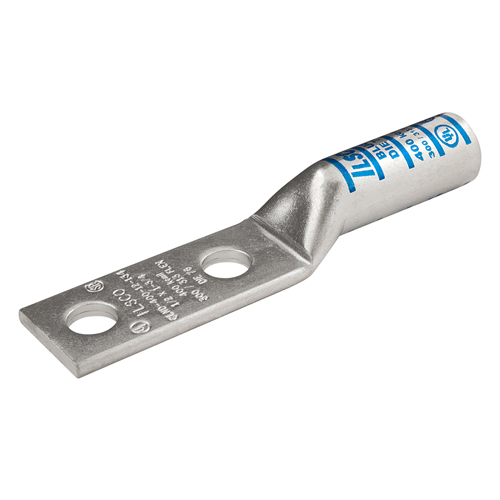

ILSCO® CLND-350-12-134 SureCrimp® CLND 2-Hole Compression Lug Without Sight Hole, 350 kcmil, 1/2 in Stud, I-71, Copper

Lug Compression Connectors
498460 MFG #: CLND-350-12-134
ILSCO®
43.67000 / ea
10975_M0ZRH8NSU9Q7Y43D
ILSCO® SureCrimp® Compression Lug, 2-Hole, Series: CLND, 350 kcmil Conductor, Die Code: I-71, 600 VAC, 1/2 in Stud, 3 in L x 1.291 in W Tongue, 5.623 in Overall Length, Long, 2 in L Barrel, 90 deg C, Copper, Red, 0.703 in ID x 0.89 in OD
QTY
Add to Wishlist
  • Features
Electro-tin plated for corrosion resistance;Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used;UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility;UL467 Listed 500 kcmil - 8 Str, 8 Sol - 2 Sol for grounding and bonding applications;Direct burial 500 kcmil - 10;Chamfered entry for ease of conductor insertion;Color coded ink marking signifies key details including correct die
Manufactured from high strength seamless copper tubing, electro-tin plated
Color coded
Offers maximum conductivity and excellent crimping characteristics
Provides low contact resistance
For easy conductor insertion
Identifies the proper compression die
Application versatility
Reduces inventory requirements
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
250 I, K, M flexible 262.2 DLO alternate conductor size
3/0 AWG to 350 kcmil expanded conductor size
Without sight hole
Electro-tin plated
Long barrel length with chamfered entry
