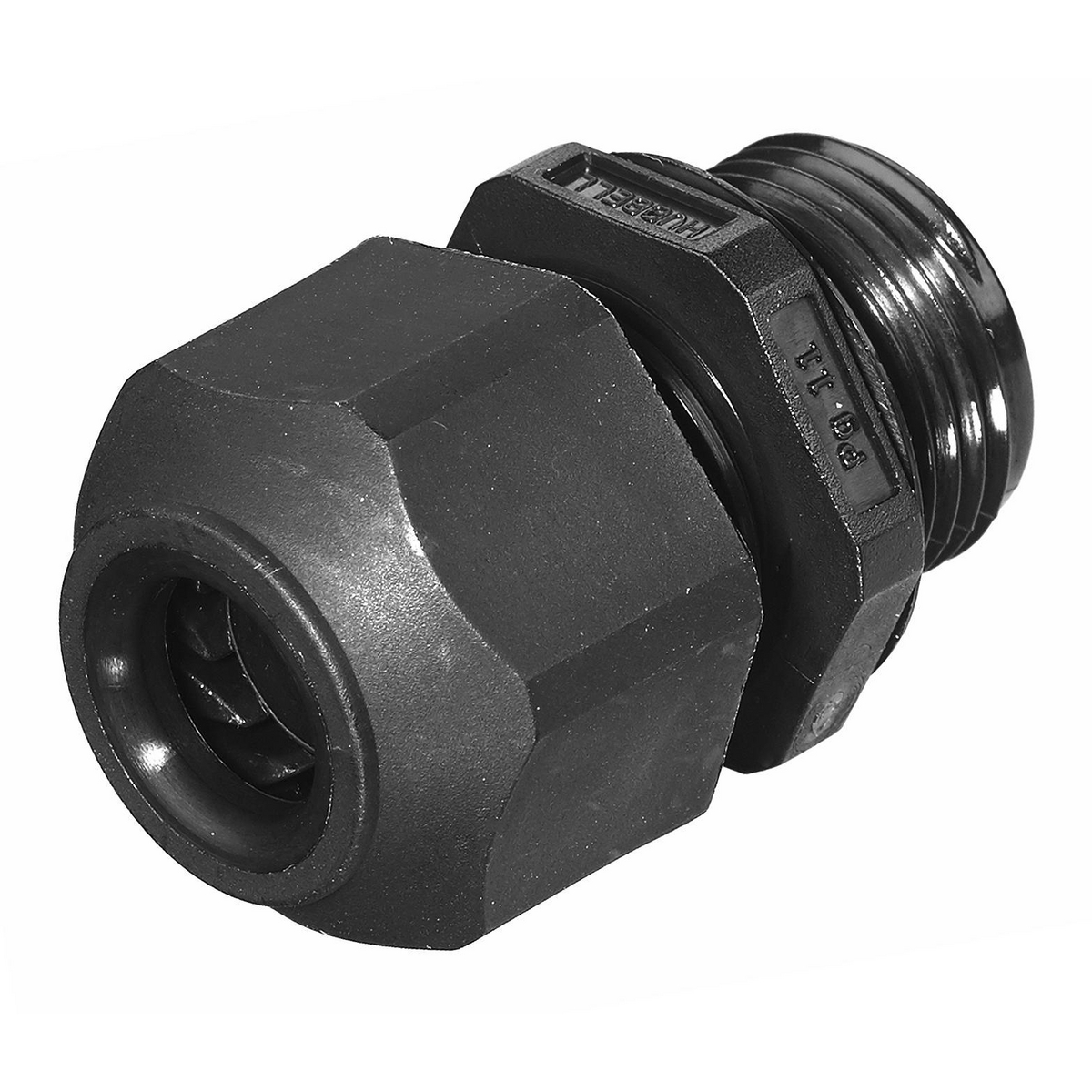

Hubbell Wiring Device-Kellems SECP11BA Flexible Cord Connector, PG11 Trade, 0.23 to 0.4 in Cable Openings, Nylon, Smooth
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems SECP11BA Flexible Cord Connector, PG11 Trade, 0.23 to 0.4 in Cable Openings, Nylon, Smooth
SKU225013
MFGR #SECP11BA
Your Cost: $3.00/ea
Hubbell's multi-hole connectors offer several NPT sizes with a variety of openings to be used in any application where multi-conductor cords and cables are in use. Hubbell's skinned multi-hole connectors feature a field modifiable design with the holes skinned over to allow only the holes that are needed to be un-skinned and utilized. Nine hole and thirteen hole versions with 5.5MM openings accommodate most solar panel installations. Nine hole connectors are utilized in four string applications and thirteen hole connectors are utilized in six string applications with the extra hole being utilized for a ground wire. Multi-hole cord connectors can be used in numerous applications in addition to solar including industrial equipment, medical equipment, motors & generators, pumps, control panels, hydraulic lifts, scientific and other instruments, and robotics.
Hubbell's multi-hole connectors offer several NPT sizes with a variety of openings to be used in any application where multi-conductor cords and cables are in use. Hubbell's skinned multi-hole connectors feature a field modifiable design with the holes skinned over to allow only the holes that are needed to be un-skinned and utilized. Nine hole and thirteen hole versions with 5.5MM openings accommodate most solar panel installations. Nine hole connectors are utilized in four string applications and thirteen hole connectors are utilized in six string applications with the extra hole being utilized for a ground wire. Multi-hole cord connectors can be used in numerous applications in addition to solar including industrial equipment, medical equipment, motors & generators, pumps, control panels, hydraulic lifts, scientific and other instruments, and robotics.
Application Straight Male Connector ARRA Compliant C Buy American Compliant C Catalog Number SECP11BA Color Black Conductor Range 0.23-0.40 in (5.8-10.0 mm) Connection Type Straight Male Country of Origin US Currency USD Dimensions 0.94 in Dia x 1.48 in L Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.1000 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909989 Height 0.92 in Height [Metric] 2.3368 cm Length 1.50 in Length [Metric] 3.8100 cm Mounting Locknut or Tapped Opening NEMA Rating IP66 Number Of Conductors Single Returnable Y Size PG11 Standard UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantIP66 RatedUL 514BCSA Certified Sub Brand Kellems Wire Management Temperature Rating Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C) °F Type Connector UNSPSC 39121431 UPC 11 78358501829 UPC 12 783585018294 Width 0.92 in Width [Metric] 2.3368 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 0.23 to 0.4 in Dia Finish Smooth Material Non-Metallic Trade Size PG11 Straight Male Connector Standard Product Connector body is a 1-piece design with machined threads Provide effective pullout protection in a lightweight design Ideal for any application where weight, conductivity or corrosion may be an issue Cord grips are made of nylon construction with TPE sealing glands that resist salt water, weak acids, gasoline, alcohol, oil, grease and common solvents UV-resistant nylon IP68 degree of protection per DIN 40050 up to 70 psi (5 bar) Polyamide material Neoprene sealing grommet
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male Connector |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SECP11BA |
| Color | Black |
| Conductor Range | 0.23-0.40 in (5.8-10.0 mm) |
| Connection Type | Straight Male |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 0.94 in Dia x 1.48 in L |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1000 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909989 |
| Height | 0.92 in |
| Height [Metric] | 2.3368 cm |
| Length | 1.50 in |
| Length [Metric] | 3.8100 cm |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | IP66 |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | PG11 |
| Standard | UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantIP66 RatedUL 514BCSA Certified |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C) °F |
| Type | Connector |
| UNSPSC | 39121431 |
| UPC 11 | 78358501829 |
| UPC 12 | 783585018294 |
| Width | 0.92 in |
| Width [Metric] | 2.3368 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 0.23 to 0.4 in Dia |
| Finish | Smooth |
| Material | Non-Metallic |
| Trade Size | PG11 |
| Straight Male Connector |
| Standard Product |
| Connector body is a 1-piece design with machined threads |
| Provide effective pullout protection in a lightweight design |
| Ideal for any application where weight, conductivity or corrosion may be an issue |
| Cord grips are made of nylon construction with TPE sealing glands that resist salt water, weak acids, gasoline, alcohol, oil, grease and common solvents |
| UV-resistant nylon |
| IP68 degree of protection per DIN 40050 up to 70 psi (5 bar) |
| Polyamide material |
| Neoprene sealing grommet |
