Hubbell Wiring Device-Kellems Hubbellock® HBL21415B Grounding Locking Plug, 600 VAC/250 VDC, 20/30 A, 3 Poles, 4 Wires, Black/White
Locking Plugs
26235
MFG #: HBL21415B
Hubbell Wiring Device-Kellems
223.74000
/ ea

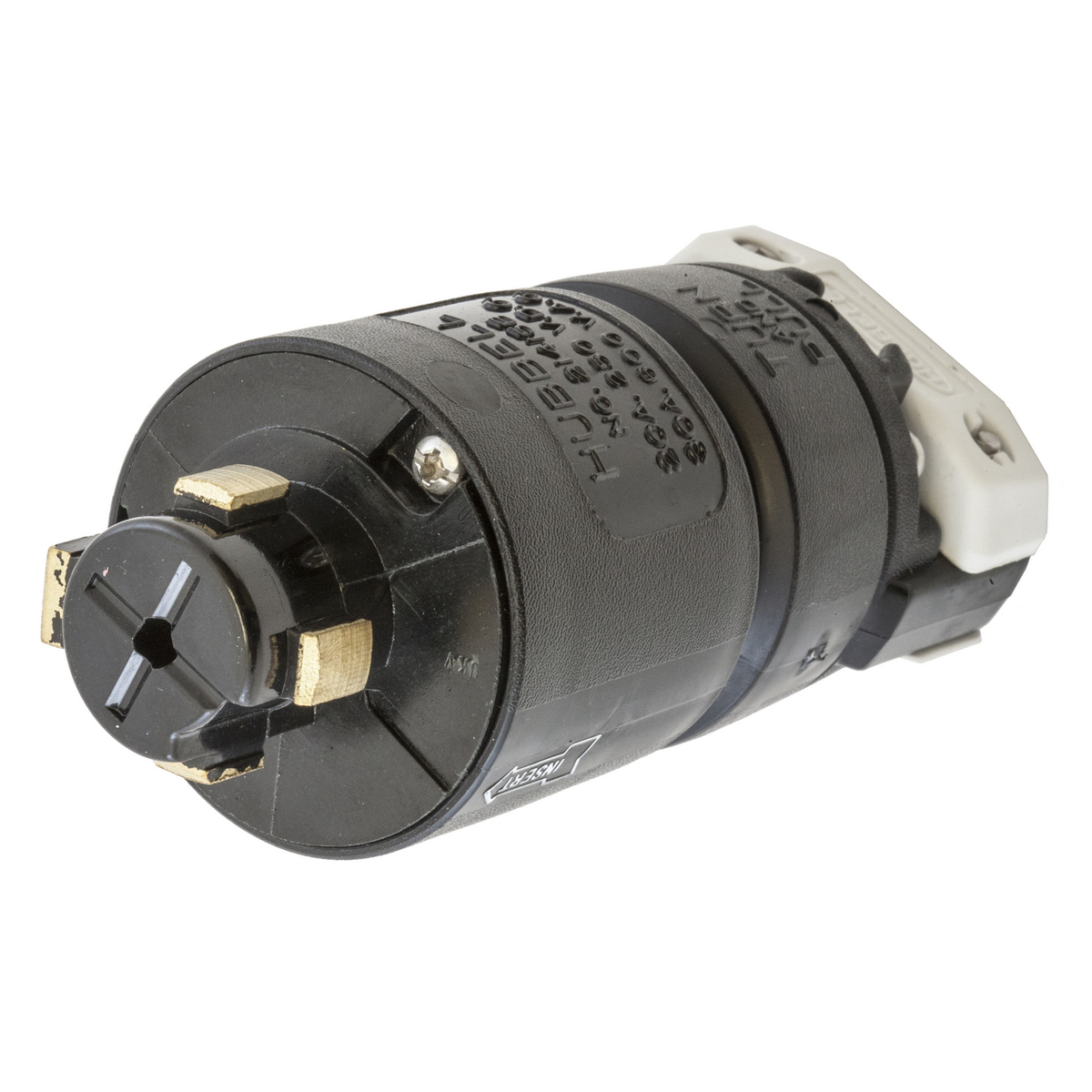

Wiring Device-Kellems Hubbellock® Locking Plug, Grounding, 600 VAC/250 VDC, 20/30 A, 3 Poles, 4 Wires, Industrial Grade, IP30 Enclosure, 0.63 to 1.2 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2-21/64 in Dia x 5-5/8 in L
- Full Eng Drawing URL - Wiring_Device_Kellems_HBL21CM415B_Technical_Drawing.pdf(Full Eng Drawing URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_T4ZC7X83AM15OGRY.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1157_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537667903826.pdf(Install Instructions URL)
- Line Drawing URL - 11456_2XQ6MSRKPC3E71UH.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL21415B_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_IX46T13UPW2CHS80.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL21415B_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1537667162445.pdf(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Auto Ejects Improperly Made Connection |
| Withstands 2000 VAC dielectric voltage |
| 10 to 8 AWG wire |
| 14 to 12 AWG stranded copper wire terminal accommodation |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| Black thermoset blade holder |
| Glass reinforced PET cord clamp |
| Brass blade |
| Copper lug terminals with steel set screws terminal screw, ground screw |
| Stainless steel, multi-drive cord clamp screw, body holding screw |
| 10 to 6 AWG stranded copper wire terminal accommodation |
| Insulated non-metallic housing enhances safety and abuse resistance |
| Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability |
| 3-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust |
| Molded-in male contacts are resistant to damage and provide a consistently positive connection |
| Indoor dry unless protected by additional means |
