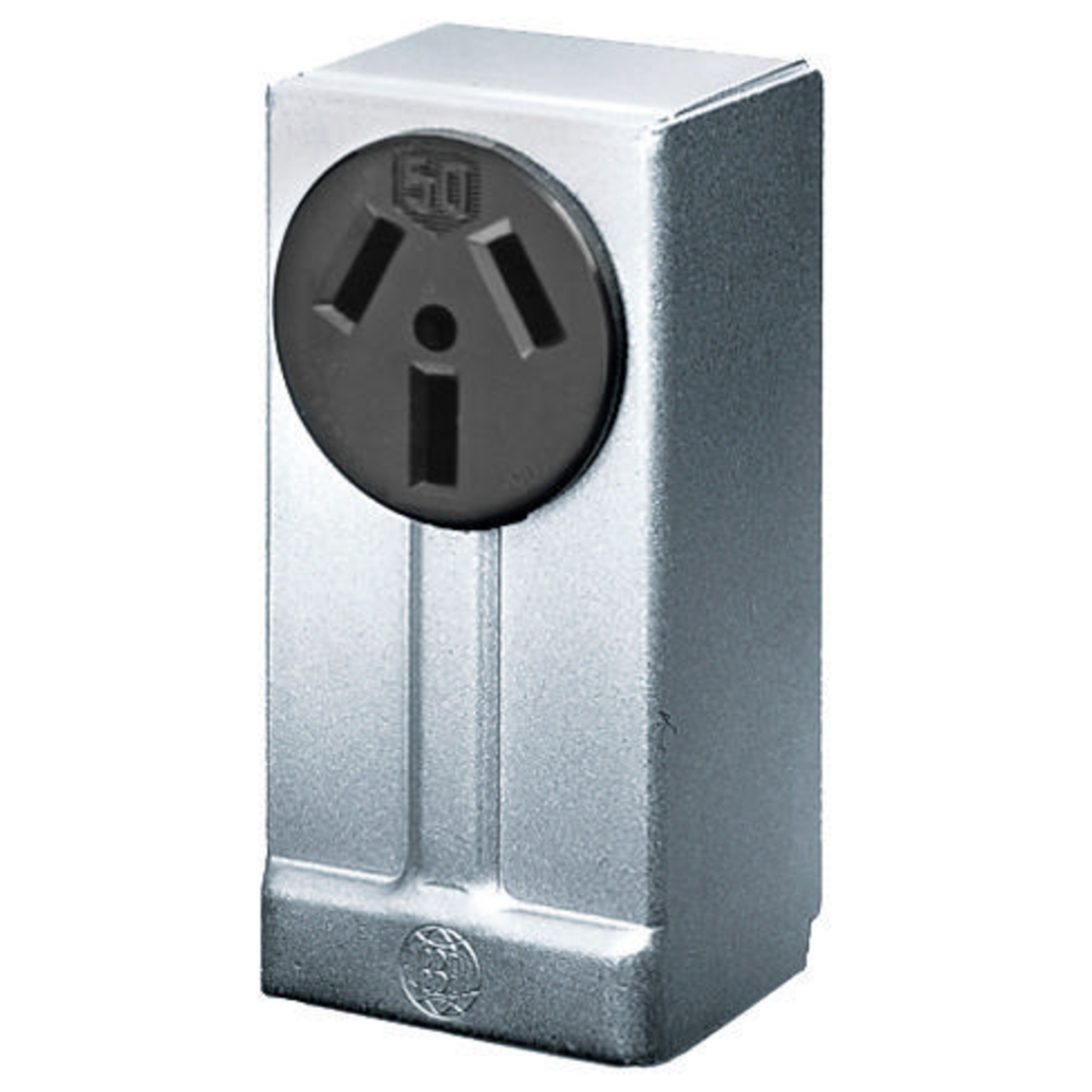

Hubbell Wiring Device-Kellems HBL7940 Heavy Duty Non-Grounding Standard Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 3 Wires, Black
Straight Blade Receptacles
26208
MFG #: HBL7940
Hubbell Wiring Device-Kellems
76.24000
/ ea
Wiring Device-Kellems Straight Blade Receptacle, Heavy Duty Non-Grounding Standard, 125/250 VAC, 50 A, 3 hp, 3 Poles, 3 Wires, NEMA 10-50R, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, Black, 5-1/16 in H x 2-1/2 in W x 2-1/16 in D
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_R7T5DSAI4JH3K8NU.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_WDYTENCBU9J0X1IR.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_GDY90C5JLK6VUEWM.pdf(Spec Sheet URL)
- Video - https://youtube.com/embed/Z4dcyMvsUzU(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty |
| Standard |
| Sequenced contacts assure protection |
| Catalog number, ratings and certifications molded in face |
| One piece design power and ground contacts |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% |
| Terminals identified in accordance with UL 498 (brass, white, green) |
| Certified for current interrupting at full rated current |
| Withstands 2000 VAC minimum dielectric voltage |
| 12 to 4 AWG copper stranded or solid conductor only terminal accommodation |
| Steel-zinc plated mounting screw |
| Ratings are a permanent part of the device |
| UL 94V-0 flammability |
| Phenolic top and base |
| 0.075 in brass power contacts |
| 0.062 in plated steel mounting strap |
| Copper box terminals |
| Sequenced contacts assure protection |
| One piece design power and ground contacts |
