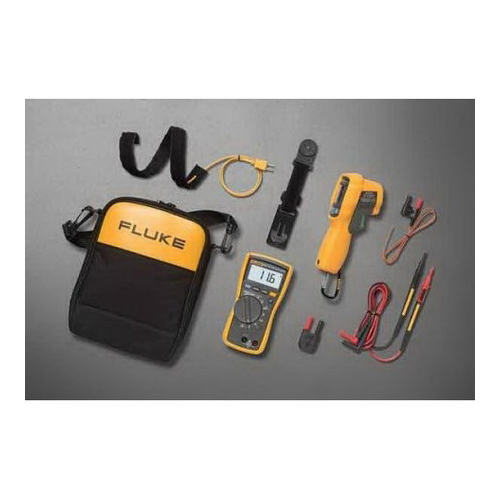

Fluke® FLUKE-116/62-MAX+ HVAC Technician's Combo Kit, 600 VAC Max Voltage, 6000 Count Display, 9 VDC Alkaline Battery
Multimeters
884348
MFG #: FLUKE-116/62-MAX+
Fluke®
359.99000
/ ea
For the complete solution to HVAC troubleshooting the extra value-packed HVAC Technician's Combo kit, provides the ability to troubleshoot and solve problems more efficiently by providing all the needed accessories an HVAC professional would need in a compact carry case.
- Brochure URL - 11095_BRO_3272127-6116-eng-c-w.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_2f1edfd2e686ce7b17ddd7170d25fd5e4bec9a6b1f4e27263ecb3a4c82e711ab.pdf(Catalog URL)
- http://www.fluke.com(Seller Home Page URL)
- Install Instructions URL - ID-INS-FLUKE-116_62-MAX_.pdf(Install Instructions URL)
- Owners Manual URL - 11095_2HYTEL57N930CIRM.pdf(Owners Manual URL)
- Spec Sheet URL - 11095_UZOT6JSAHGFDB2C4.pdf(Spec Sheet URL)
- Video - http://download.fluke.com/demo-IAD/116_demo.html(Video)
- Warranty URL - 11095_WAR_FLUKE_Warranties_2014.pdf(Warranty URL)
- Features
| Built-in thermometer for HVAC applications; Microamps to test flame sensors; Low input impedance helps prevent false readings due to ghost voltage; Work in poorly lit areas with the Large white LED backlit display; True-rms voltage and current for accurate measurements on non-linear loads; Measures 10 AMP directly (20 AMP overload for 30 S) without a current clamp; Resistance, continuity, frequency and capacitance; Record signal fluctuations using Minimum/Maximum/Average and elapsed time stamps; Easy to use with one hand; Hands free operation with optional magnetic hanger; Measure -30 to 650 DEG C; Extremely accurate: up to 1 DEG C or 1 PCT of reaching; IP54 rating for water resistance and dust proof allow you to work rain or shine and even in the most dirty or dusty industrial sites; Strong enough to withstand a 3m drop; Small and lightweight; Dual lasers |
| Continuity - 600 ohm range, 1 ohm resolution, beeper on < 20 ohm, Off > 250 ohm, detects opens or shorts of 500 us or longer |
| Continuity - 600 ohm range, 1 ohm resolution, beeper on 250 ohm, detects opens or shorts of 500 us or longerDiode test - 2.000 V/0.001 V range/resolution, 0.9% + 2 accuracy |
| Capacitance - 1000 nF/1 nF, 10.00 uF/0.01 uF, 100.0 uF/0.1 uF, 9999 uF/1 uF, 100 uF to 1000 uF range/resolution, 1.9% + 2 accuracy, > 1000 uF range/resolution, 5% + 20% accuracy |
| LoZ capacitance - 1 nF to 500 uF range, 10% + 2 typical accuracy |
| Temperature2 (Type K thermocouple) -40 to 400 deg C/0.1 deg C range/resolution, 1% + 102 accuracy, -40 to 752 deg F/0.2 deg F range/resolution, 1% + 182 accuracy |
| 99.99 Hz/0.01 Hz, 999.99 Hz/0.1 Hz, 9.999 Hz/0.001 Hz, 50.00 Hz/0.01 Hz, 0.1% + 2 Hz range/resolution, 0.1% + 2 accuracy (V or A input)2 |
| Battery with 400 hrs life for 116 HVAC multimeter |
| -30 to 650 deg C temperature |
| <300 ms (95% of reading) response time for 62 MAX+ infrared thermometer |
