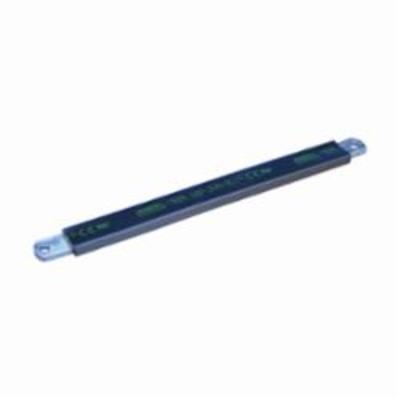

Erico® IBSB100230 558521 Braid IBSB 100-230-8-10
Bus-Conductors
PDW~10707868
MFG #: 558521
nVent ERIFLEX
0.00000
/ ea
The IBSB/IBSBR features integral pre-punched palms that are ready to connect out of the box. There are no lugs to purchase or install, making connections simpler and faster and eliminating faulty connections due to vibration or fatigue. The insulation is a high-resistance self-extinguishing PVC. IBSB/IBSBR is compatible with all major brand molded case circuit breakers. Contact your Pentair representative to determine the correct size for your application.
- Applications
- Features
| panel; telecom |
| Suitable for all main molded case circuit breakers. Resistant to vibration, improving reliability and performance. Improves assembly flexibility and aesthetics. Quick and easy installation. No additional cutting, stripping, crimping and punching needed. Integral palm without lugs or terminals reduces material and assembly weight. Small wire diameter provides maximum flexibility. RoHS compliant |
| Resistant to vibration, improving reliability and performance |
| Improves assembly flexibility and aesthetics |
| Quick and easy installation |
| No additional cutting, stripping, crimping and punching needed |
| Integral palm without lugs or terminals reduces material and assembly weight |
| Small wire diameter provides maximum flexibility |
| 20 kV/mm dielectric strength |
| UL 94V-0 flammability rating |
| 1000 VAC, 1500 VDC maximum working voltage according to IEC/UL 758 |
| 221 deg F maximum working temperature |
| -58 to 221 deg F maximum operating temperature |
| 0.94 in W x 0.2 in THK conductor |
| 0.51 in overall braid thick |
