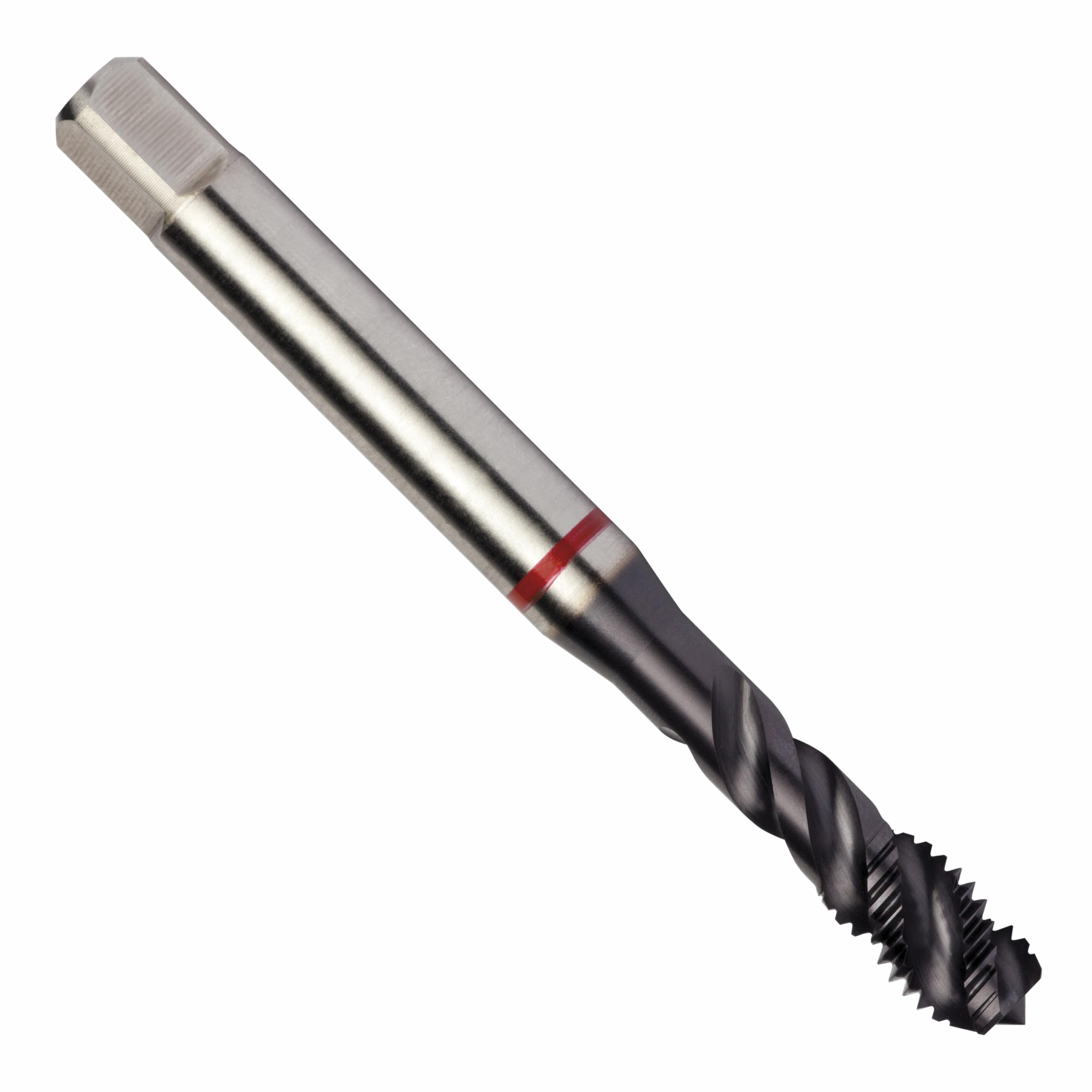

Dormer 7350457 E626 High Performance Spiral Flute Machine Tap With Red Shark, Right Hand Cutting, M8x1.25 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiAlN Coated, HSS-E
Spiral Flute Taps
1424612
MFG #: 7350457
Dormer Pramet
50.23000
/ ea
Dormer Spiral Flute Machine Tap, High Performance, Series: E626, Measurement System: Metric, Coarse Thread Standard, M8x1.25 Thread, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiAlN Coated, Class of Fit: 6H, Right Hand Cutting Direction, 13 mm Thread Length, 90 mm Overall Length, 0.318 in Shank Diameter, Right Hand Flute Direction, Medium Alloy Steel Material Application
- Features
| The TiAlN top coating combined with a special 45 deg flute geometry and an additional edge treatment provides excellent performance and consistency in high production applications |
| The back taper built into this design further facilitates chip evacuation and reduces torque when the tap reverses |
