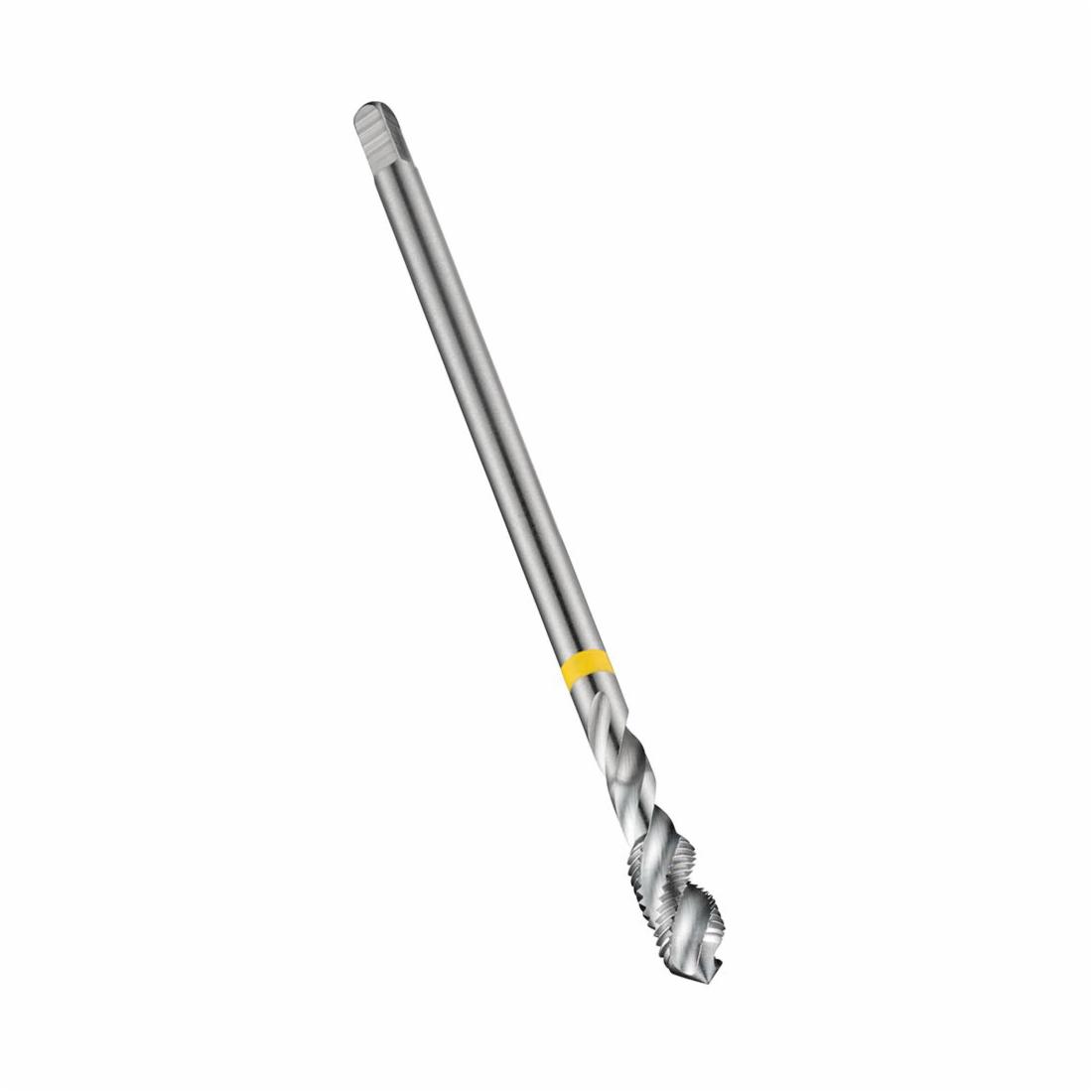

Dormer 6290631 E300 Spiral Flute Machine Tap With Yellow Shark, Right Hand Cutting, M5x0.5 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Hard Chrome Coated, HSS-E
Spiral Flute Taps
1422484
MFG #: 6290631
Dormer Pramet
48.21000
/ ea
Dormer Spiral Flute Machine Tap, Series: E300, Measurement System: Metric, Fine, M5x0.5, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, Hard Chrome Coated, Class of Fit: 6H, Right Hand Cutting, 7.5 mm Thread Length, 70 mm Overall Length, 3.5 mm Shank Dia, Right Hand Flute Direction, Alloy Steel, Carbon Steels, Copper and Brass Material Application
- Features
| Increased tool life as a result of an optimum combination of material and geometry, which gives low material adhesion |
| The tap geometry provides adequate flute space resulting in negligible swarf congestion and therefore a continuous production process |
