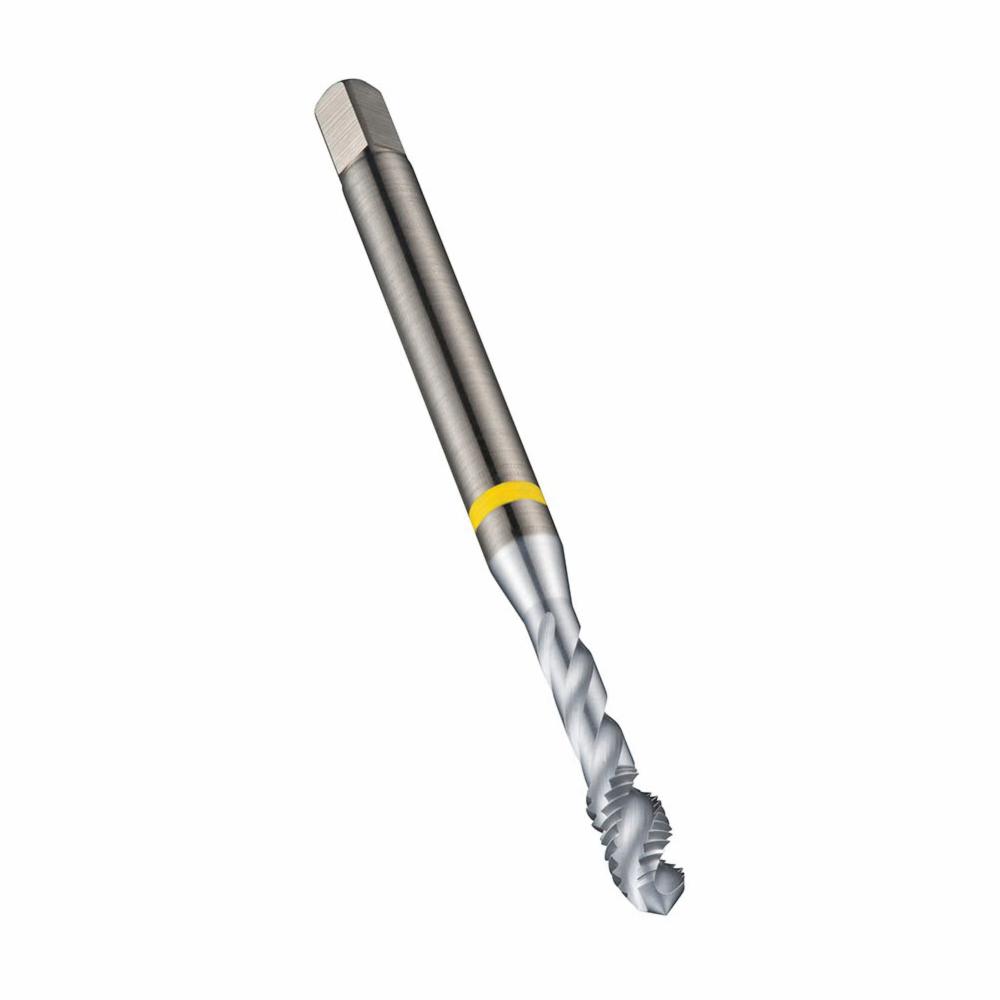

Dormer 6290577 E298 Spiral Flute Machine Tap, Right Hand Cutting, M20x2.5 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, Hard Chrome Coated, HSS-E
Spiral Flute Taps
1422456
MFG #: 6290577
Dormer Pramet
118.18000
/ ea
Dormer Spiral Flute Machine Tap, Series: E298, Measurement System: Metric, Coarse, M20x2.5, Semi-Bottoming Chamfer, 4 Flutes, HSS-E, Hard Chrome Coated, Class of Fit: 6H, Right Hand Cutting, 25 mm Thread Length, 140 mm Overall Length, 16 mm Shank Dia, Right Hand Flute Direction, Alloy Steel, Carbon Steels, Copper and Brass Material Application
- Features
| Increased tool life as a result of an optimum combination of material and geometry, which gives low material adhesion |
| The tap geometry provides adequate flute space resulting in negligible swarf congestion and therefore a continuous production process |
